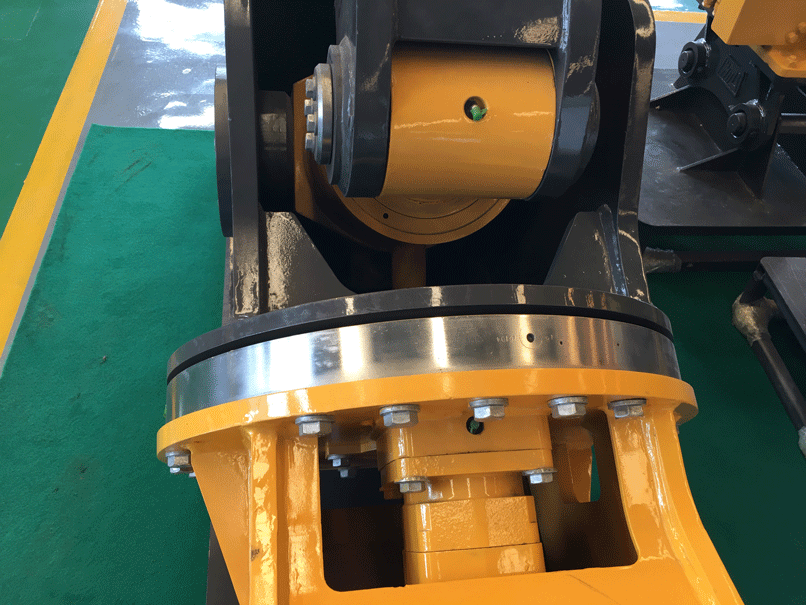

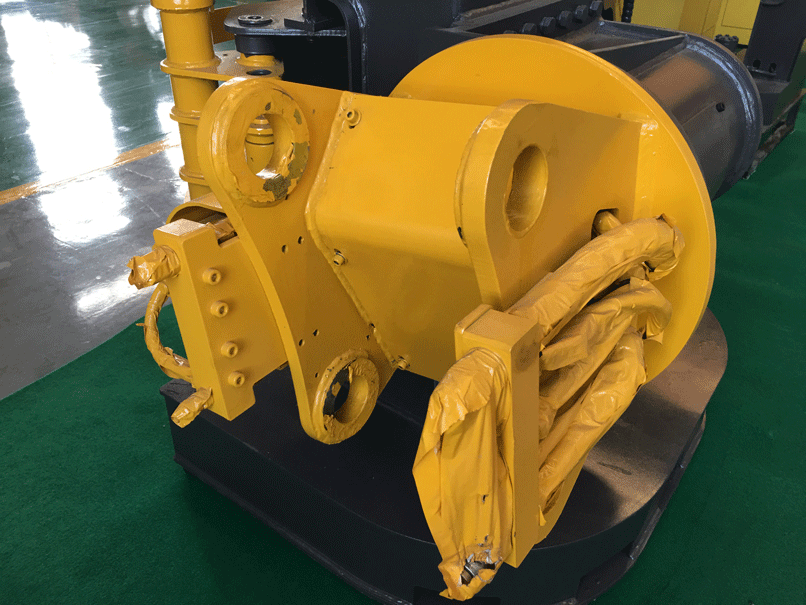

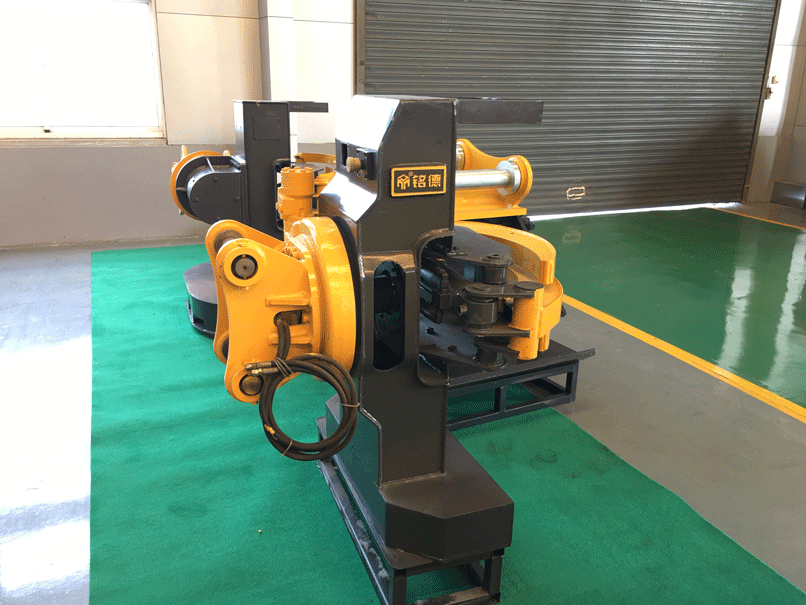

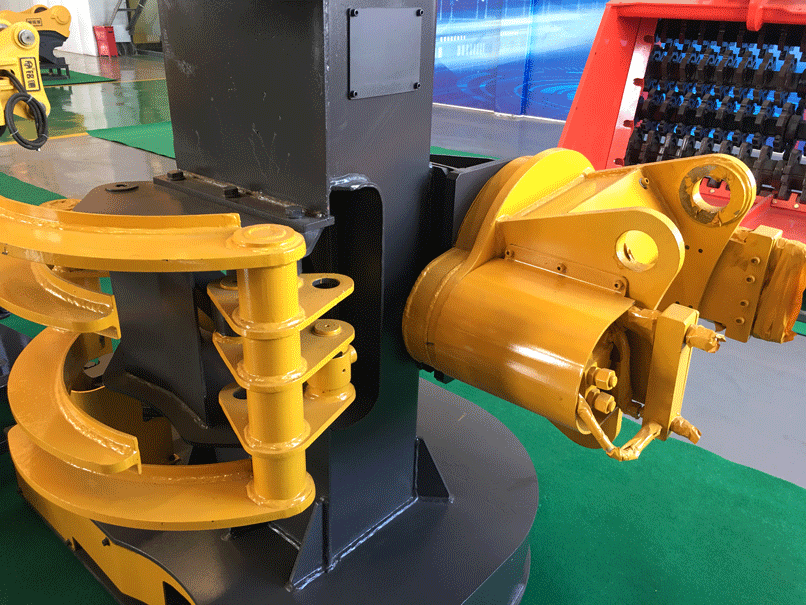

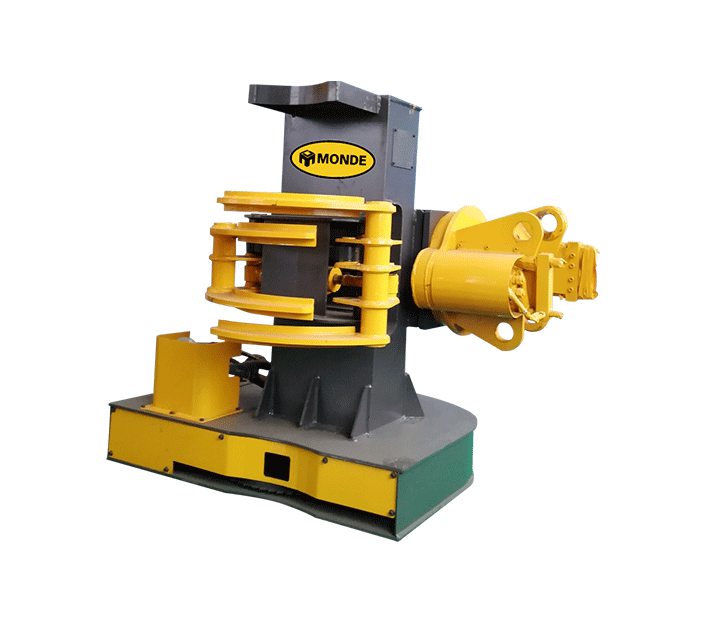

Hydraulic Electric Felling Machine
Hydraulic electric felling machine is used for forest harvesting, timber production, twiging, etc., as well as wood construction, railway sleeper sawing and so on. Hydraulic felling machine is especially suitable for pruning in high-risk areas. The product has many advantages such as high power, low vibration, high sawing efficiency and low cost of logging.
PARAMETER
| Model | MD-FM-06 | MD-FM-13 | MD-FM-20 |
|---|---|---|---|
| Rotational Flow（L/Min） | 30-40 | 40-60 | 60-80 |
| Cutting Flow（L/Min） | 20-30 | 20-30 | 20-30 |
| Weight Capacity（kg） | 200-300 | 350-400 | 500-650 |
| Cutting Diameter（mm） | 220 | 300 | 600 |
| Weight（kg） | 260 | 470 | 560 |

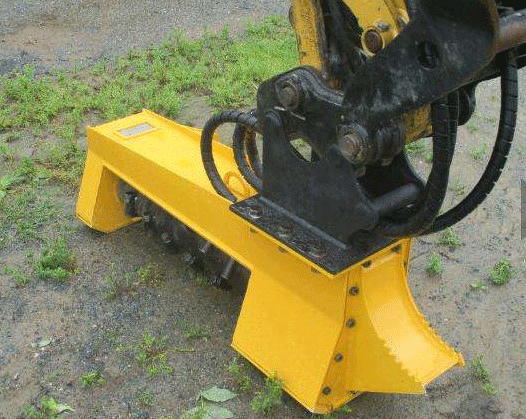

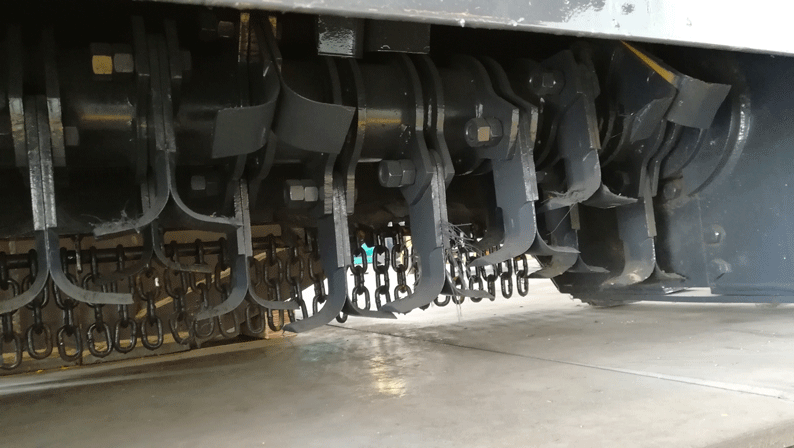

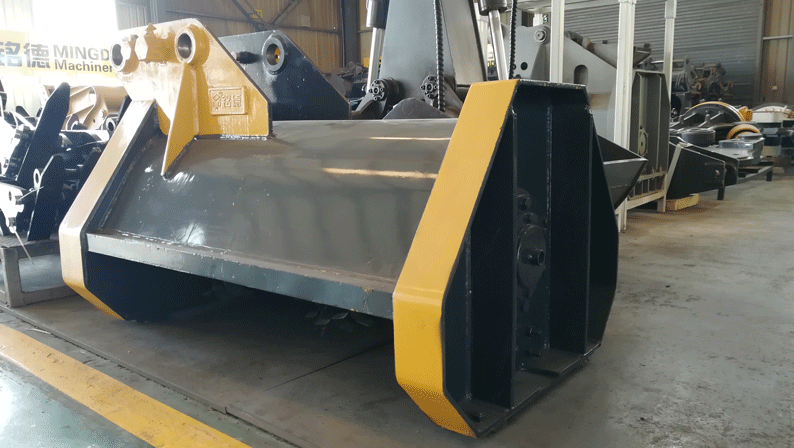

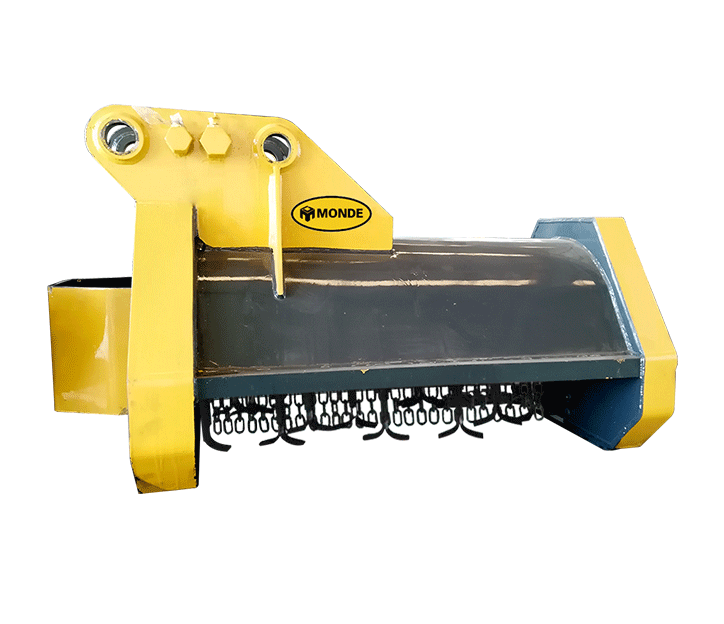

Grass Brush Cutter
Brush cutter is a machine tool used to cut vegetation of large barren hills. The blade is mounted on the output pin of the hydraulic motor and it cuts by using hydraulic motor's high-speed rotation. It can save weeding workers' working time and reduce a lot of human resources.
PARAMETER
| Model | BCB-70 | BCB-120 | BCB-200 |
|---|---|---|---|
| Apply to (ton) | 6-8 | 12-16 | 18-23 |
| Blade Qty | 50 | 70 | 116 |
| Working Pressure (bar) | 200 | 200 | 200 |
| Oil Flow (L/min) | 50 | 80 | 120 |
| Weight（kg） | 520 | 950 | 1150 |

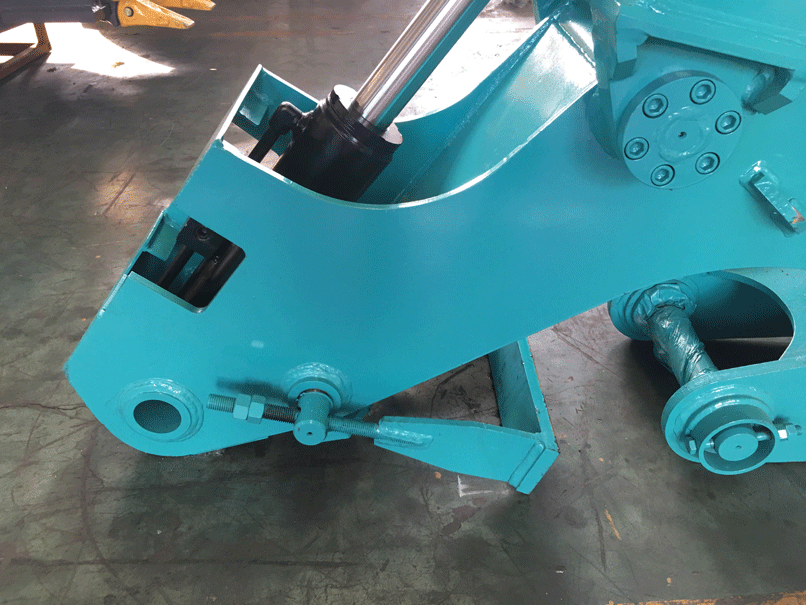

Wood Saw Cutter
This type of wood saw cutter is mechanical structure, the movable saw blade is using the power of arm cylinder. The sharp cutting power with our own special saw design. The drain line is not necessary.
PARAMETER
| Model | FWV-70 | FWV-120 | FWV-200 |
|---|---|---|---|
| Excavator weight(t) | 6-7 | 12-13 | 20-22 |
| Cutter blade | Saw blade | Saw blade | Saw blade |
| Max.cutting dia.Dia.(mm) | 410 | 820 | 1000 |
| Max.cutting Dia（mm） | 300 | 500 | 600 |
| Dimensions (mm) | 1500*390*980 | 2170*480*1450 | 2500*620*1650 |
| Weight(kg) | 900 | 1220 | 1950 |

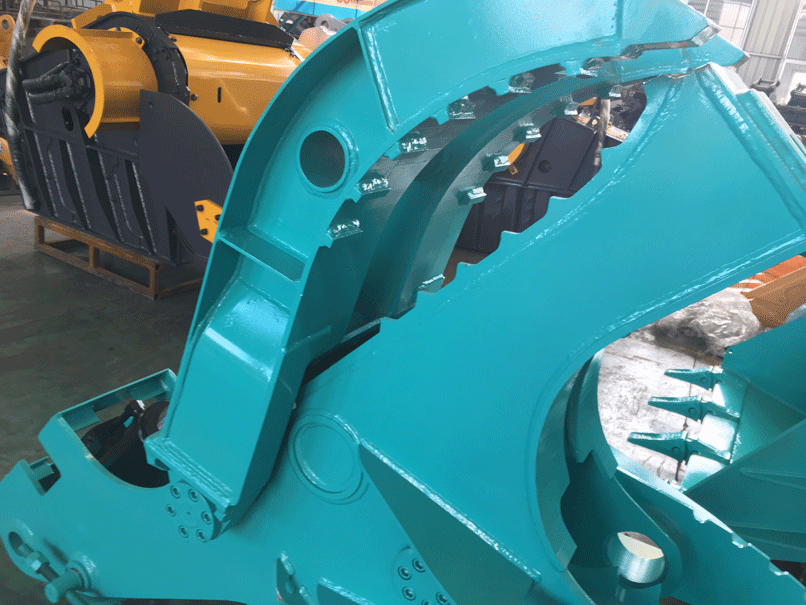

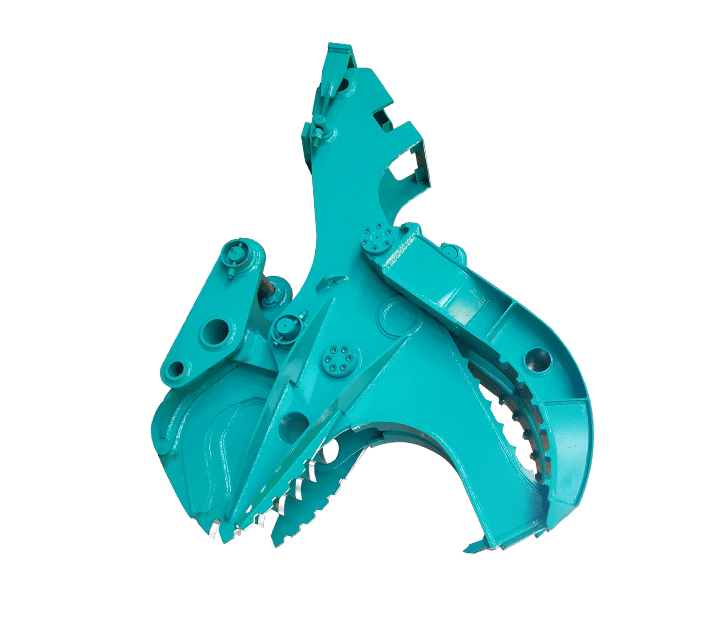

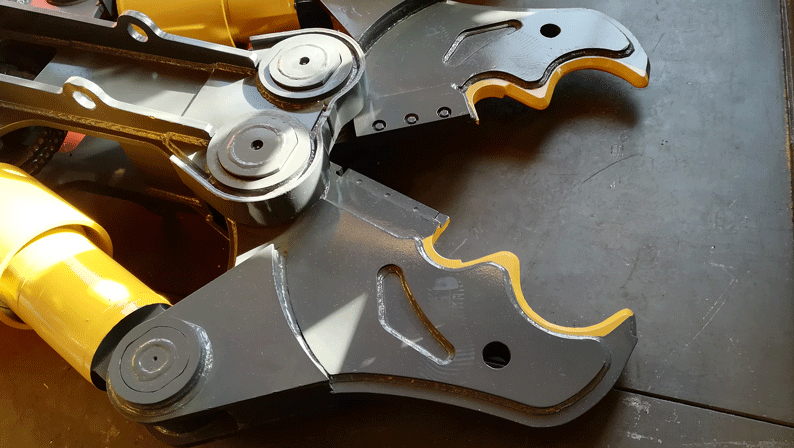

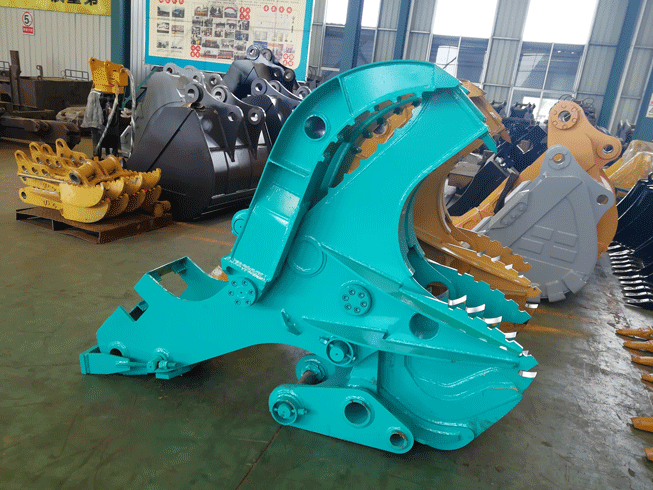

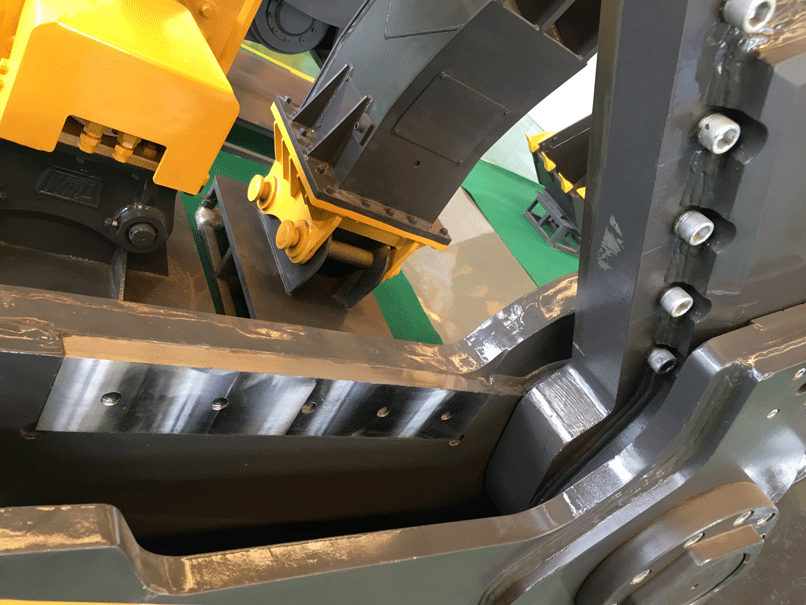

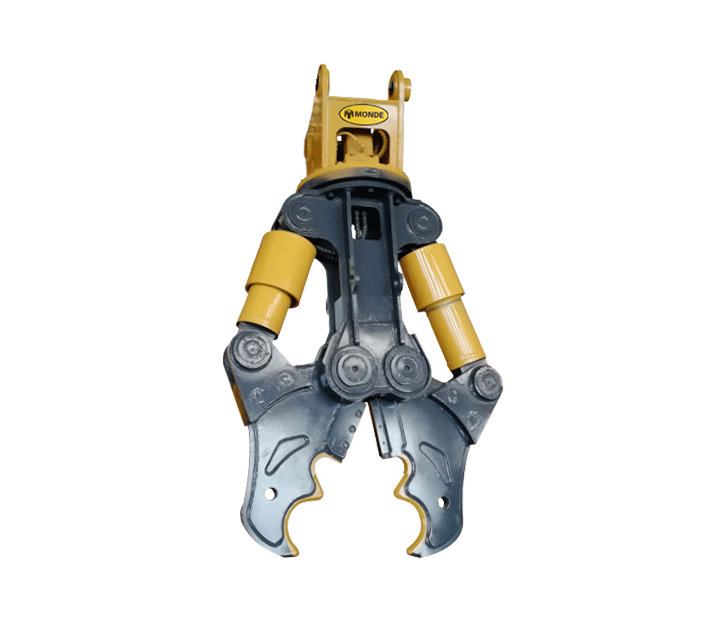

Hydraulic Steel Shear
Excavator multi-functional hydraulic cutter is the ideal tool in the rescue process. Double oil cylinder body is equipped with a variety of different structure of jaw, realizing the separation, shearing, removing in the rescue process, making the rescue higher working efficiency. Double oil cylinder is with large opening design, so the work is easy,convenient, flexible operation, and ensure powerful motivation of equipment. Work efficiency is two to three times of broken hammer, fully mechanized, safe and saving time.
PARAMETER
| Model | MCR08 | MCR12 | MCR20 |
|---|---|---|---|
| Excavator Weight(Ton) | 6-8 | 12-15 | 18-25 |
| WorkingPress(Mpa) | 24 | 31 | 31 |
| Opening Size A(mm) | 650 | 780 | 1000 |
| Blade Length B(mm) | 125 | 240 | 240 |
| Front Crushing Force(KN) | 430 | 725 | 1080 |
| Middle Crushing Force(KN) | 670 | 1120 | 1610 |
| Weight(kg) | 630 | 1480 | 2100 |
