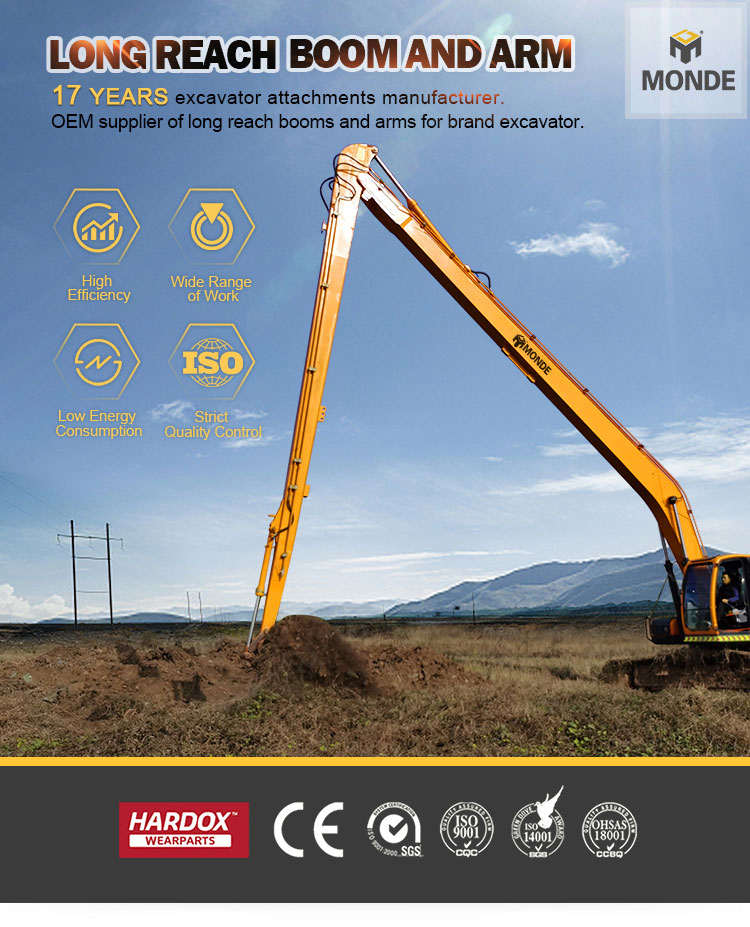

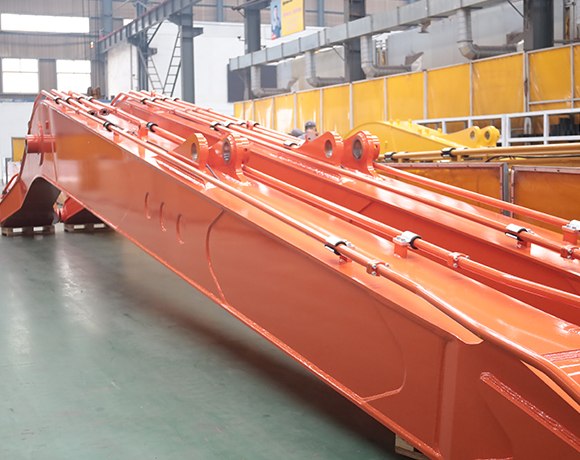

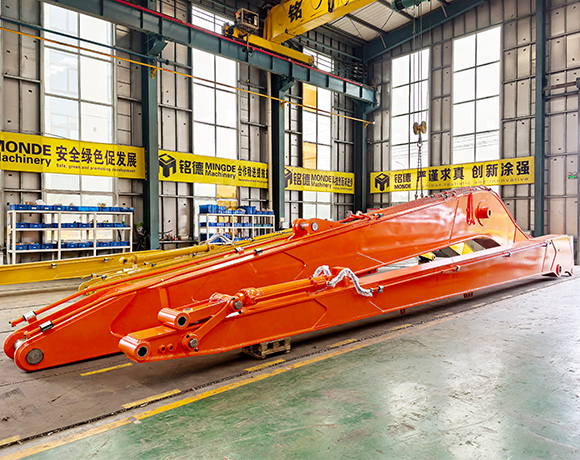

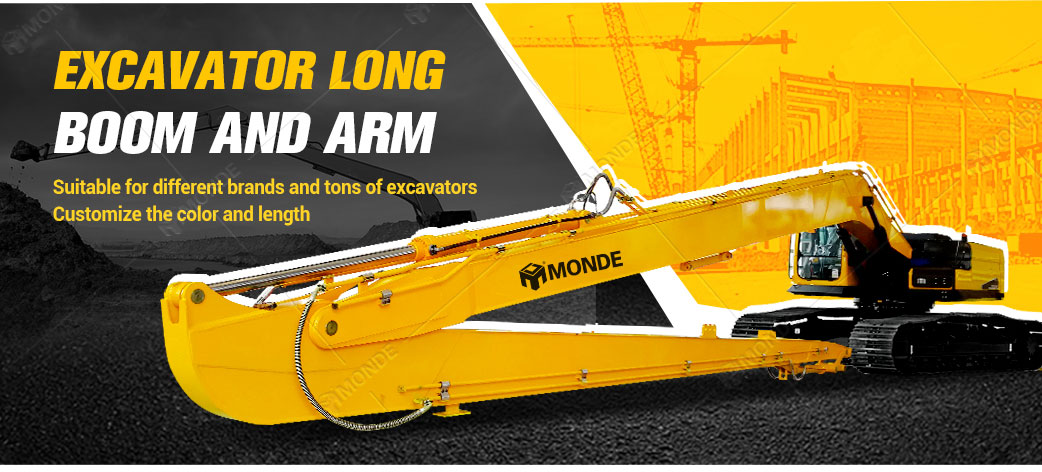

The long reach arm extends the scope of work. According to the working conditions and requirements of excavator, it is the front end of the working device of excavator. The long reach arm require special design and manufacture.

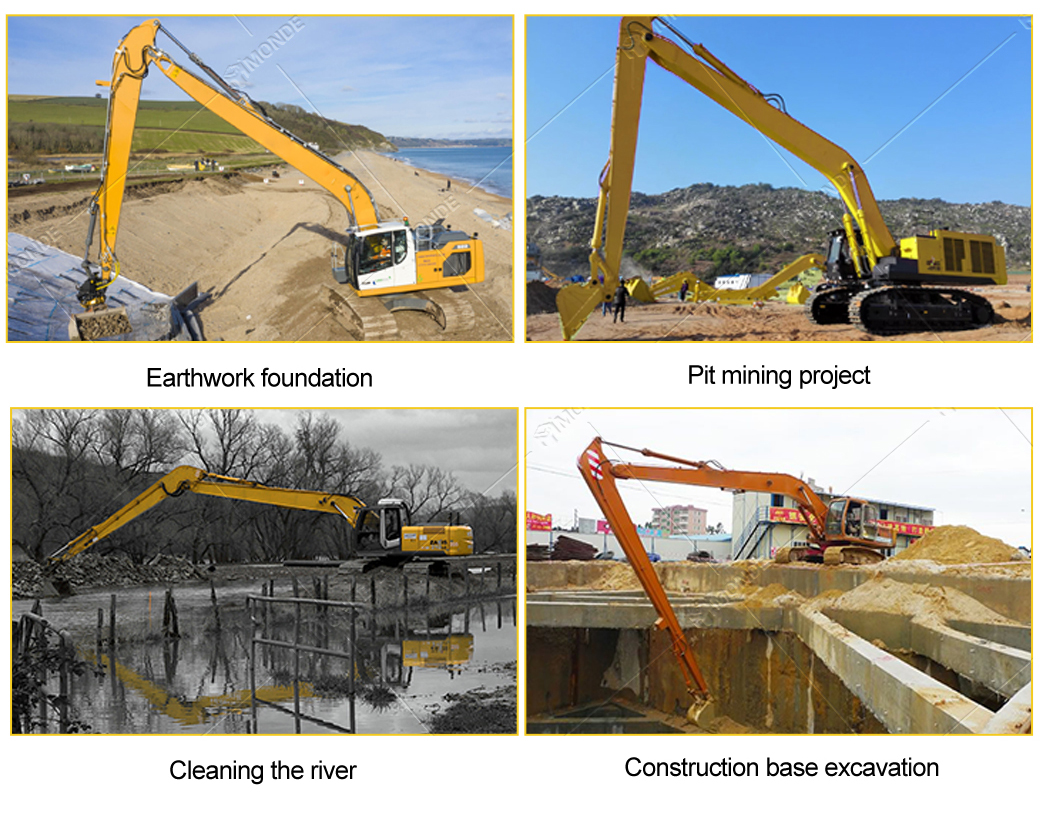

Long reach boom have large work range,very popular in dredging river,dredging port,port construction,subway construction.High efficiency and supply security for excavator drivers.We can customize all kinds of long reach boom according to customer requirements.
|

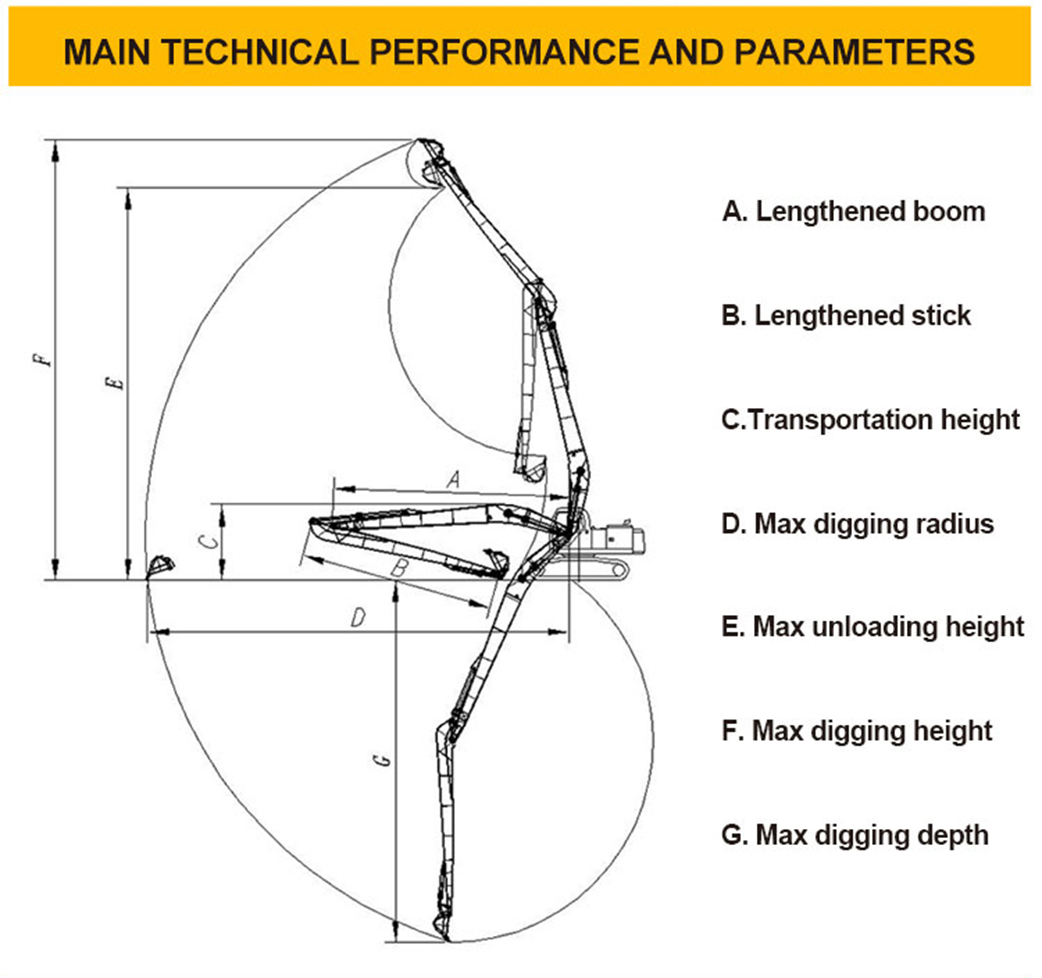

Excavator Weight(T) |
12 |
20 |
25 |
30 |
35 |
40 |
45 |
|
Long Reach Arm Length(m) |
10 |
18 |
20 |
22 |
24 |
26 |
28 |
|
Long Reach Arm Weight(T) |
2.8 |
4.8 |
5.6 |
6.6 |
7.5 |
8.5 |
9.5 |
|
Bucket Capacity(m³) |
0.2 |
0.4 |
0.45 |
0.5 |
0.6 |
0.7 |
0.8 |
|
Max. Digging Height(m) |
7 |
15 |
17 |
19 |
21 |
23 |
25 |
|
Max. Digging Radius(m) |
9 |
17 |
19 |
21 |
23 |
25 |
27 |
|
Max. Digging Depth (m) |
6 |
14 |
16 |
18 |
20 |
22 |
24 |
|
Transport Height(m) |
2.2 |
3 |
3.2 |
3.2 |
3.2 |
3.4 |
3.4 |
|
Max. Length(m) |
15 |
20 |
22 |
24 |
26 |
28 |
28 |

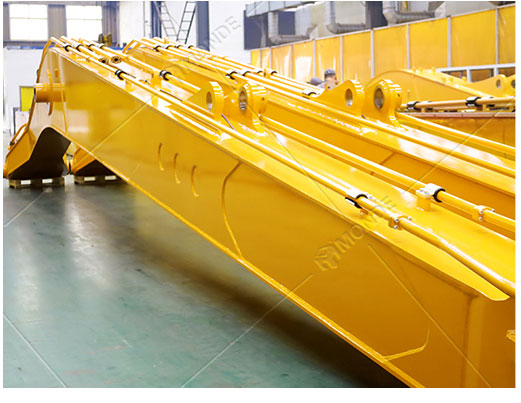

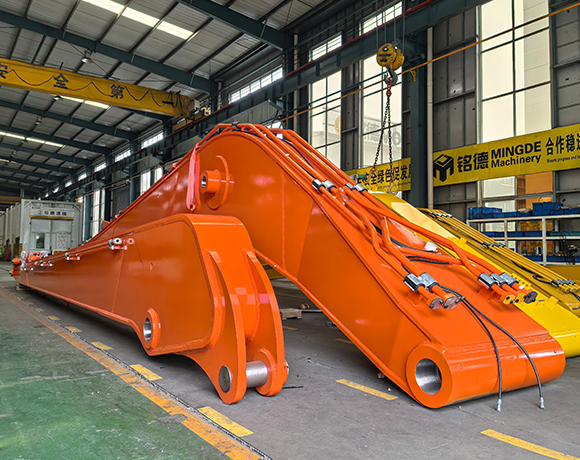

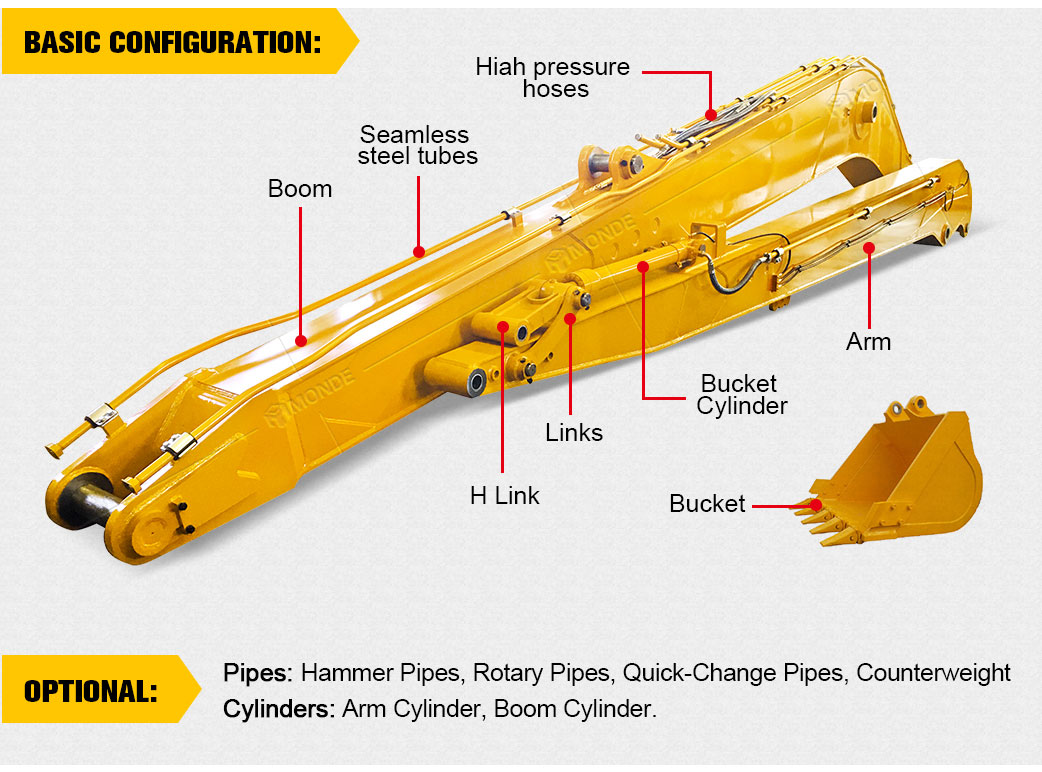

The main body is made of high toughness steel plate, which has strong toughness and tolerance and is not afraid of high load work condition.

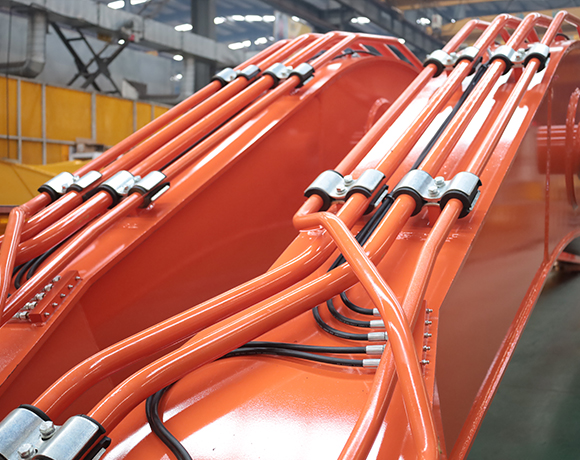

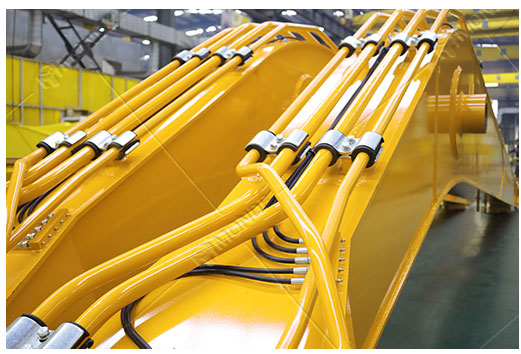

The metal hydraulic pipeline adopts pickling and phosphating process to avoid impurities and rust, and protect the main pump from damage. The hydraulic hose is Continental brand, with high reliability
Painting process: one layer of primer and two layers of finish paint, both of which are VOLVO original paint, with high smoothness and strong adhesion.

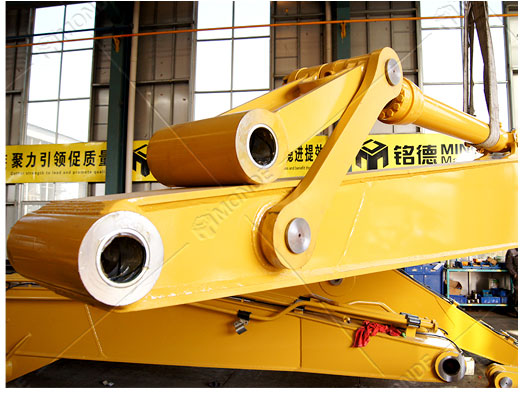

Gantry head to head boring machine is used for boring, which is processed in an integrated way, and the concentricity of the hole diameter shall be 100% consistent
Standard boom Arm: Suitable for routine earthwork, excavation, loading, and handling tasks. Its simple design and easy operation make it ideal for everyday construction needs.
Long Reach boom Arm : Ideal for scenarios requiring a wider operating range, such as building demolition, river dredging, trenching, and deep pit operations. Its extended reach allows it to reach areas difficult to reach with a standard boom.

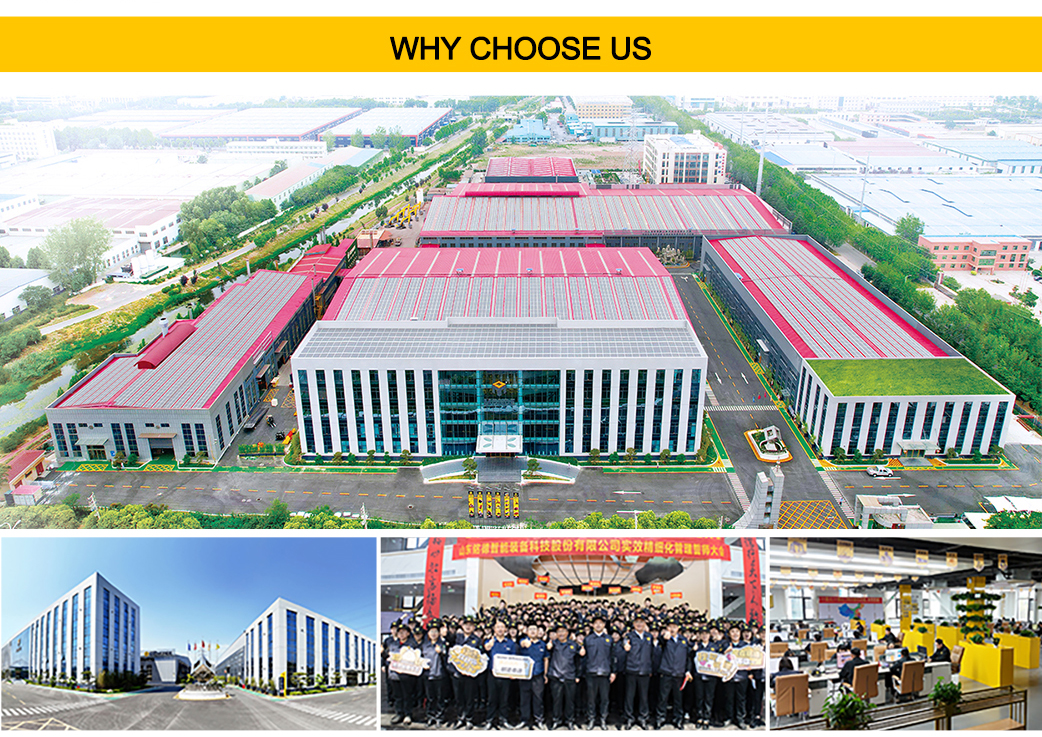

Shandong Mingde Machinery Co., Ltd. is a world-renowned enterprise engaged in the research and development, manufacturing, sales and after-sales service of multi-functional attachments, mobile crushers, intelligent robots and other series of products.
Mingde currently has 500+ employees, 60000+ sq meters workshop, 70+ engineers and 200+ equipments with different functions, and 30+ testing and inspection equipment. biggest dealer of SSAB for HARDOX plate in China, also we are HARDOX WEARPARTS global processing center.

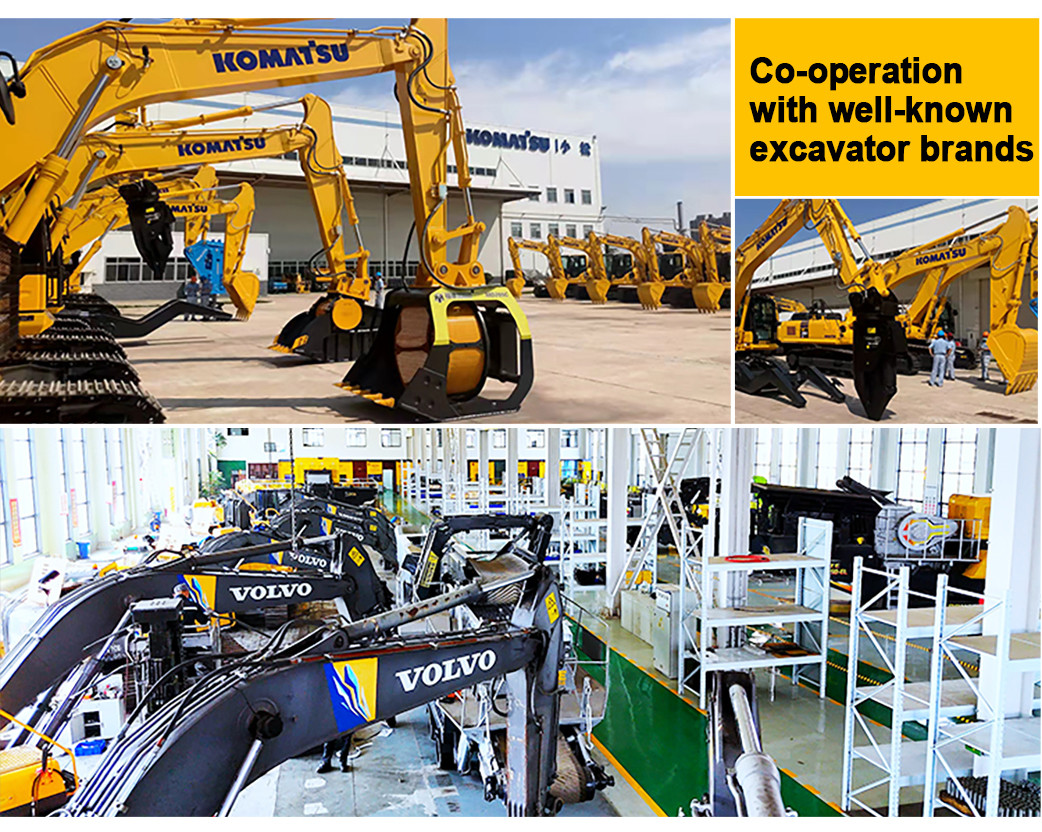

Through years of stable development, Mingde has passed ISO9001 international quality system certification, SGS testing certification, CE European safety certification, ISO14001 environmental management system certification and international welding technology certification. Monde has successfully established close cooperation with several well-know machine equipment companies, such as SHANTUI, Komatsu, JCB, HBXG, SCMMC, etc and supply OEM service for them.

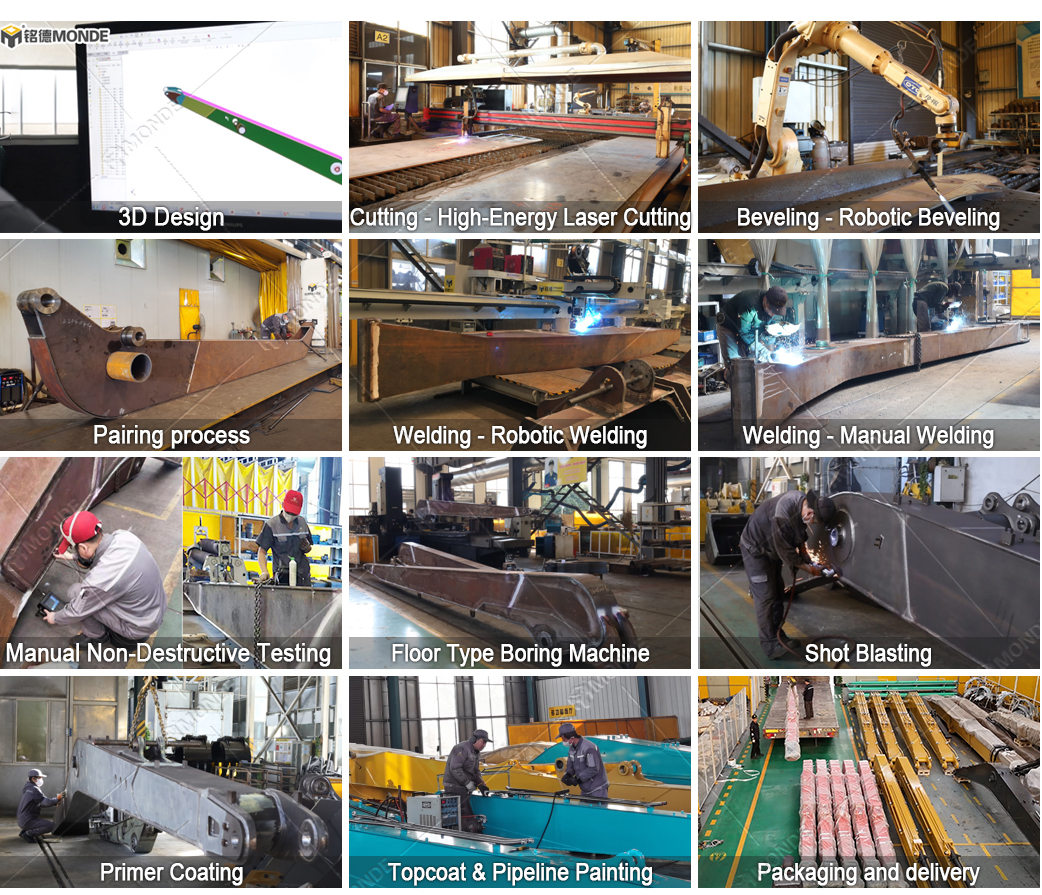

Top-class equipments make best products
We choose the excellent equipment to produce the top-quality products. We also choose the advanced numerical control equipment for cutting steel. After internal boring, welding, blasting, painting and precisely detecting, the quality of our products can be promised.
Packaging & Delivery：
1.We pack the products by simple pallet or case which is seaworthy.
2.Fast delivery time:5-7 days for small quantity, and 20-30 days for container quantity.
3.We have a team specialized in packing and loading container, they have rich experience,and can load the max quantity products,which can help customer save the ocean freight.
