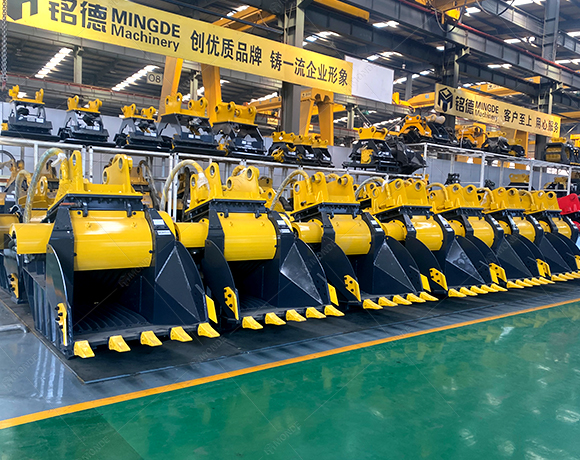

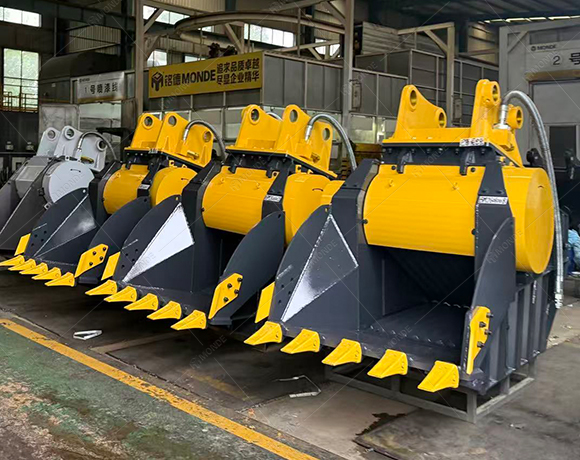

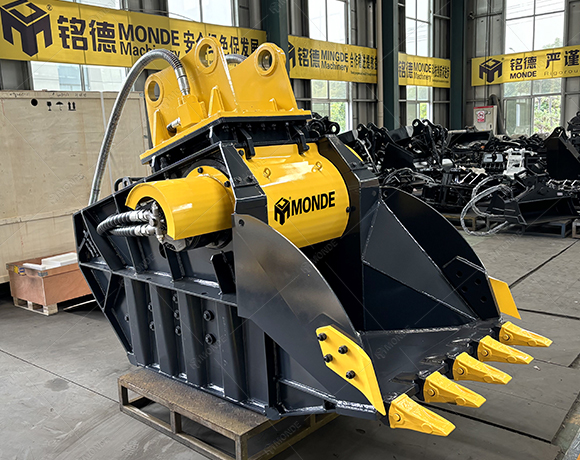

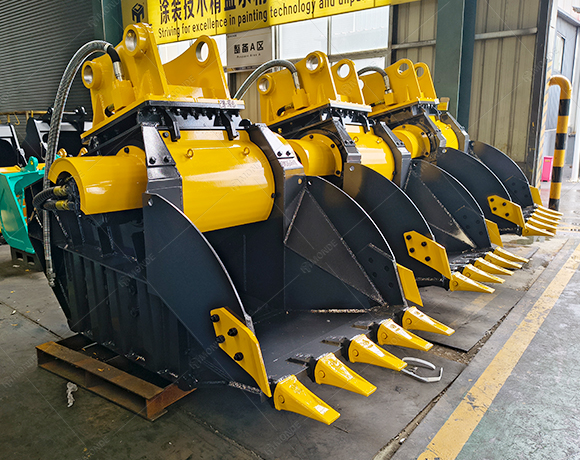

Excavator attachments Monde Crusher Bucket

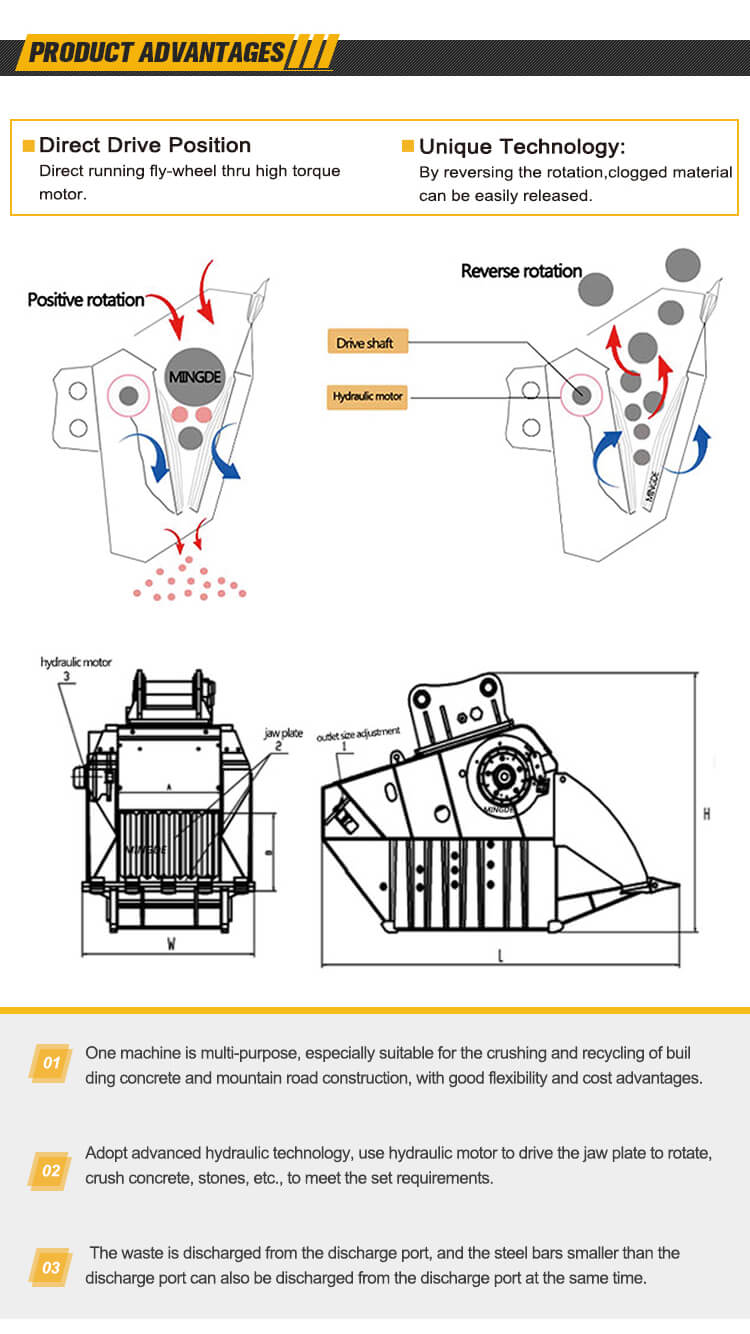

Crusher Bucket is usually installed on the excavator, using the hydraulic power of the excavator, relying on the strong pinch of the upper and lower jaws to crush the stone, which can crush the stone and construction waste, and can quickly separate the steel bars in the concrete, which can reduce the handling of concrete blocks on the project site. The transportation and other engineering costs caused by the crushed stone have prompted the concrete waste to be directly recycled and reused on the construction site.
|
Main Technical Parameters |
||||||
|
Model |
PSD-70 |
PSD-120 |
PSD-200 |
PSD-300 |
PSD-670 |
PSD-870 |
|
Excavator weight (t) |
6-10 |
10-18 |
18-30 |
30-45 |
50-70 |
75-90 |
|
Bucket capacity (m³) |
0.2 |
0.45 |
0.74 |
1.15 |
1.47 |
2.23 |
|
Oil Flow (l/min) |
45-50 |
90-110 |
180-230 |
190-240 |
340-360 |
440-460 |
|
Feeding Size (mm) |
330*450 |
400*550 |
500*700 |
500*1000 |
670*1150 |
670*1315 |
|
Whole Size (mm) |
1585*900*1110 |
1895*1090*1420 |
2525*1325*1798 |
2353*1665*1576 |
2882*2105*2137 |
2882*2270*2137 |
|
Overall Weight (kg) |
800 |
1300 |
3350 |
4220 |
6850 |
7668 |
Shandong Mingde Machinery Co., Ltd.
The quality of all products is strictly controlled from processing to delivery.Mingde has passed ISO9001 international quality system certification, SGS testing certification, CE European safety certification, ISO14001 environmental management system certification and international welding technology certification.
Company Profile：
Shandong Mingde Machinery Co., Ltd. is a world-renowned enterprise engaged in the research and development, manufacturing, sales and after-sales service of multi-functional attachments, mobile crushers, intelligent robots and other series of products.
Mingde currently has 500+ employees, 60000+ sq meters workshop, 70+ engineers and 200+ equipments with different functions, and 30+ testing and inspection equipment. biggest dealer of SSAB for HARDOX plate in China, also we are HARDOX WEARPARTS global processing center.
Through years of stable development, Mingde has passed ISO9001 international quality system certification, SGS testing certification, CE European safety certification, ISO14001 environmental management system certification and international welding technology certification. Monde has successfully established close cooperation with several well-know machine equipment companies, such as SHANTUI, Komatsu, JCB, HBXG, SCMMC, etc and supply OEM service for them.
Packaging & Delivery：
1.We pack the products by simple pallet or case which is seaworthy.
2.Fast delivery time:5-7 days for small quantity, and 20-30 days for container quantity.
3.We have a team specialized in packing and loading container, they have rich experience,and can load the max quantity products,which can help customer save the ocean freight.

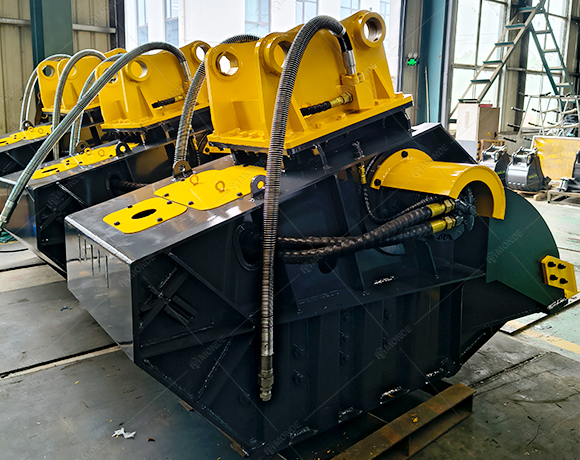

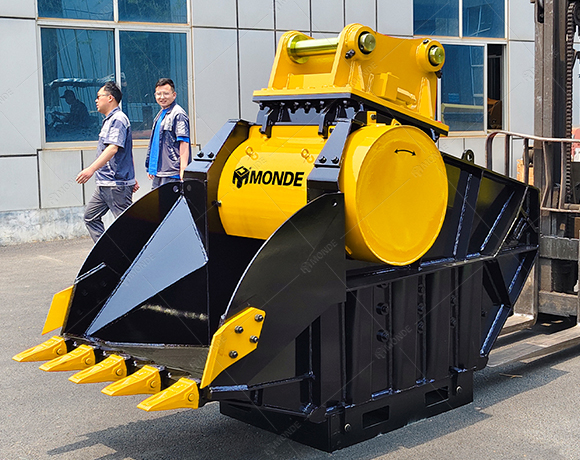

MONDE Crusher Bucket
