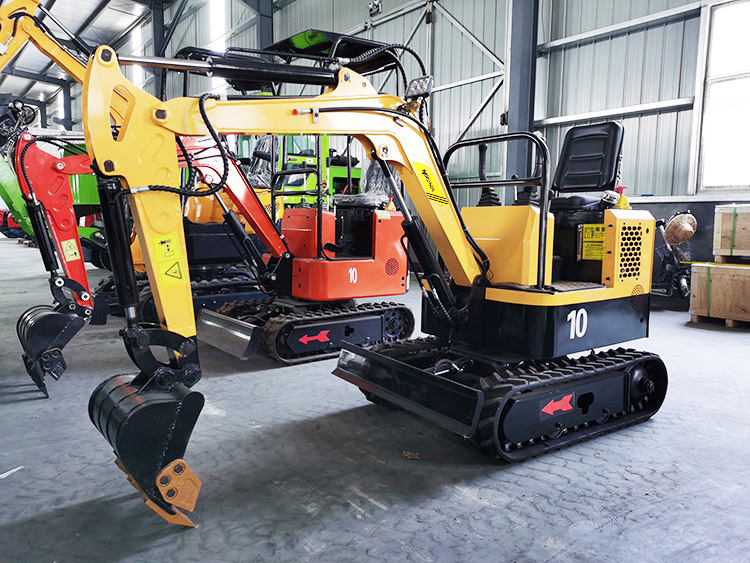

This mini excavator is designed for small project, garden, farmland municipal works etc, also can be used in playground, public park. It is with small engine, simple design, easy to maintain, it's reliable and of user friendly. With multiple functions of digging, grabbing, drilling, bull-dozing, ditch cleaning and rock-breaking.
- PARAMETER
- DRAWINGS/DETAILS/ADVANTAGES
- CONSTRUCTION SITE
| No. | Item | Unit | SD10 | |
| 1 | Weight | kg | 880 | |
| 2 | Bucket type | Backhoe | ||
| 3 | Standard bucket capacity | M3 | 0.025 | |
| 4 | Engine | Model | Changcai192 | |
| 5 | Theoretical oil consumption | L | 0.499 | |
| 6 | Rated speed output power/speed | Kw/r/min | 8.6 | |
| 7 | Torque | N.M/r/min | 43 | |
| 8 | Speed and digging force | Max speed | KM/h | 3.5 |
| 9 | Swing speed | rpm | 12 | |
| 10 | Max. climbing ability | degree | 30 | |
| 11 | Digging force | KN | 11 | |
| 12 | Stick digging force | KN | 8 | |
| 13 | Max traction force | KN | 15 | |
| 14 | Ground pressure | kgf/cm2 | 25 | |
| 15 | Track material | rubber | ||
| 16 | Type of tensioner | Butter cylinder | ||
| 17 | Hydraulic system pressure | MPA | 25 | |
| 18 | Oil flow | L/min | 8 | |
| 19 | Hydraulic and liquid capacit | Pump system | Plunger pump | |
| 20 | Working pressure | MPA | 30 | |
| 21 | Flow | L/min | 8 | |
| 22 | Hydraulic oil tank capacity | L | 12 | |
| 23 | Max. engine oil capacity | L | 1.5 | |
| 24 | Fuel tank capacity | L | 7 | |
| 25 | Dimendions | Unit | ||
| 26 | Track material | mm | 770 | |
| 27 | Total length of track | mm | 1090 | |
| 28 | Min ground clearance | mm | 380 | |
| 29 | Platform end radius of gyration | mm | 733 | |
| 30 | Chassis width | mm | 940 | |
| 31 | Track width | mm | 170 | |
| 32 | Track height | mm | 320 | |
| 33 | Transport length | mm | 2550 | |
| 34 | Total height of excavator | mm | 1330 | |
| 35 | Dimensions | Unit | ||
| 36 | Max.dig radius | mm | 2400 | |
| 37 | Max dig depth | mm | 1400 | |
| 38 | Max. dig height | mm | 2490 | |
| 39 | Max.unload height | mm | 1750 | |
| 40 | Max. vertical digging depth | mm | 1320 | |
| 41 | Min radius of gyration | mm | 1190 | |
| 42 | Max. lifting height of Dozer blade | mm | 325 | |
| 43 | Max. digging depth of bulldozer | mm | 175 | |
| 44 | Boom side swing（L/R） | |||
| 45 |
Main
configuration
|
valve | YIKDE | |
| 46 | Pump | Plunger pump | ||
| 47 | Walk | Domestic | ||
| 48 | ||||
| 49 | Rotary motor | Domestic | ||
| 50 | Operation method | The handle is on the front | ||
