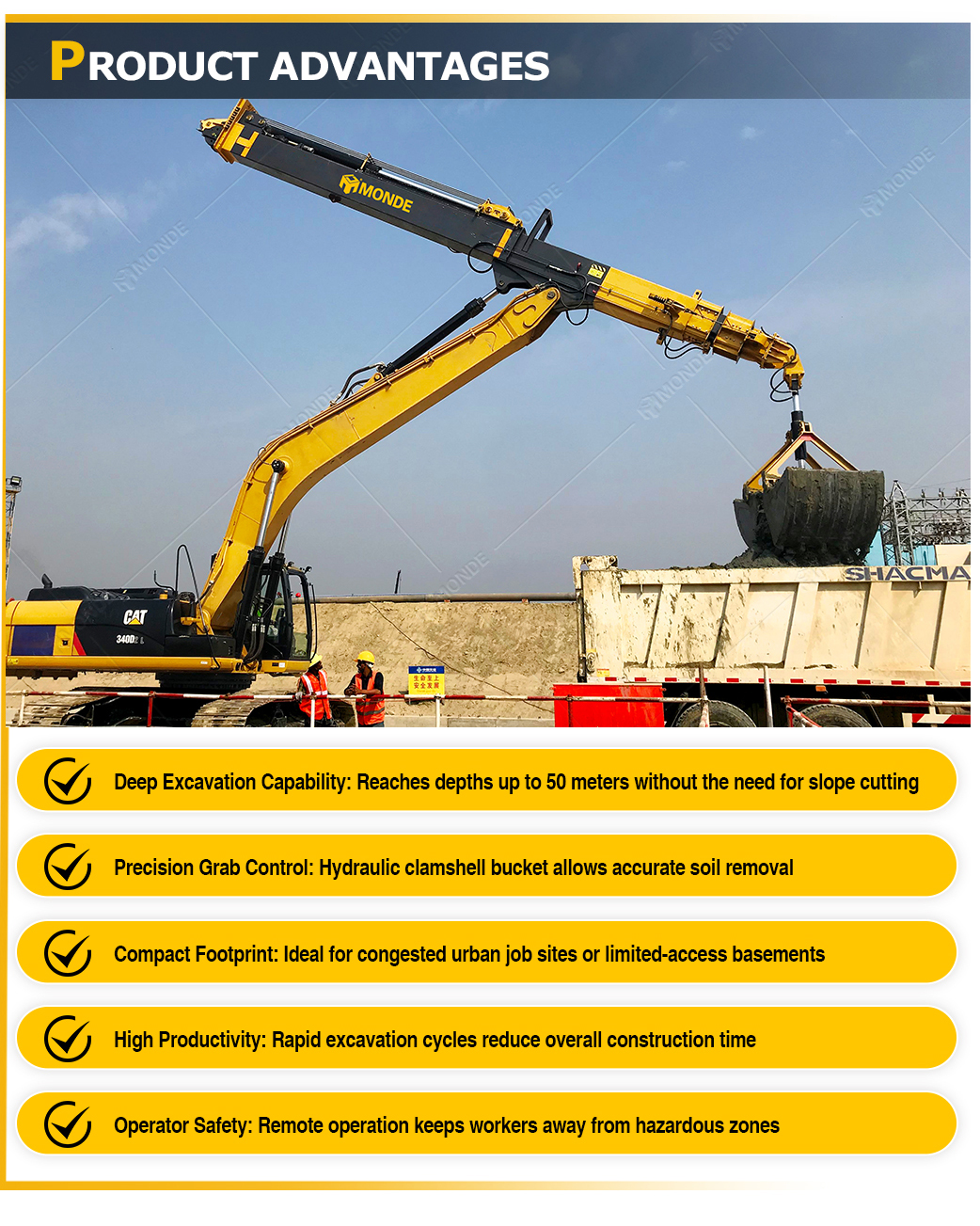

- DRAWINGS/DETAILS/ADVANTAGES
- CONSTRUCTION SITE

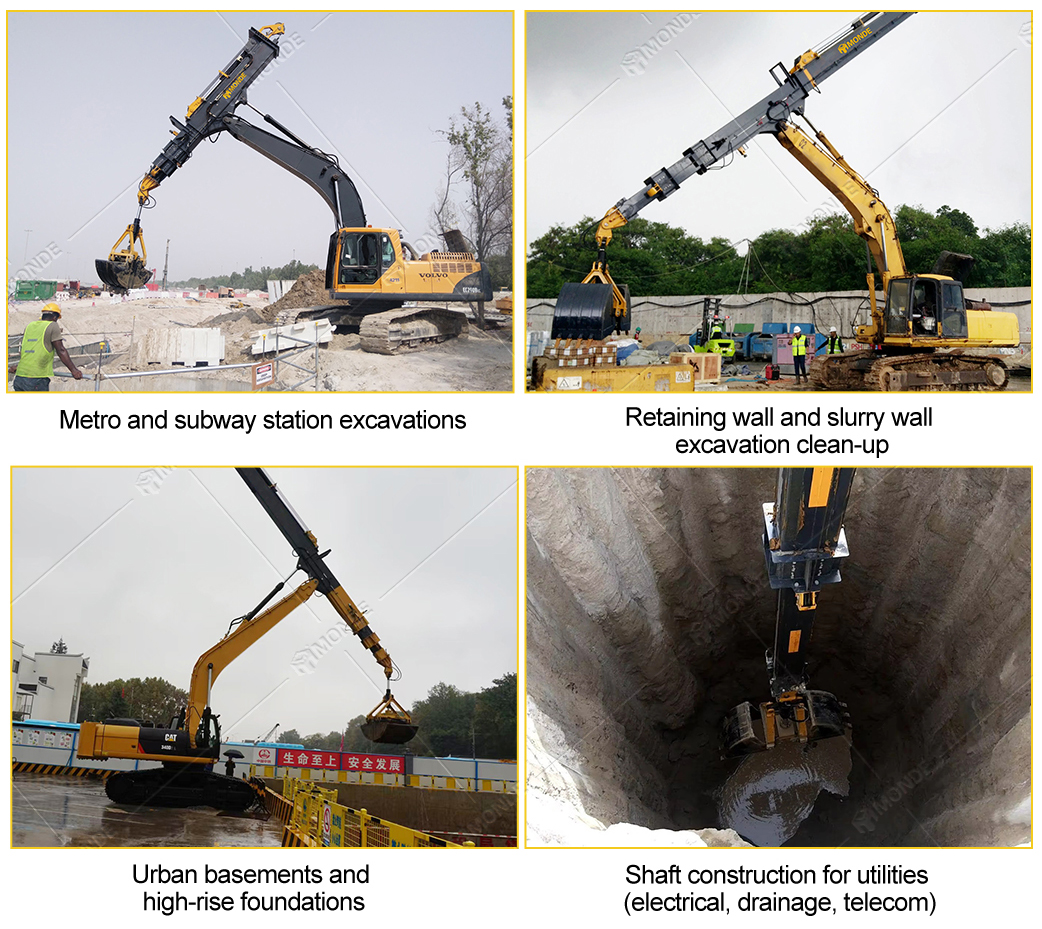

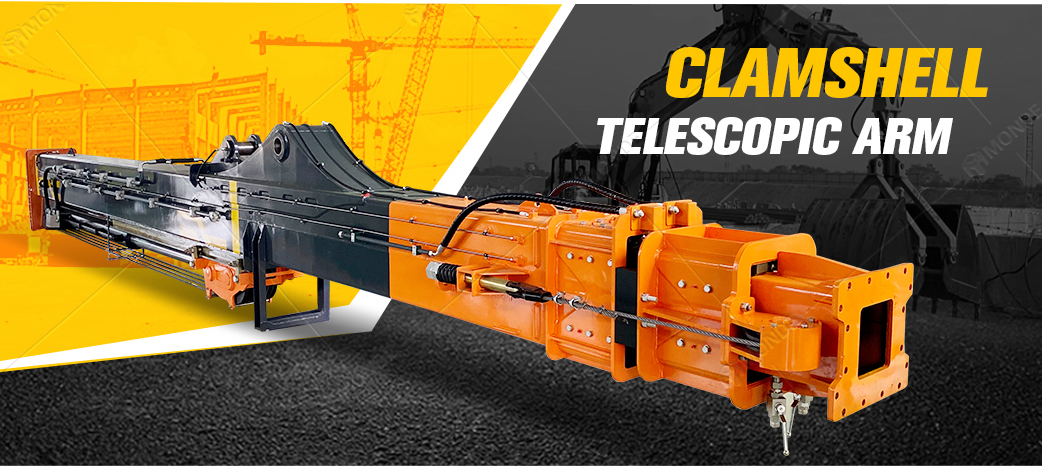

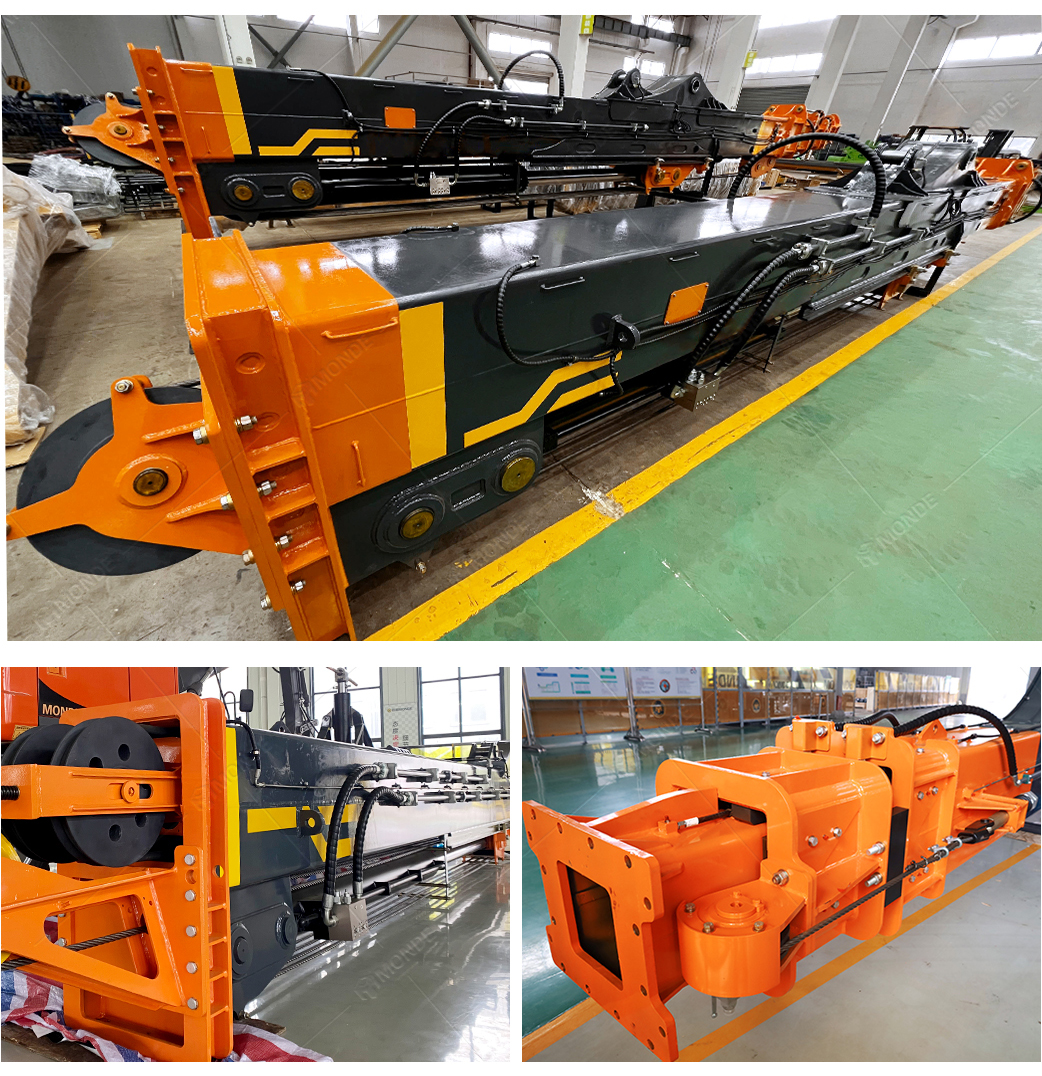

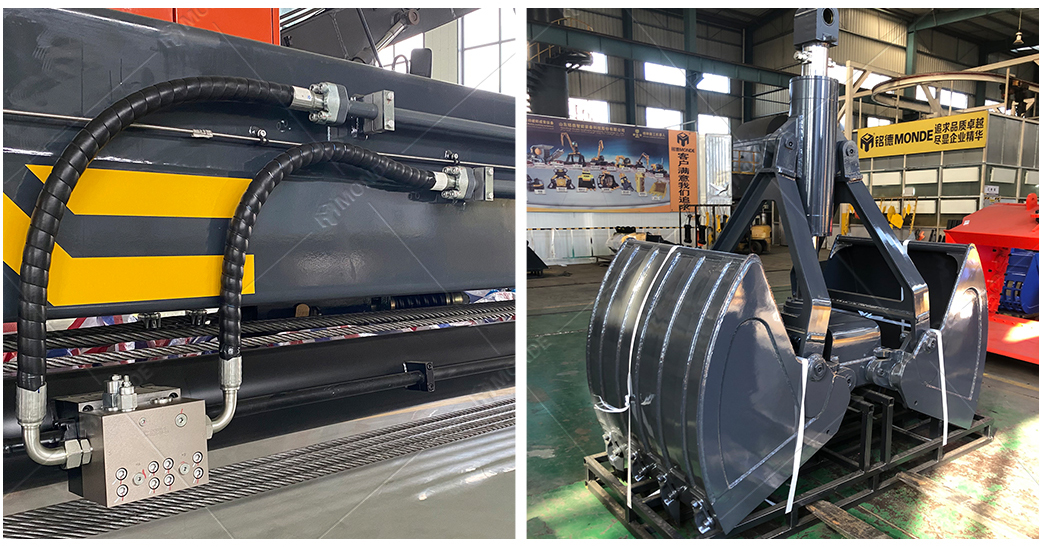

The Clamshell Telescopic Arm is engineered for confined and demanding worksite conditions, equipped with a robust telescopic arm and boom, and a heavy-duty clamshell bucket. Delivering exceptional reach, control and productivity the ability to perform in confined spaces such as urban foundations, tunneling and deep pit projects make it the ideal choice in simplifying complex tasks.
|
Technical Specifications Clamshell Telescopic Arm |
|||||
|
Excavator size (t) |
≥15t |
≥23t |
≥36t |
≥47t |
55t |
|

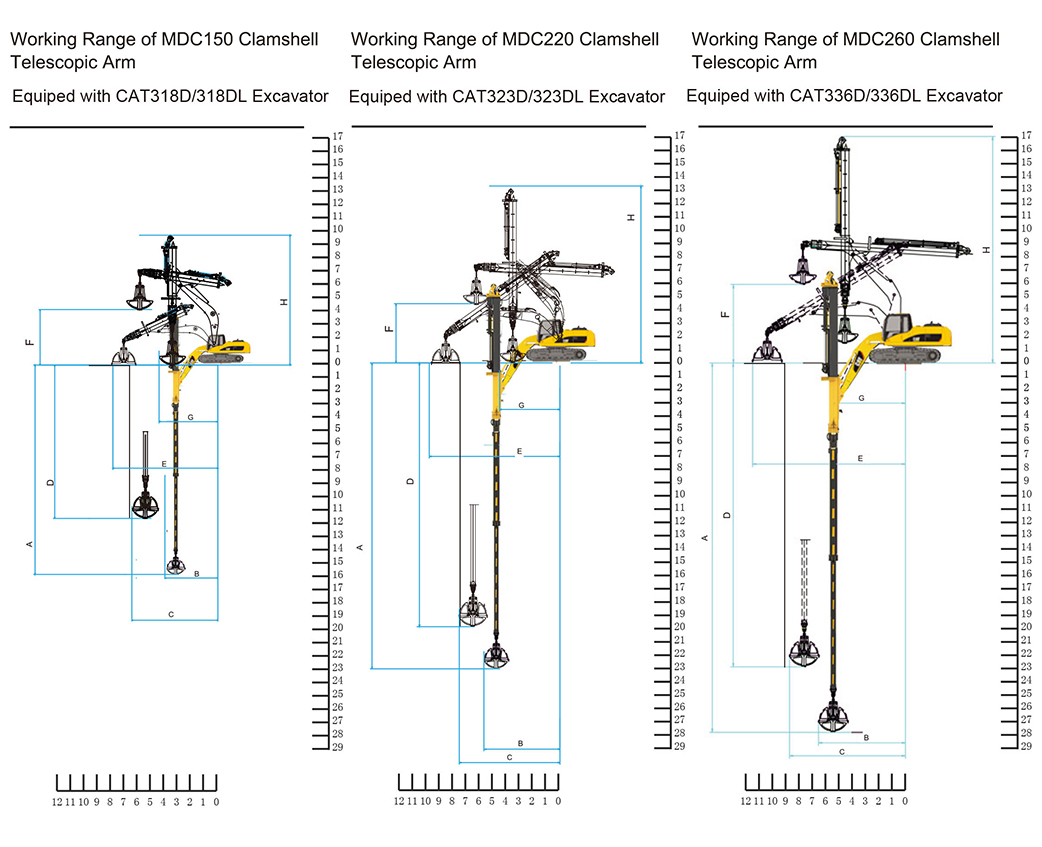

A Max. vertical digging depth (mm) |
15200 |
22490 |
27 180 |
35000 |
35000 |
|
B Max. Digging Radius(Reach Max. Digging Depth) (mm) |
4670 |
5845 |
6400 |
6850 |
7050 |
|
C Max. vertical digging radius (mm) |
6430 |
7445 |
8530 |
8820 |
9080 |
|
D Digging depth (reach Max. Vertical digging radius)(mm) |
11825 |
19920 |
22370 |
27400 |
28300 |
|
E Max. working radius (mm) |
7950 |
9835 |
11250 |
12700 |
12100 |
|
F Max. unloading soil height ( mm) |
2870 |
4465 |
5770 |
6640 |
5860 |
|
G Min. turning radius (mm) |
3980 |
4485 |
5460 |
5740 |
6480 |
|
H Height of Min. turning radius (mm) |
9475 |
13580 |
16675 |
13940 |
20500 |
|
Weight (Kg) |
3600 |
4600 |
5600 |
8200 |
8600 |
|
Bucket Capacity (m3 ) |
0.3 |
0.6 |
1.2 |
1.5 |
2 |
