Excavator Eagle Shear 310

REQUEST A QUOTE
The shape of the demolition hydraulic shear is similar to the olecranon, also known as the olecranon hydraulic shear. Hydraulic demolition shears are suitable for the demolition of medium- and large-sized metal components, the demolition of steel structure houses, and the recycling of scrap metal. A hydraulic shear excavator can also be used for large construction vehicles, trucks, large passenger cars, the dismantling of ships, as well as cutting round steel, round pipe, channel steel, I-beams, steel plates, cable, and other metal materials.
  • PARAMETER
  • DRAWINGS/DETAILS/ADVANTAGES
  • CONSTRUCTION SITE


Excavator hydraulic shears have the characteristics of high strength, high power, small size and convenient use. Because excavator hydraulic shears can quickly and effectively cut off anti-theft doors and windows, steel guardrails, car fires, traffic accidents, earthquakes and other disasters. Railway vehicles and other metal or non-metal structures can rescue trapped people and play a role in rescue and disaster relief. Therefore, they are often used for demolition and rescue in various places. They are fire brigade, traffic police force, industrial and mining enterprises and other disaster relief and rescue departments. Common demolition tools. It can also be used in working conditions such as house demolition, scrap steel, scrap steel, steel bar shearing, automobile dismantling, reinforced concrete separation, etc.

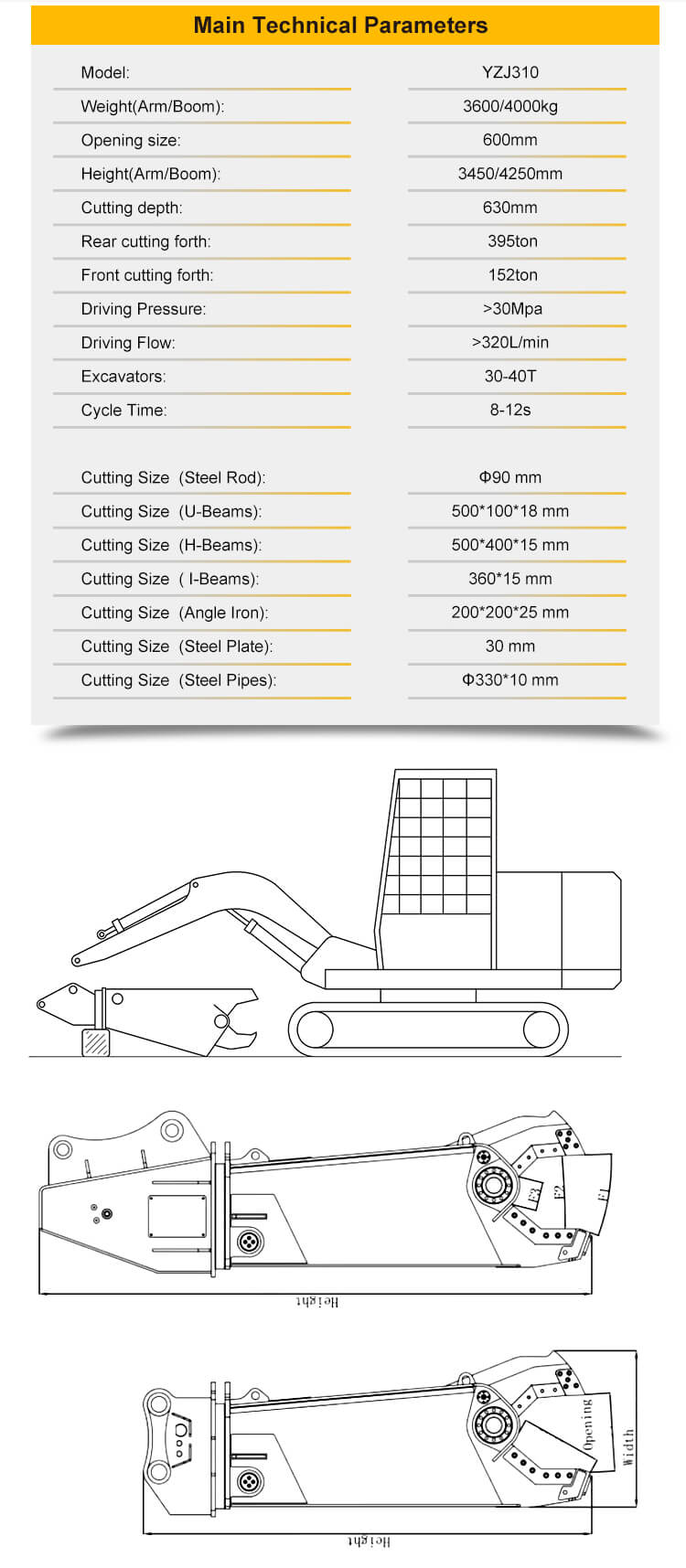

Model

YZJ60

YZJ130

YZJ210

YZJ310

YZJ450

Weight (kg)

650

1350

2670

3300

5300

Opening Size (mm)

300

485

550

650

770

Height (mm)

594

2510

2960

3450/4250

3910

Cutting Depth (mm)

285

438

525

630

714

Rear Cutting Forth (t)

63

105

295

350

230

Front Cutting Forth (t)

25

60

122

175

110

Driving Pressure (Mpa)

25-30

25-30

30-32

30-32

32-35

Driving Flow (L/min)

80-100

120-160

230-280

260-300

300-320

Excavators (t)

6-8

13-18

20-30

30-40

45-55

Cycle Time(s)

8-12

8-12

8-12

8-12

8-12

Steel Rod Cutting Size (mm)

Φ40

Φ50

Φ55

Φ80

Φ90

U-Beams Cutting Size (mm)

100*5.3

140*8

400*100*18

500*100*18

360*98

H-Beams Cutting Size (mm)

126*74

250*116

350*300*10

500*300*14

560*170

I-Beams Cutting Size(mm)

126*74

250*116

280*122*10

360*140*14

560*170

Angle Iron Cutting Size (mm)

200*200*10

200*200*15

200*200*25

200*200*25

200*200*30

Steel Plate Cutting Size (mm)

10

12

Width250*T30

250*T30

30

Steel Pipes Cutting Size (mm)

Φ76*6

Φ159*6

Φ220*8

Φ330*10

Φ402*15



1. Hydraulic Eagle Shear can be installed on the for ear more directly on the big arm.

2. Oil cylinder is equipped with an imported speed-increasing valve, which increases the shearing force and shortens the shearing time.

3. The pin is made of 42CrMo alloy steel, with built-in oil channel, high strength and good toughness

4. Adopt the rotary motor imported from Switzerland, with large torque and fast speed

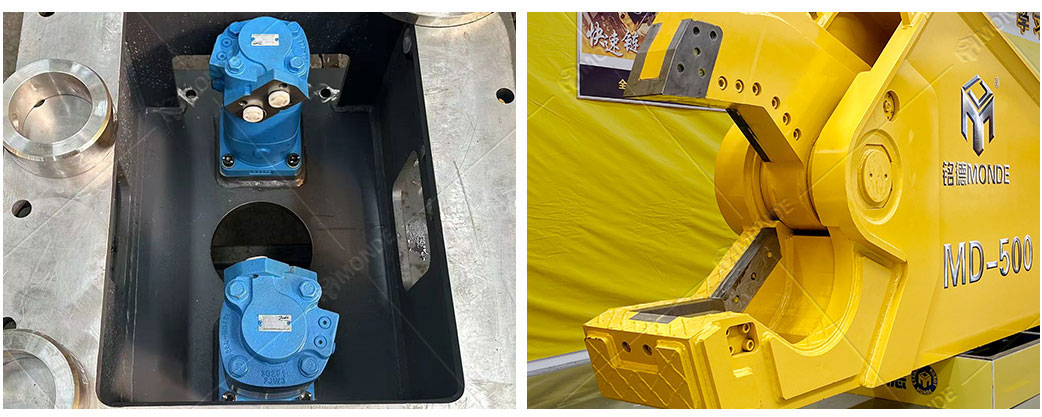

DOUBLE MOTOR

Imported Danfoss motor. Double motor design, increase the rotating speed, to make the eagle shear work more efficiently.

FLIPPED BLADES

Blades are bolted on, and could be flipped, so could be used twice to extend the service life of the blades.

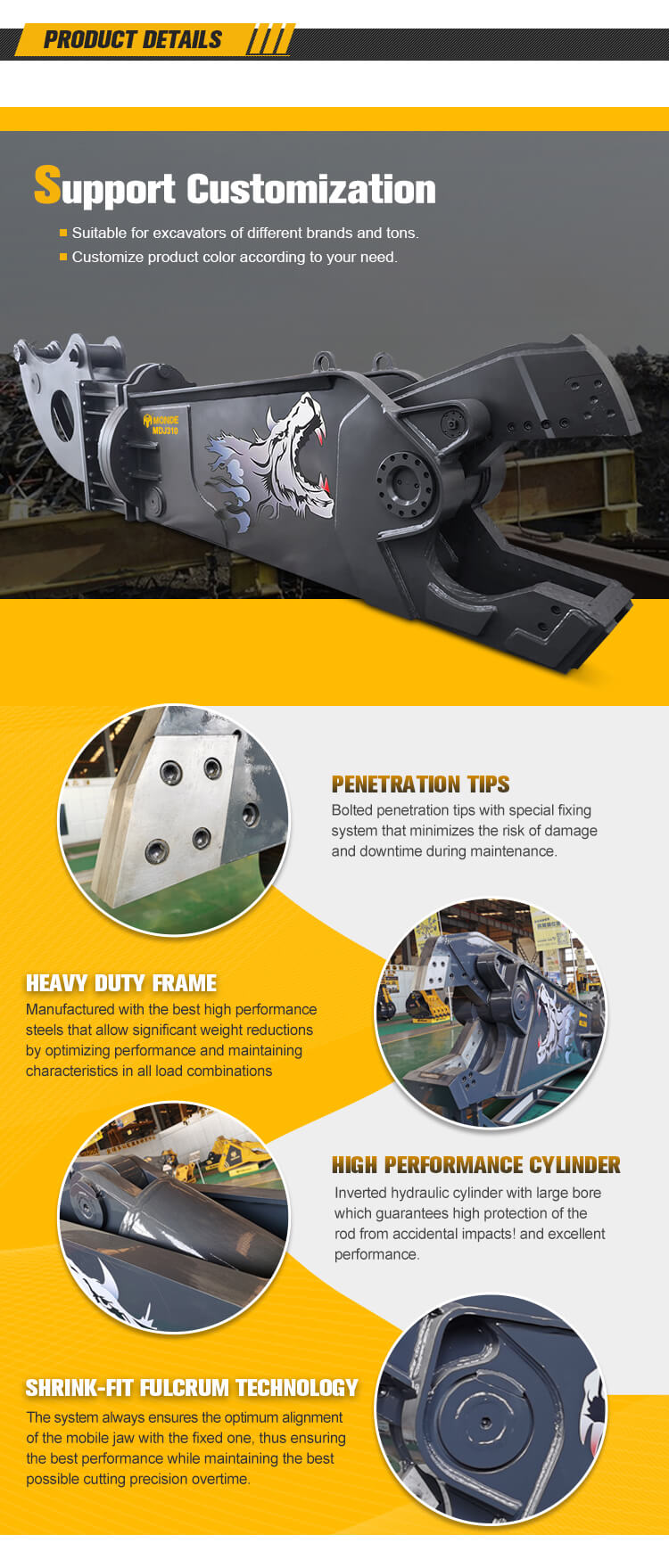

HIGH PERFORMANCE CYLINDER

Inverted hydraulic cylinder with large bore which guarantees high protection of the rod from accidental impacts! and excellent performance.

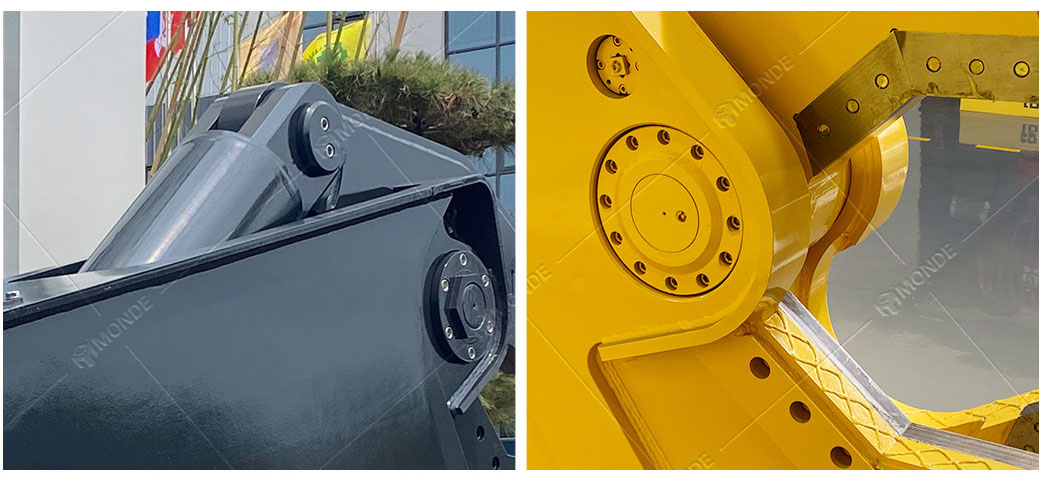

SHRINK-FIT FULCRUM TECHNOLOGY

The system always ensures the optimum alignment of the mobile jaw with the fixed one, thus ensuring the best performance while maintaining the best possible cutting precision overtime.

SPEEDING VALVE

Equipped with speeding valve on the cylinder to speed up the movement of jaw while cutting, to make to cutting more quick and easy.

EXCHANGEABLE BLADES

Carbide blade. Extra set of blades could be provide to replace the blades on eagle shear.



The excavator eagle shears are mainly used for the demolition of steel structure houses, as well as the recycling of scrap metal, the dismantling of large construction vehicles, trucks, large passenger cars, and ships, mainly cutting round steel, round pipe, channel steel, I-beam, steel plate, metal materials such as cables.

Compared with the double-cylinder hydraulic shears, the hydraulic eagle shears have greater shearing force and are suitable for more severe working conditions


Shandong Mingde Machinery Co., Ltd. is a world-renowned enterprise engaged in the research and development, manufacturing, sales and after-sales service of multi-functional attachments, mobile crushers, intelligent robots and other series of products.



Mingde currently has 500+ employees, 60000+ sq meters workshop, 70+ engineers and 200+ equipments with different functions, and 30+ testing and inspection equipment. biggest dealer of SSAB for HARDOX plate in China, also we are HARDOX WEARPARTS global processing center.



Through years of stable development, Mingde has passed ISO9001 international quality system certification, SGS testing certification, CE European safety certification, ISO14001 environmental management system certification and international welding technology certification. Monde has successfully established close cooperation with several well-know machine equipment companies, such as SHANTUI, Komatsu, JCB, HBXG, SCMMC, etc and supply OEM service for them.

1.We pack the products by simple pallet or case which is seaworthy.

2.Fast delivery time:5-7 days for small quantity, and 20-30 days for container quantity.

3.We have a team specialized in packing and loading container, they have rich experience,and can load the max quantity products,which can help customer save the ocean freight.
