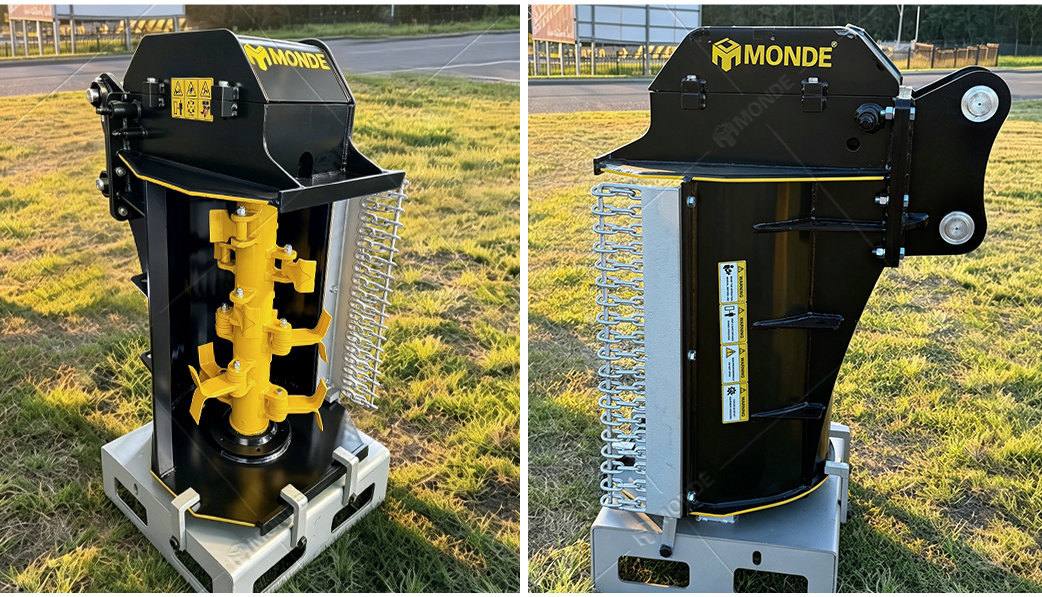

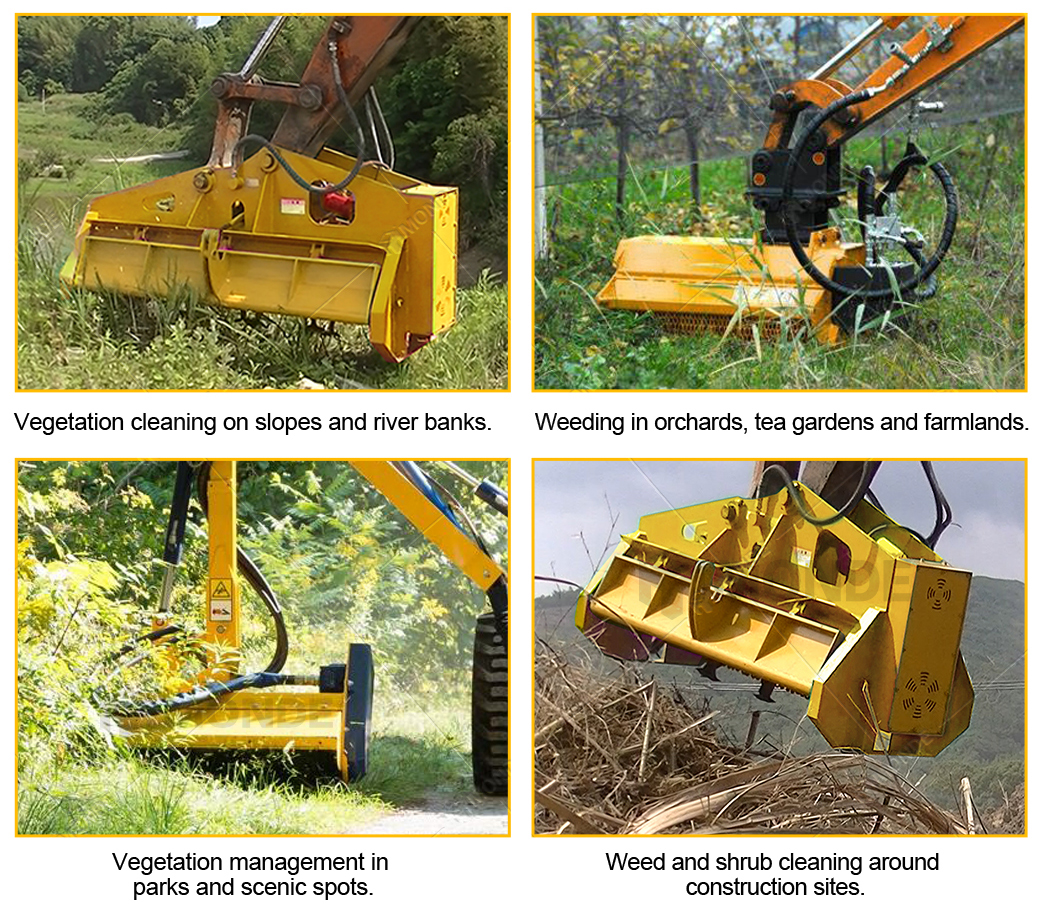

The excavator flail mower is a mechanical tool for trimming large-scale barren vegetation. The output shaft of the hydraulic motor is equipped with a blade.The blade uses the hydraulic motor's telling rotation to cut, saving the work time of the weeding workers and reducing a lot of human resources.
The excavator flail mower is a mechanical tool for trimming large-scale barren vegetation. The output shaft of the hydraulic motor is equipped with a blade.The blade uses the hydraulic motor's telling rotation to cut, saving the work time of the weeding workers and reducing a lot of human resources.
|
Model
|
GCJ30
|
GCJ50
|
GCJ120
|
GCJ200
|
|
Apply To (T)
|
2-4
|
5-8
|
10-15
|
18-22
|
|
Number of blades
|
24/12
|
36/18
|
36/18
|
56/28
|
|
Cutting width (mm)
|
631
|
931
|
931
|
1431
|
|
Cutting height (mm)
|
460
|
460
|
545
|
547
|
|
Oil flow (L/min)
|
15-20
|
20-25
|
55-60
|
50-60
|
|
Working pressure (Mpa)
|
18
|
20
|
22
|
25
|
|
Rotating speed (rpm)
|
1500
|
1600
|
1800
|
1800
|
|
Size (mm)
|
1073*620*631
|
1373*620*631
|
1451*820*676
|
1951*820*676
|
|
Weight(kg)
|
270
|
350
|
560
|
660
|
|

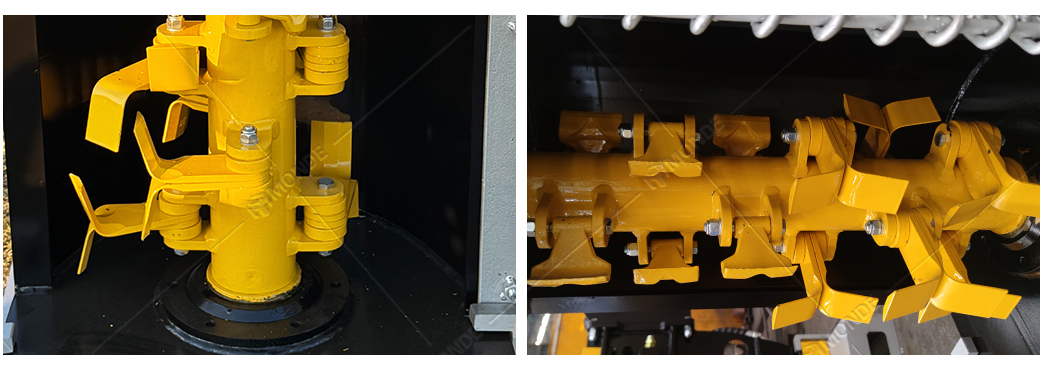

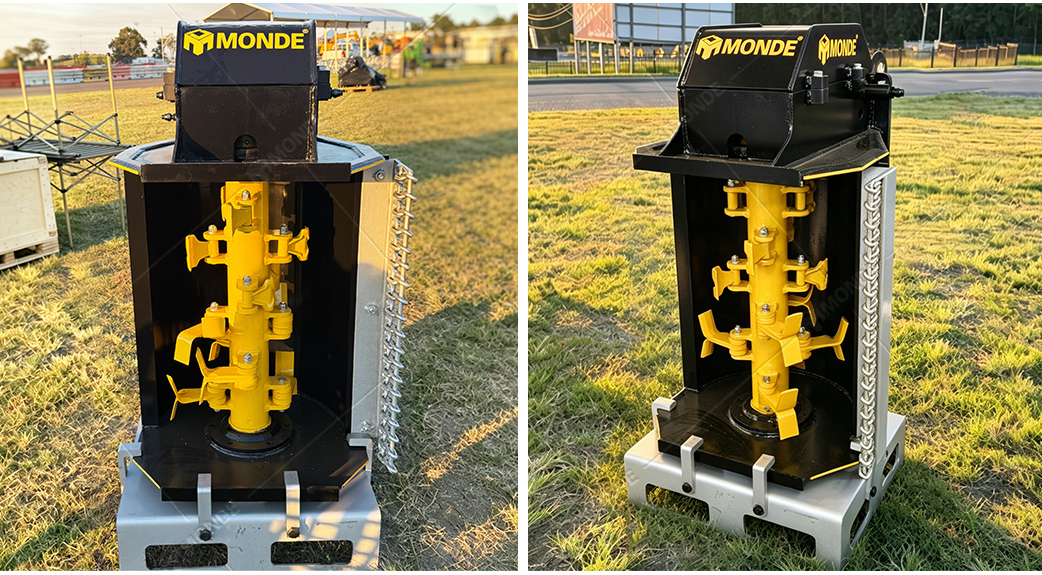

Precision cutting shaft:
The laser balanced cutting shaft provides fully harnessed power, ensuring smooth rotation and efficient cutting.
|
Unique cutting method:

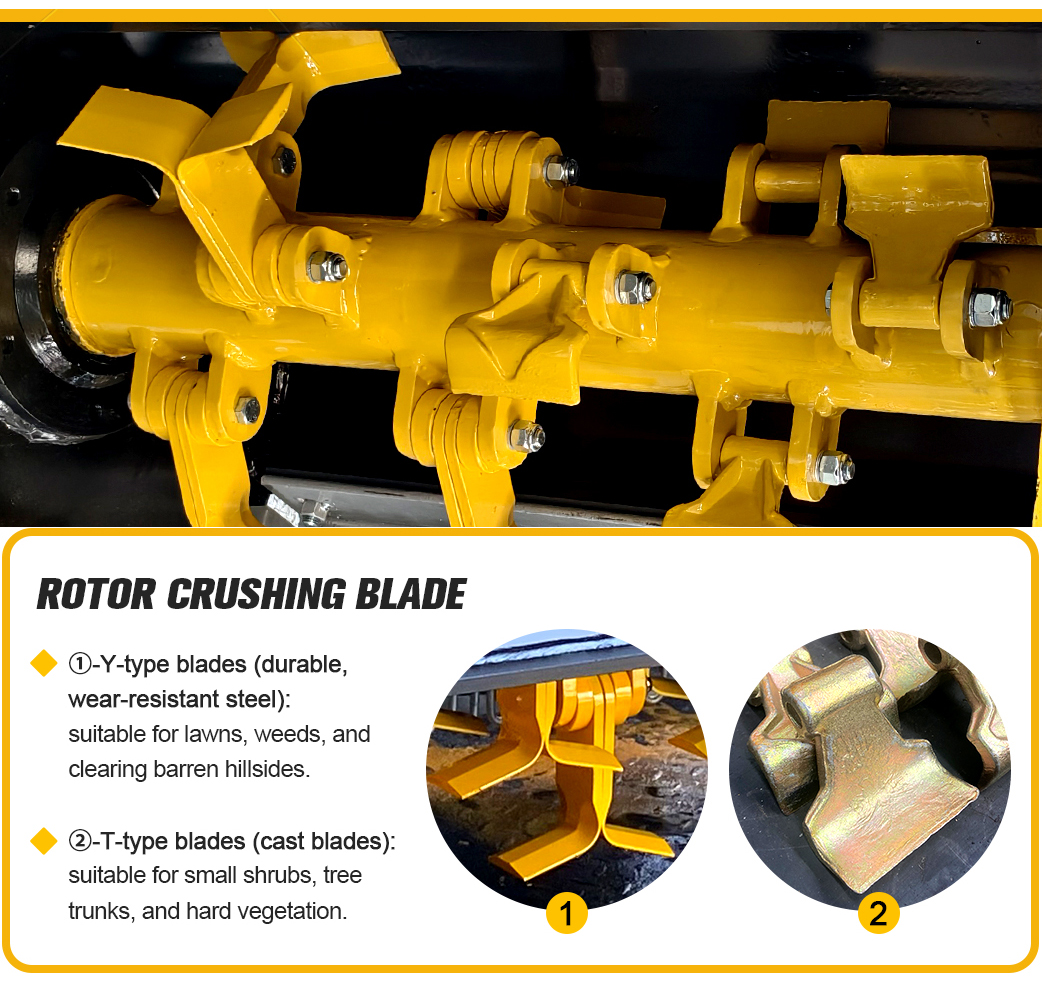

Using high-speed rotating Y-shaped or T-shaped articulated blades. Very suitable for cleaning rough land with overgrown weeds and a lot of debris.
|
|

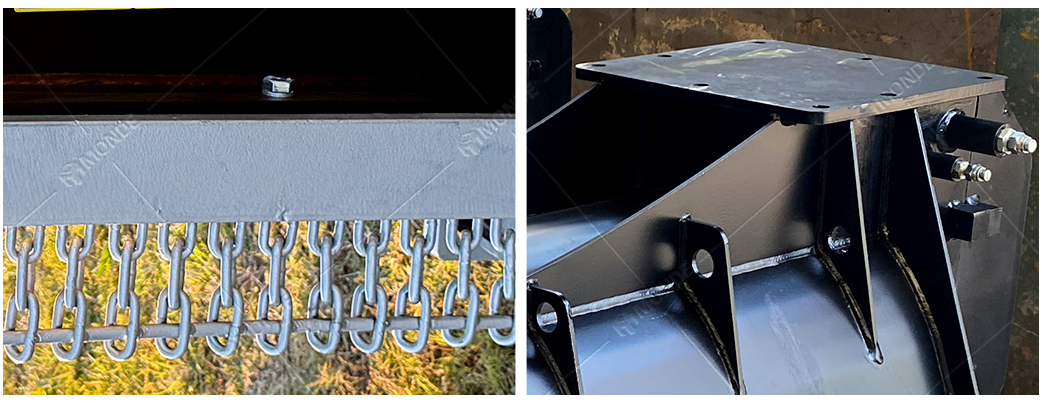

Higher safety:
The blades are hinged, and the workspace is usually designed in a closed manner. When rotating at high speed, it can effectively control the cutting material inside the cabin
|
Mounting Plate:
The bracket uses a bolt-fixed mounting plate for easy installation.
|
Shandong Mingde Machinery Co., Ltd. is a world-renowned enterprise engaged in the research and development, manufacturing, sales and after-sales service of multi-functional attachments, mobile crushers, intelligent robots and other series of products.
Mingde currently has 500+ employees, 60000+ sq meters workshop, 70+ engineers and 200+ equipments with different functions, and 30+ testing and inspection equipment. biggest dealer of SSAB for HARDOX plate in China, also we are HARDOX WEARPARTS global processing center.
Through years of stable development, Mingde has passed ISO9001 international quality system certification, SGS testing certification, CE European safety certification, ISO14001 environmental management system certification and international welding technology certification. Monde has successfully established close cooperation with several well-know machine equipment companies, such as SHANTUI, Komatsu, JCB, HBXG, SCMMC, etc and supply OEM service for them.

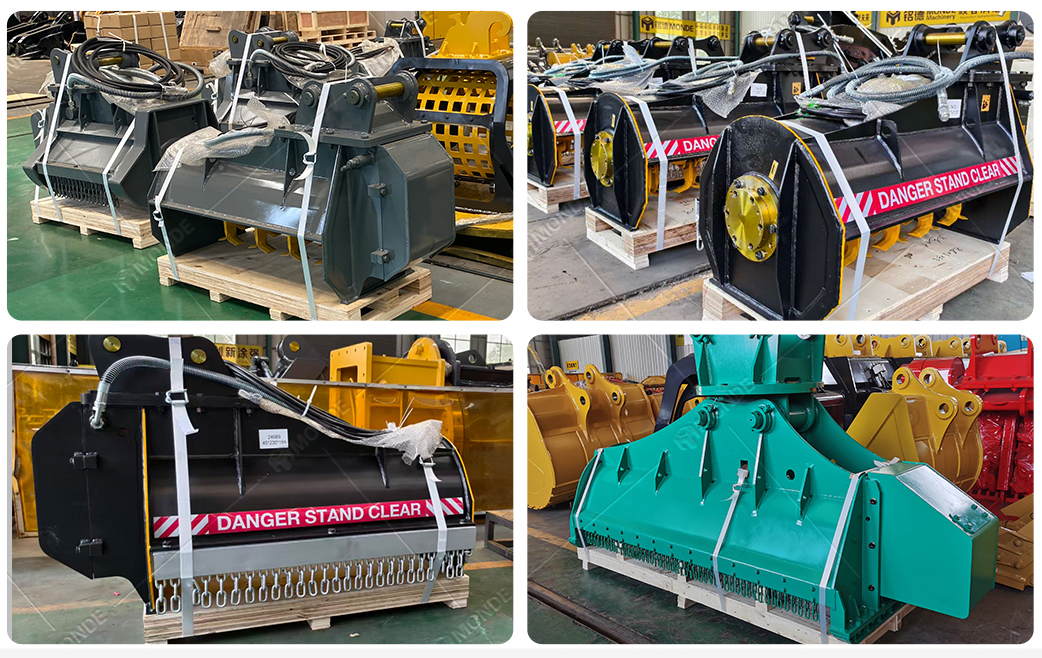

Packaging & Delivery：
1.We pack the products by simple pallet or case which is seaworthy.
2.Fast delivery time:5-7 days for small quantity, and 20-30 days for container quantity.
3.We have a team specialized in packing and loading container, they have rich experience,and can load the max quantity products,which can help customer save the ocean freight.
