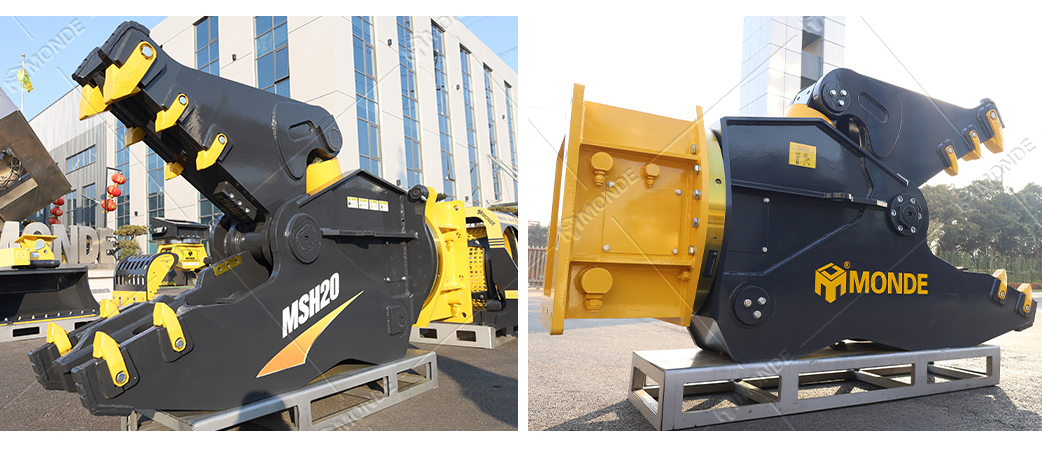

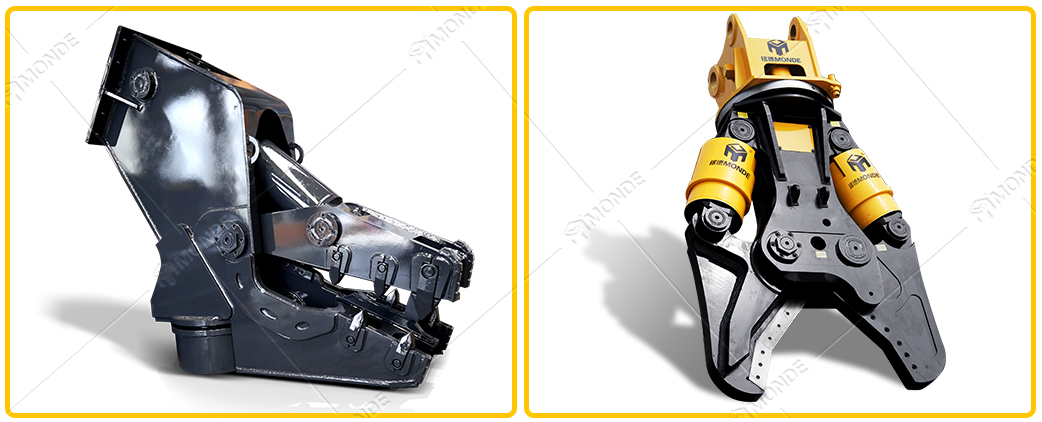

Excavator Hydraulic Pulverizer

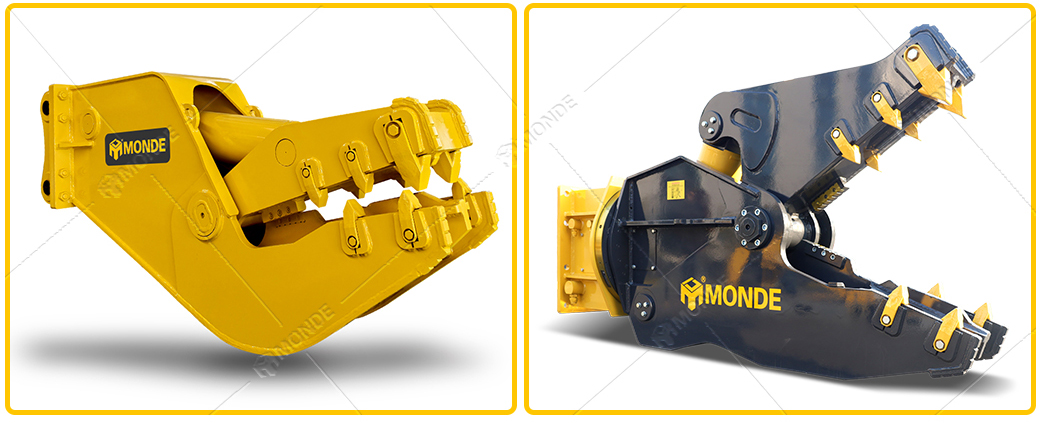

MONDE excavator pulverizer is a convenient and fast tool for dismantling equipment, with strong crushing ability, which can decompose reinforced concrete quickly, demolition of buildings such as beams and pillars of apartment buildings, with super size serrated teeth, the design of teeth reinforced by the occlusal surface, large crushing area and high crushing efficiency.
  • PARAMETER

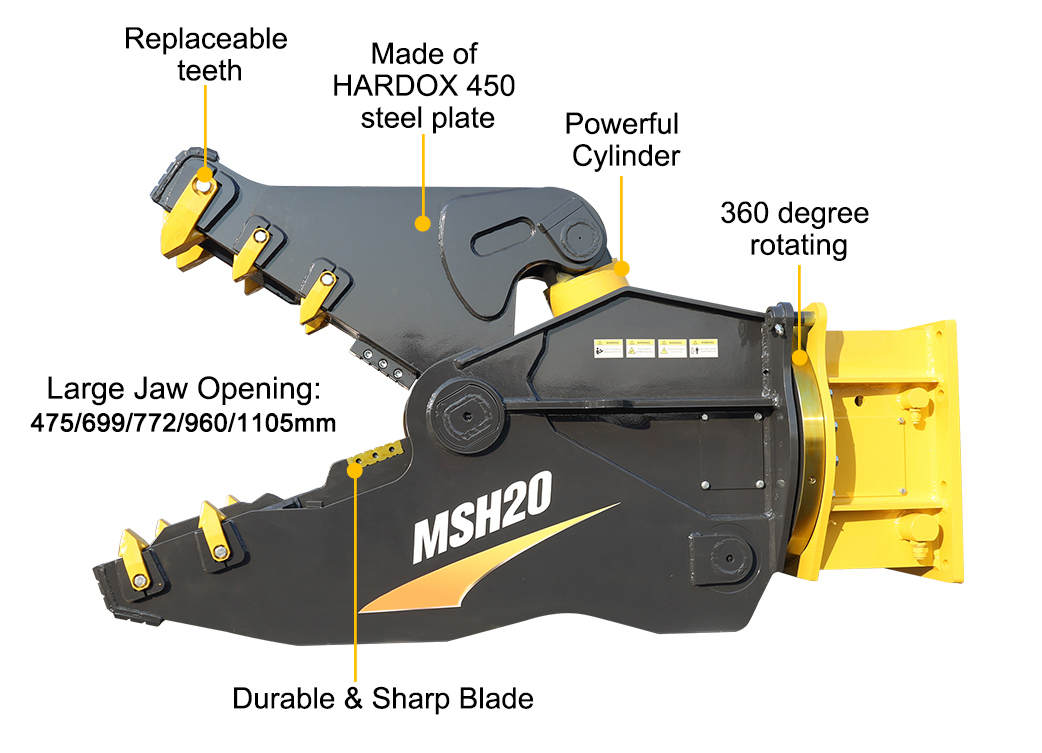

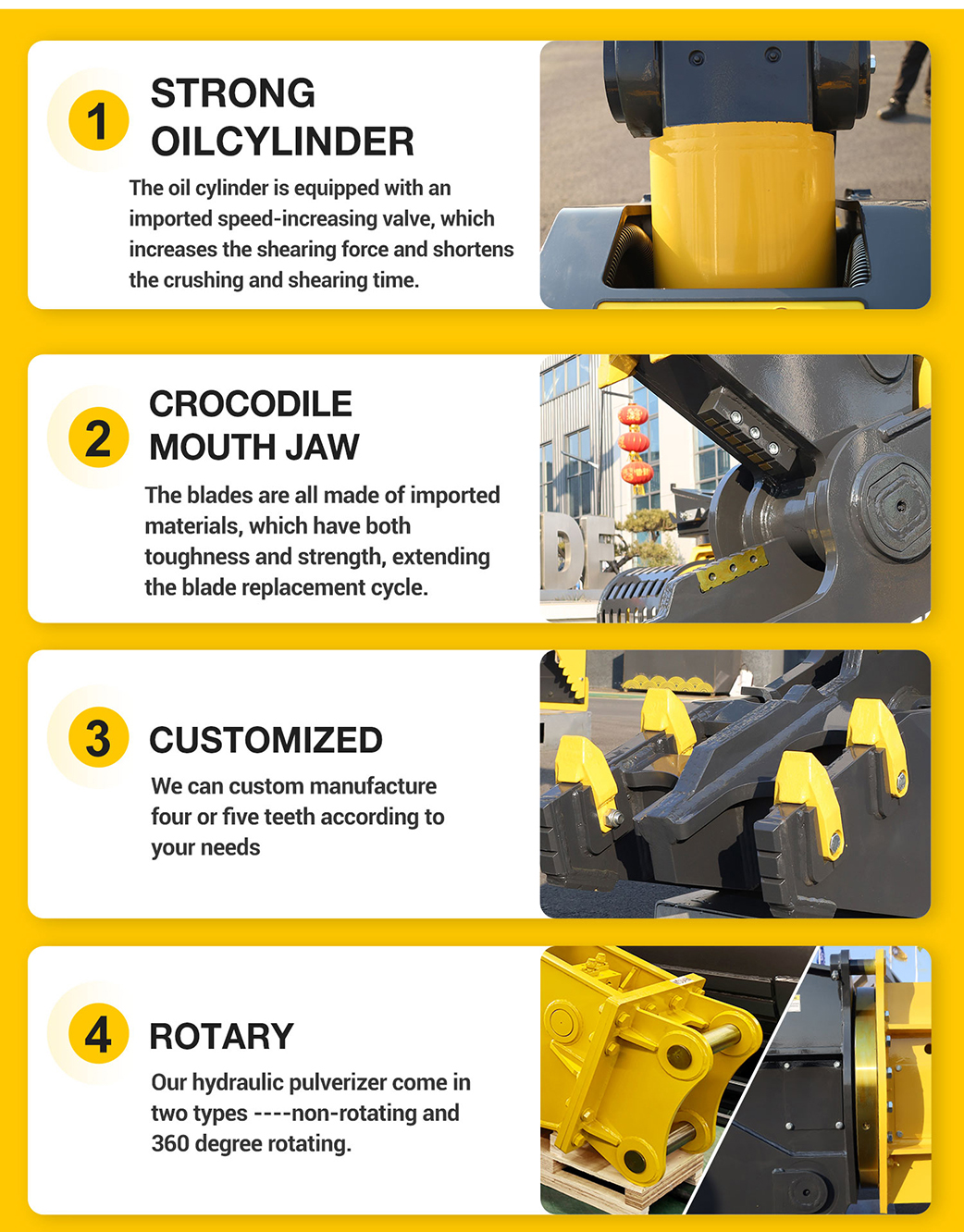

  • DRAWINGS/DETAILS/ADVANTAGES

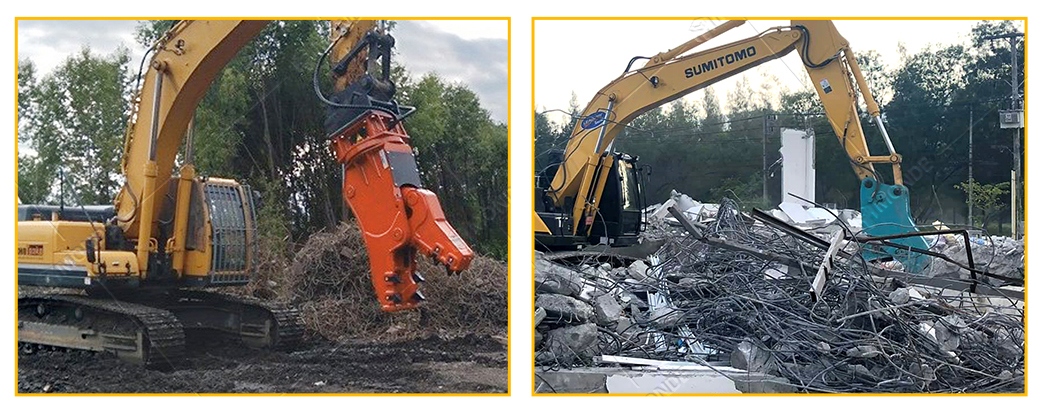

  • CONSTRUCTION SITE


MONDE excavator pulverizer is a convenient and fast tool for dismantling equipment, with strong crushing ability, which can decompose reinforced concrete quickly, demolition of buildings such as beams and pillars of apartment buildings, with super size serrated teeth, the design of teeth reinforced by the occlusal surface, large crushing area and high crushing efficiency.


Model

MSH06

MSH15

MSH20

MSH30

MSH40

Excavator Weight (T)

6-8

12-18

20-30

30-40

40-55

Maximum opening (mm)

475

699

772

960

1105

Max. Crushing Force (T)

83

110

150

180

300

Max. Shear Force (T)

126

190

230

260

340

Work Pressure (Mpa)

25-30

28

30

32

32

Working Flow (L/min)

60-100

100-130

180-230

180-230

300-320

Rotation Pressure (Mpa)

12-14

12-14

12-14

12-14

12-14

Rotation Flow (L/min)

15-20

20-25

25-30

30-35

30-45

Weight (kg)

650

1350

2250

3000

3700

Dimensions (mm)

1680*480*935

1950*660*1185

2317*749*1366

2540*830*1630

2890*880*1863






MONDE is a professional manufacturing factory with more than ten years of production experience.

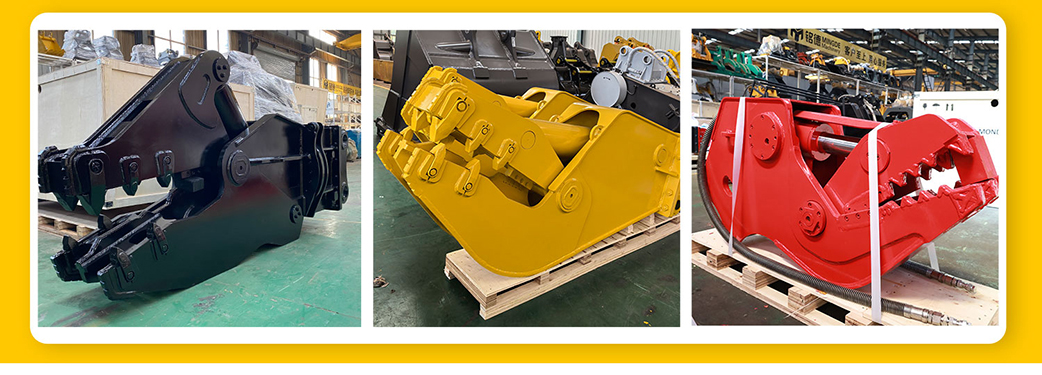

MONDE company supports size customization and color customization of various types of products, and provides you with the best service.

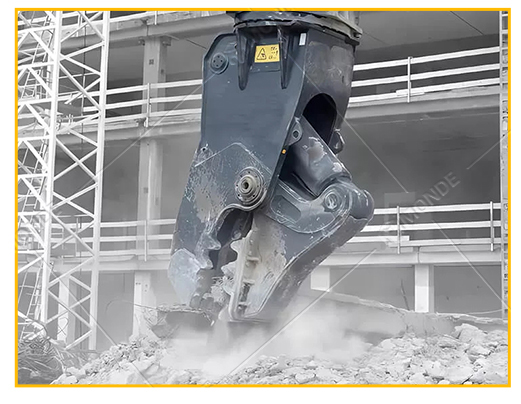

Concrete crushing

Hydraulic pulverizers are mainly used for demolition and separation of reinforced concrete and other projects.

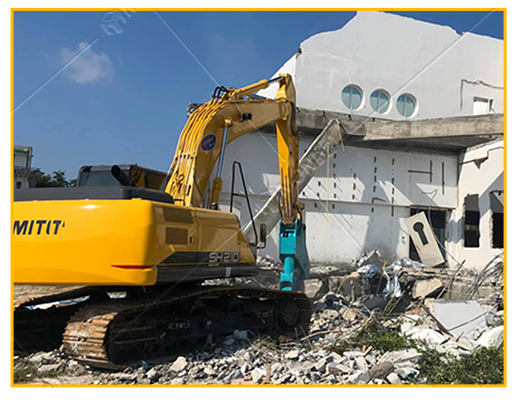

Demolition works

The crocodile tooth is made into a special shape to firmly fix the concrete block, wedged and smashed for rapid crushing.



Rebar removal works

Steel bar cuter is installed on the inner side to cut off the exposed steel bar while smashing the concrete, and directly demolish the building, the house and other buildings, The material makes the crushing work more efficient

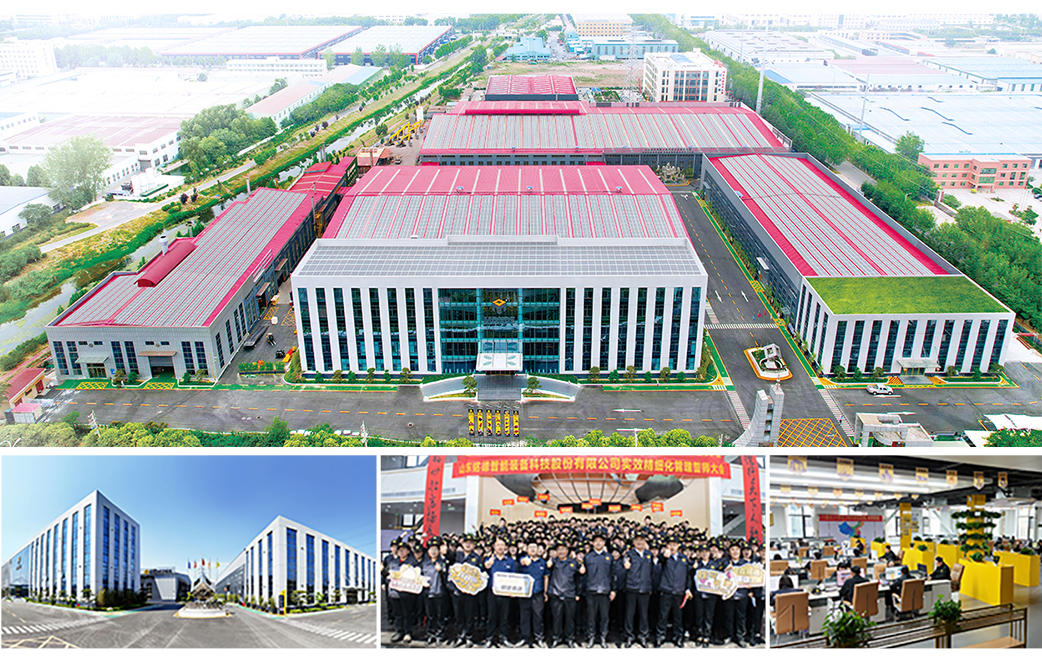

Shandong Mingde Machinery Co., Ltd. is a world-renowned enterprise engaged in the research and development, manufacturing, sales and after-sales service of multi-functional attachments, mobile crushers, intelligent robots and other series of products.



Mingde currently has 500+ employees, 60000+ sq meters workshop, 70+ engineers and 200+ equipments with different functions, and 30+ testing and inspection equipment. biggest dealer of SSAB for HARDOX plate in China, also we are HARDOX WEARPARTS global processing center.



Through years of stable development, Mingde has passed ISO9001 international quality system certification, SGS testing certification, CE European safety certification, ISO14001 environmental management system certification and international welding technology certification. Monde has successfully established close cooperation with several well-know machine equipment companies, such as SHANTUI, Komatsu, JCB, HBXG, SCMMC, etc and supply OEM service for them.

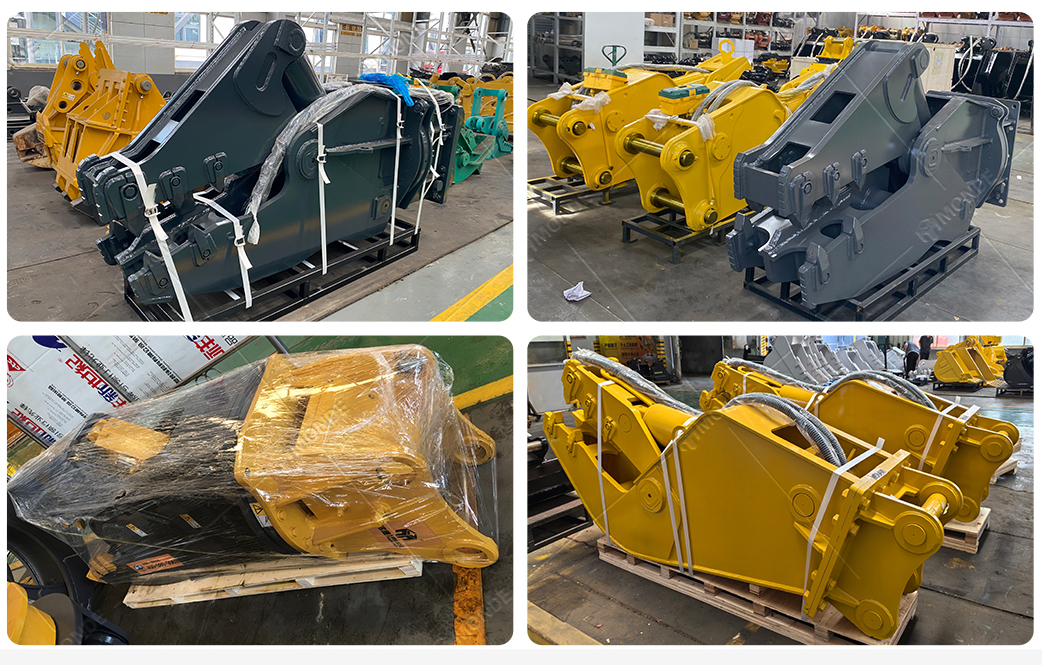

Packaging & Delivery:

1.We pack the products by simple pallet or case which is seaworthy.

2.Fast delivery time:5-7 days for small quantity, and 20-30 days for container quantity.

3.We have a team specialized in packing and loading container, they have rich experience,and can load the max quantity products,which can help customer save the ocean freight.
