Mobile Double-Shaft Shredder

The DP70 is a high-performance mobile Double-shaft shredder designed for versatility, mobility, and maximum efficiency. Built for tough applications, it processes a wide range of material which includes all construction and demolition waste, commercial waste, natural wood, waste wood, rubber, plastics, asphalt, concrete, and natural stone with ease.
  • PARAMETER
  • DRAWINGS/DETAILS/ADVANTAGES

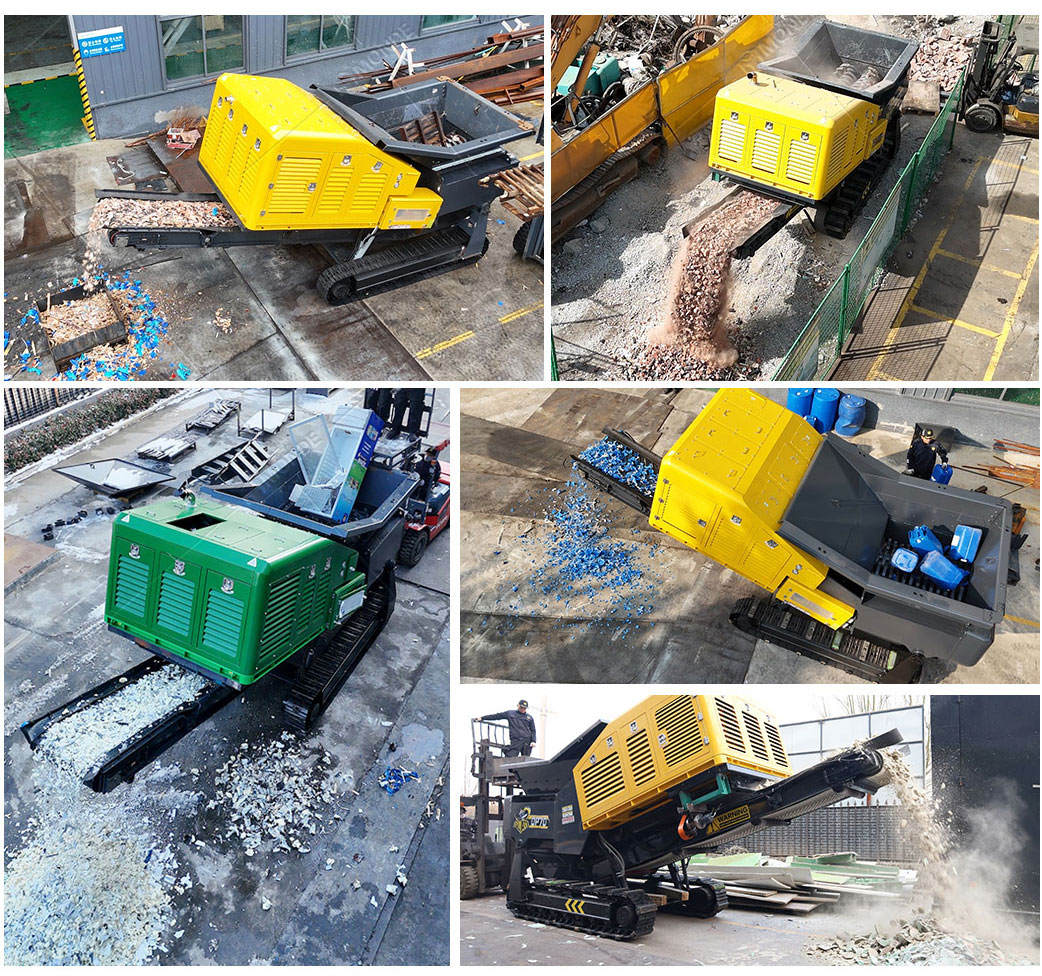

  • CONSTRUCTION SITE

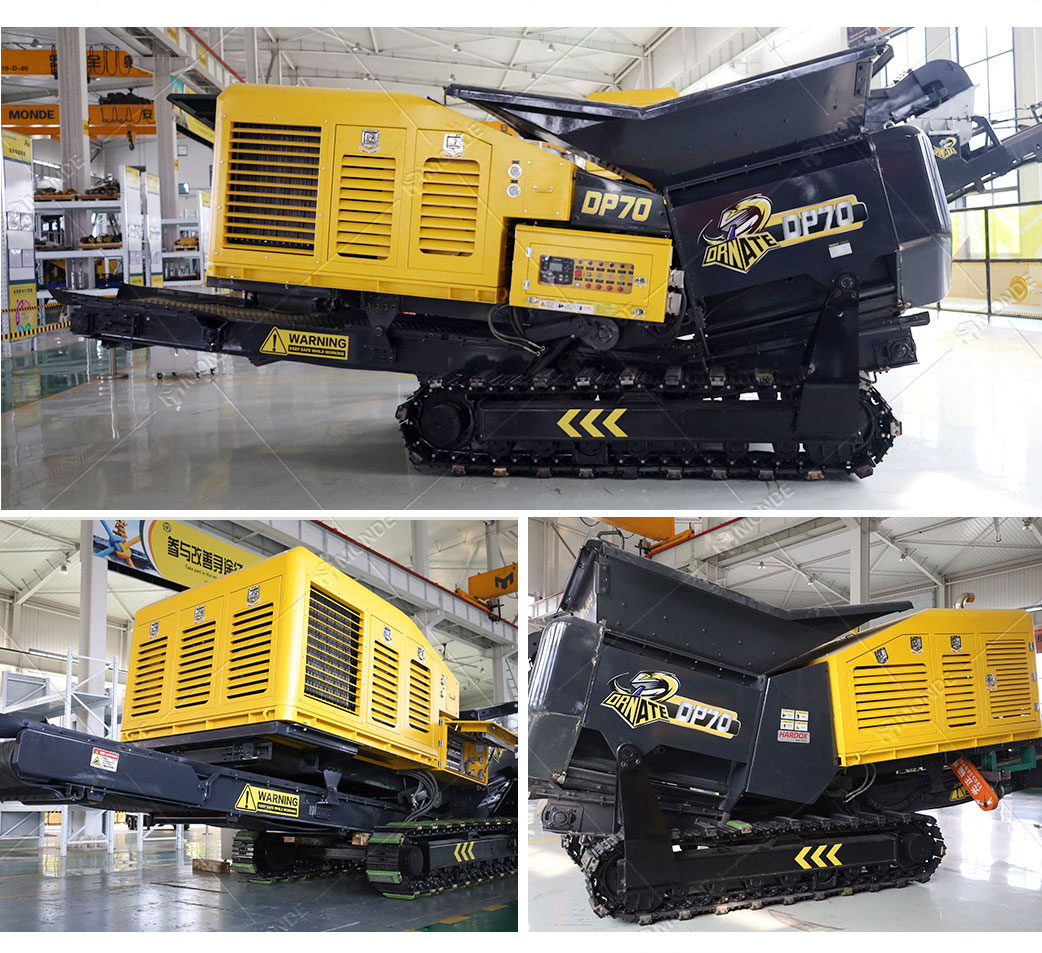

The DP70 mobile hydraulic double-shaft shredder features a dual-shaft design that operates synchronously, ensuring efficient shredding and providing powerful processing capabilities. Equipped with high-strength alloy cutters, this machine can shred a wide range of hard, tough, or fibrous waste, capable of shredding 5-60 tons of material per hour, depending on the material.


Model

DP70

Dimensions (working) (mm)

6200*2100*3554

Dimensions (transportation) (mm)

5100*2100*2520

Weight (kg)

14000

Shaft Diameter (mm)

570

Shaft Length (mm)

1200

Feeding Height (mm)

2430

Discharge Height (mm)

2305

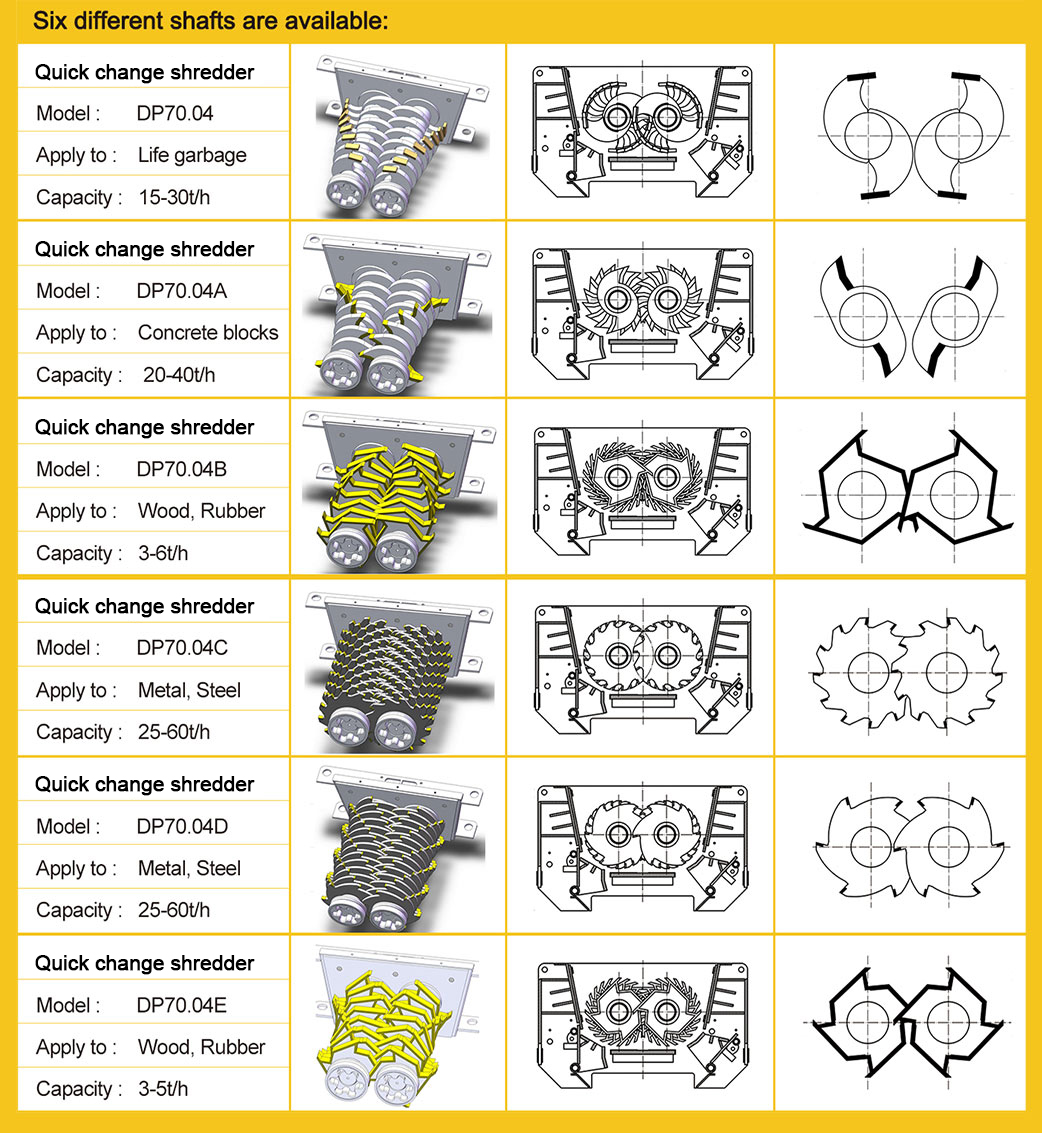

Quick change shredder weight (kg)

≈1900

Shredder rotating speed (rpm)

38

Output torque (Nm)

25400

Total flow of hydraulic system (L/min)

250

Maximum pressure of hydraulic system (Mpa)

30

Engine

Cummins

Emission standards

EPA Tier 4F; EURO Stage V

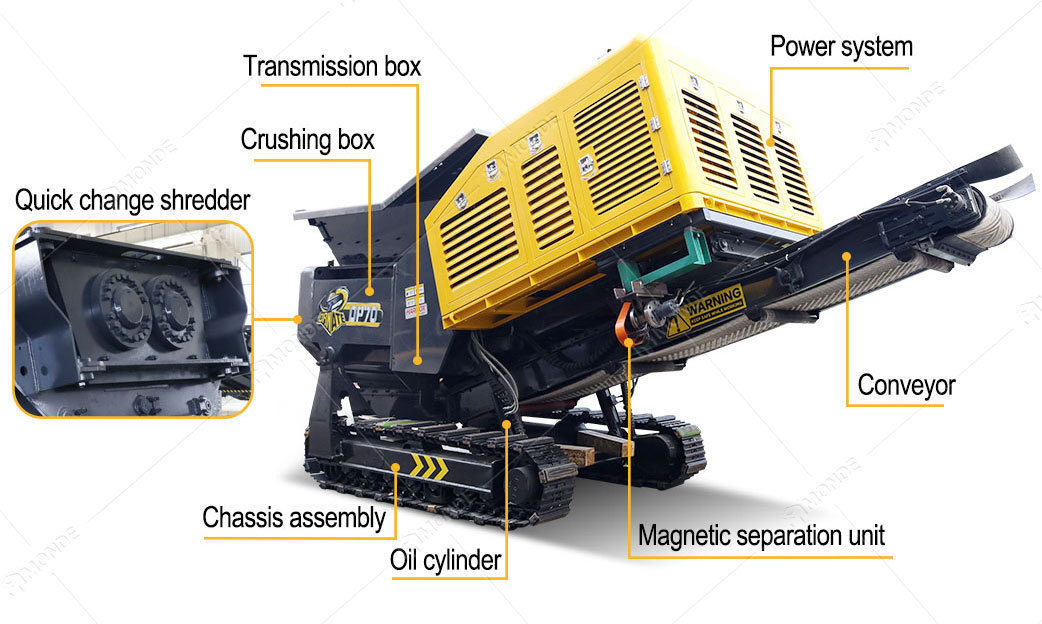

1.Efficient crushing capacity: The equipment adopts a double-shaft design, and the synchronous operation of the double shafts ensures efficient crushing capacity and powerful processing capacity.

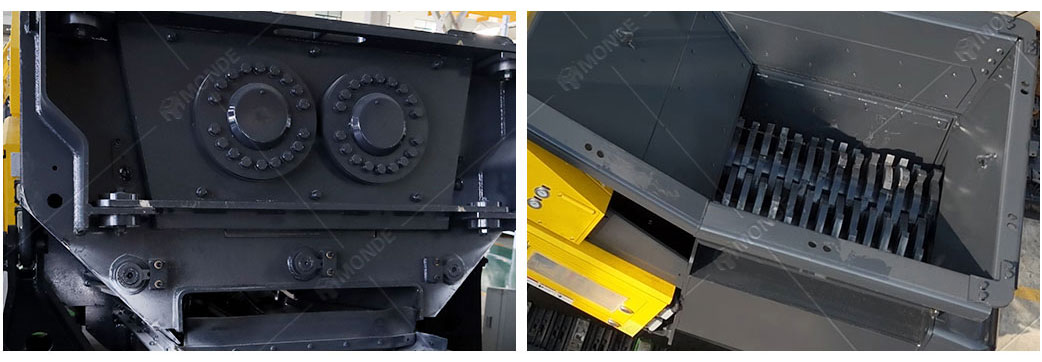

2.Processing capacity: Equipped with high-strength alloy cutters, it can easily handle a variety of hard, tough or fibrous waste, such as scrap metal, plastic, wood and paper.

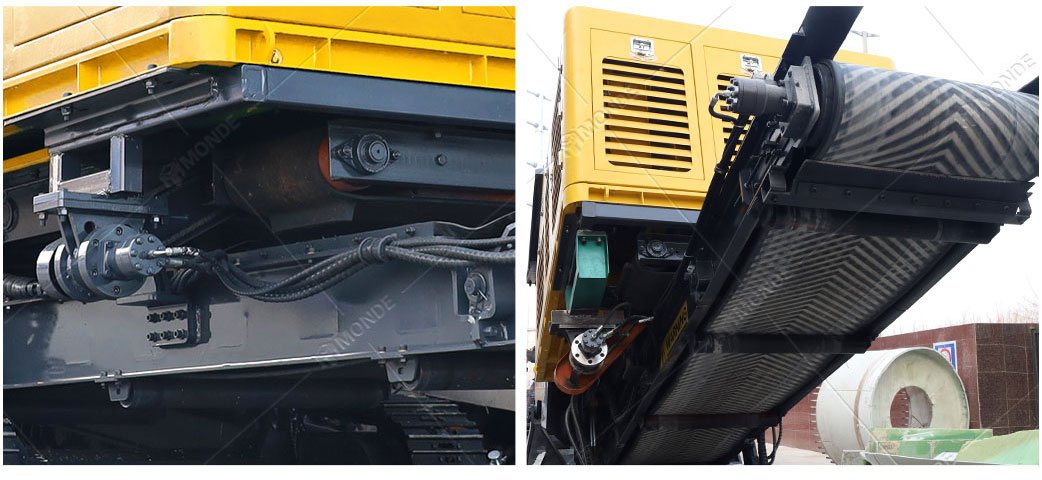

3. Equipped with iron remover device: The equipment has high-intensity magnetic separation function, which can effectively remove iron impurities in the material, reduce production costs and improve production efficiency.



4. Control system: Users can adjust the crushing force, speed and mode according to actual needs to achieve intelligent operation. At the same time, the system also has functions such as overload protection and automatic shutdown, which can respond quickly in abnormal situations to protect the equipment from damage. Ensure the stability and safety of the equipment.

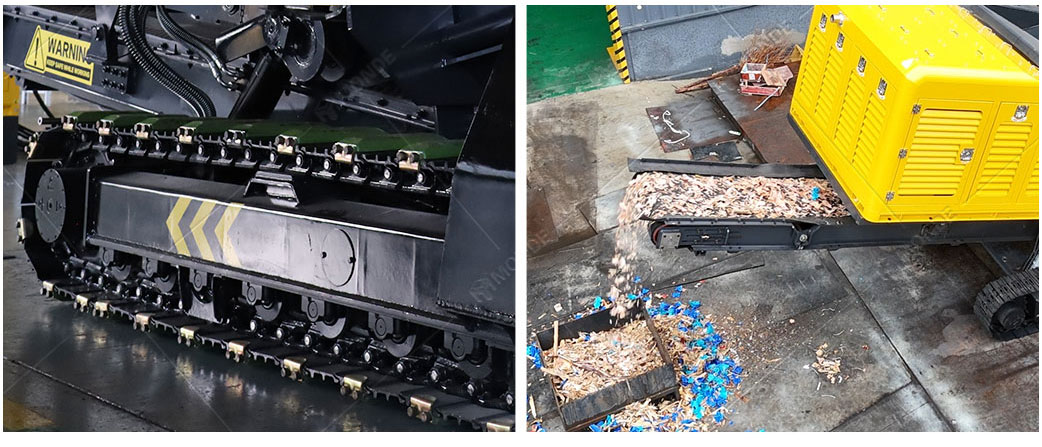

4. Mobility: The crawler mobile chassis gives the equipment excellent mobility, and it can move freely in various terrains and environments without fixed installation, which greatly improves the flexibility and convenience of operations.



5. Recycling: Multifunctional double-shaft shredders are widely used in many fields such as scrap metal recycling, plastic recycling, rubber and waste tire recycling, wood processing, paper recycling and domestic waste treatment, etc., realizing the resource utilization and environmental protection treatment of waste.



DP70 mobile hydraulic double-shaft shredder has an advanced automatic control system, which can shred domestic and commercial garbage; rubber, plastic, waste tires; waste wood, timber; garden waste; paper and cardboard; construction waste, etc.



Company Profile:

Shandong Mingde Machinery Co., Ltd. is a world-renowned enterprise engaged in the research and development, manufacturing, sales and after-sales service of multi-functional attachments, mobile crushers, intelligent robots and other series of products.



Mingde currently has 500+ employees, 60000+ sq meters workshop, 70+ engineers and 200+ equipments with different functions, and 30+ testing and inspection equipment. biggest dealer of SSAB for HARDOX plate in China, also we are HARDOX WEARPARTS global processing center.

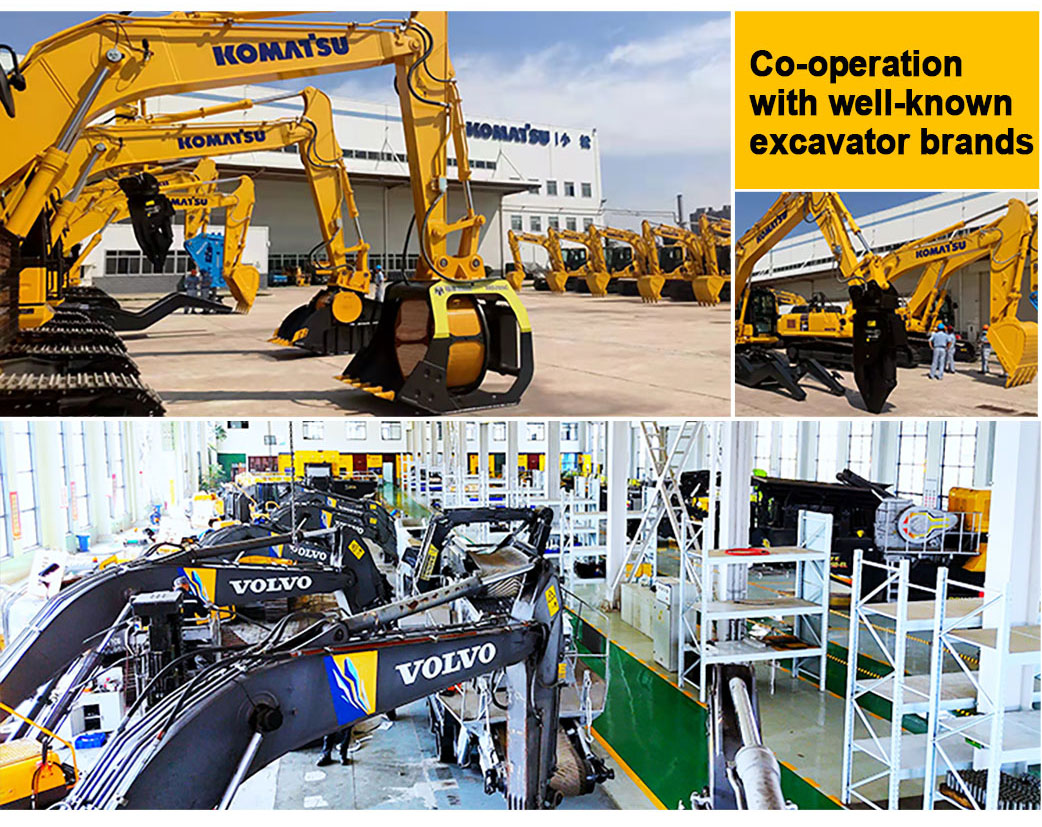

Through years of stable development, Mingde has passed ISO9001 international quality system certification, SGS testing certification, CE European safety certification, ISO14001 environmental management system certification and international welding technology certification. Monde has successfully established close cooperation with several well-know machine equipment companies, such as SHANTUI, Komatsu, JCB, HBXG, SCMMC, etc and supply OEM service for them.

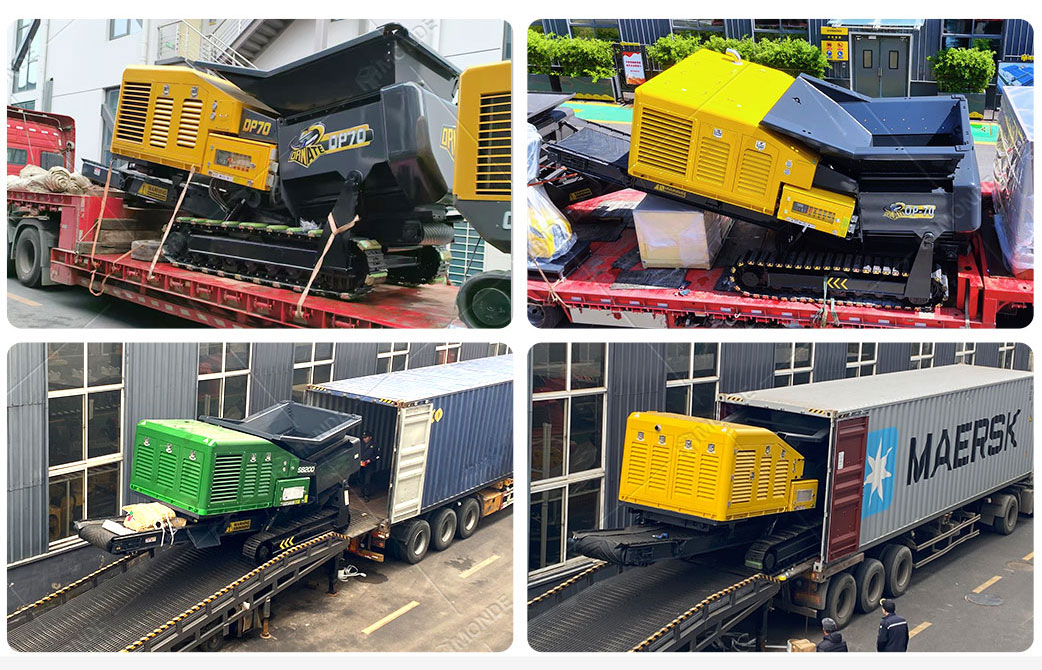

Packaging & Delivery:
