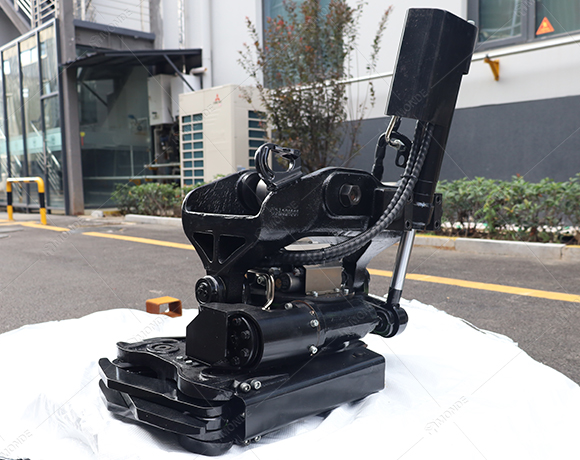

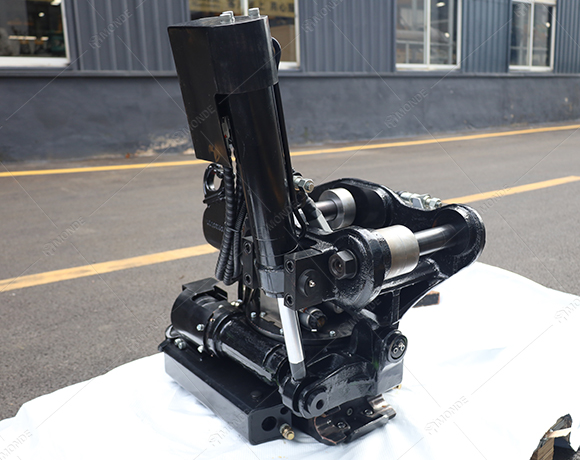

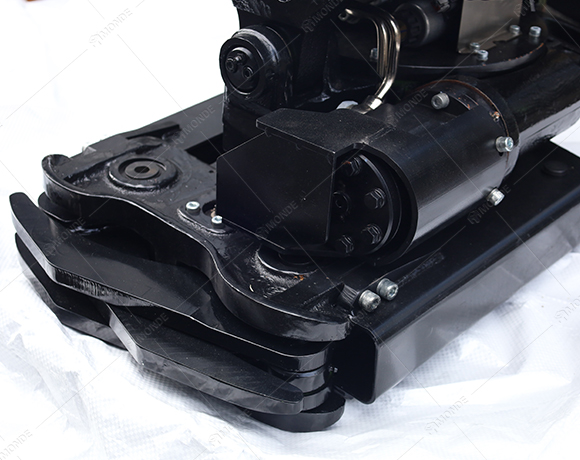

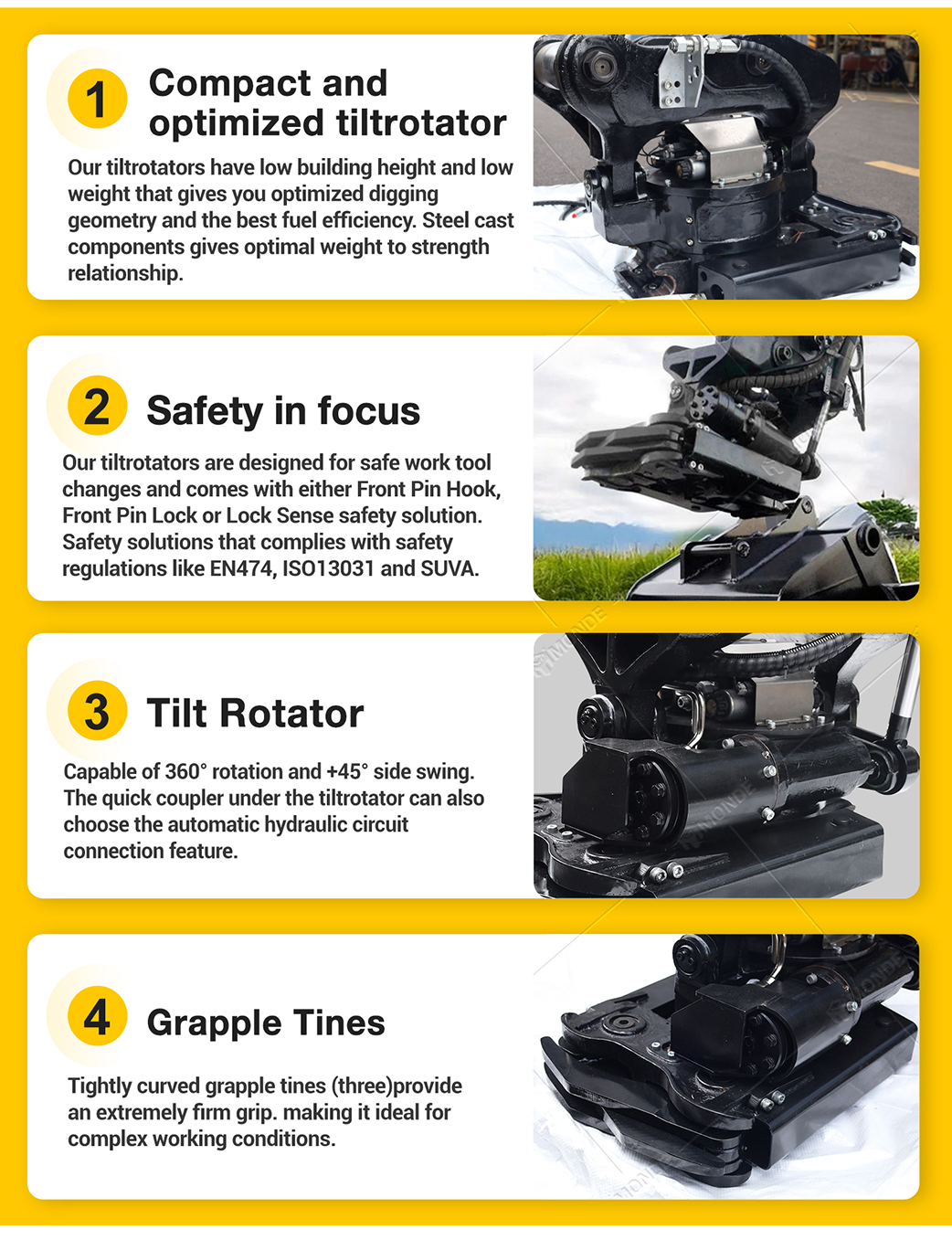

Our tiltrotators are able to rotate 360 degrees and tilt 45 degrees in each direction with top of the class precision and controllability. This allows you to do the same job faster or take on new types of jobs.An integrated gripper on the tilt-rotatorr is an amazing tool that increases your productivity even further.

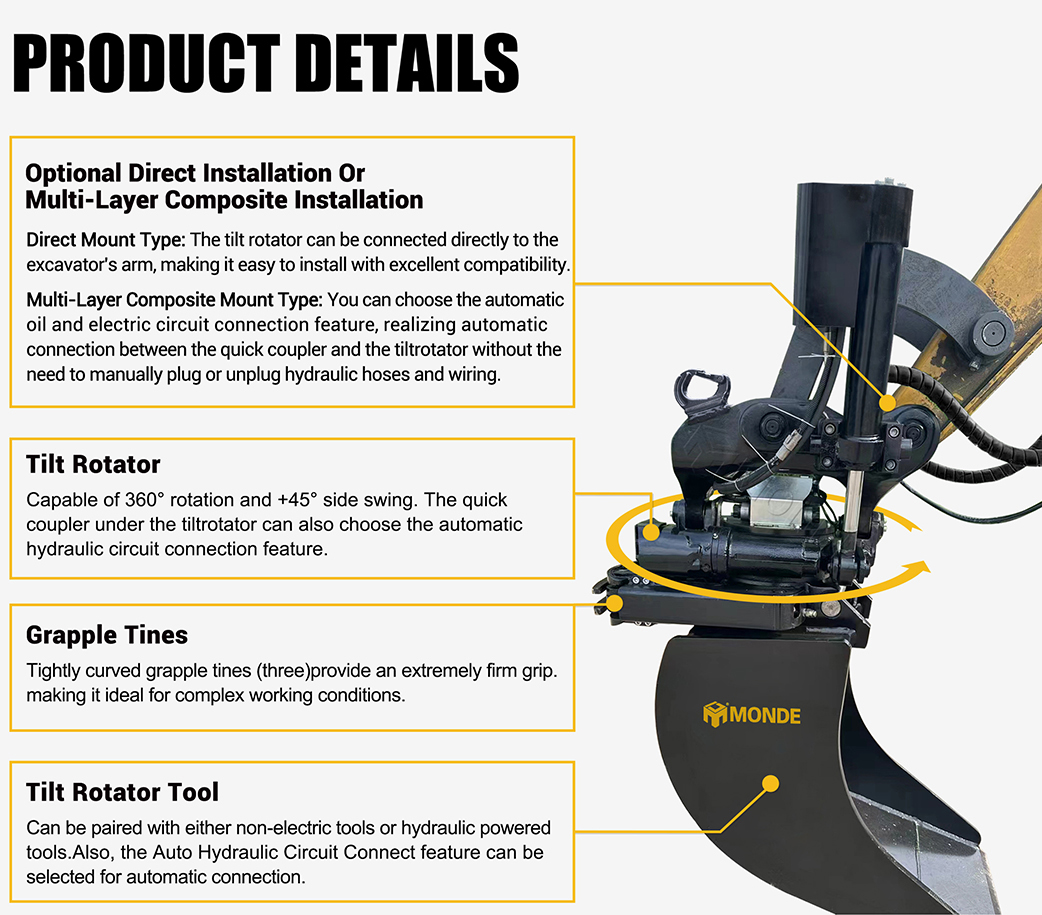

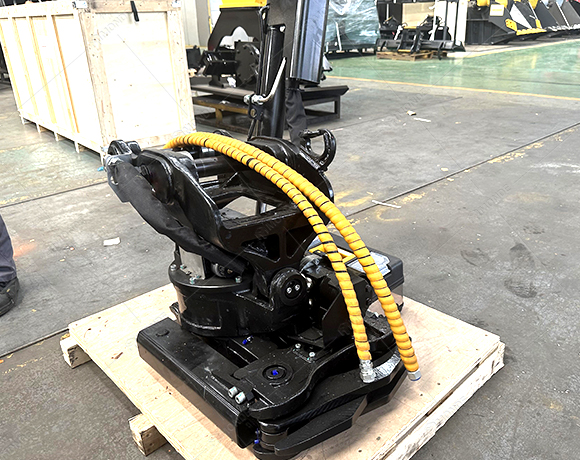

Tilt Rotator Tool

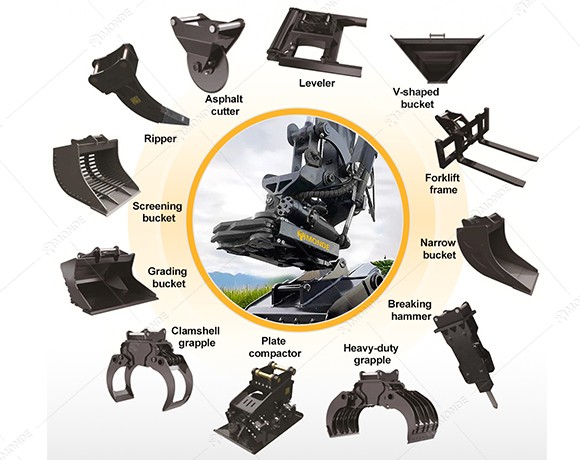

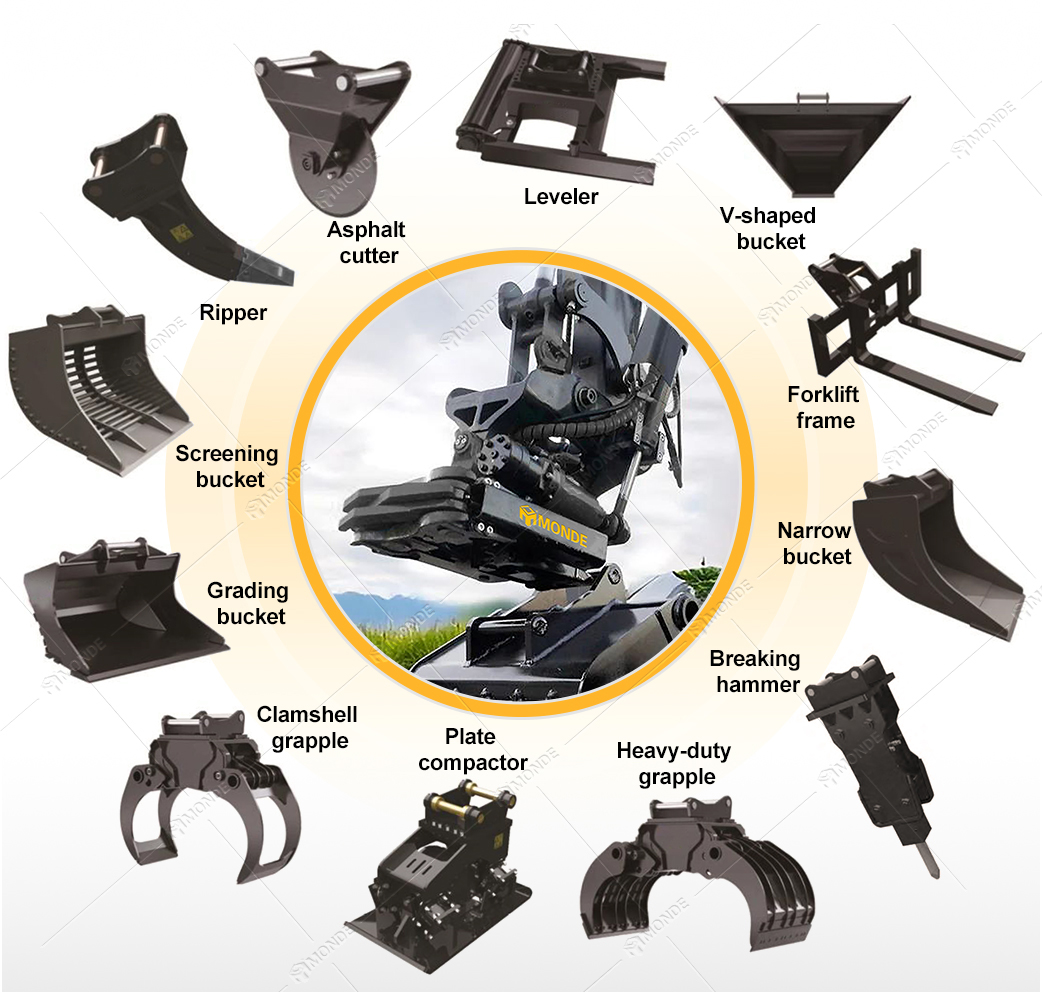

Can be paired with either non-electric tools or hydraulic powered tools. Also, the Auto Hydraulic Circuit Connect feature can be selected for automatic connection.
|
Model |
TRC20 |
TRC40 |
TRC70 |
TRC100 |
TRC150 |
TRC200 |
TRC300 |
|
Compatible Excavator (T) |
1-2 |
2-4 |
5-7 |
7-12 |
12-15 |
18-23 |
26-32 |
|
Upper Pin Diameter (mm) |
25-30 |
30-35 |
40-50 |
55-65 |
60-65 |
70-80 |
80-100 |
|
Upper Pin Spacing (mm) |
80-120 |
100-150 |
150-250 |
200-260 |
220-270 |
300-340 |
360-400 |
|
Upper Pin Center Distance (mm) |
165 |
180-240 |
260-350 |
310-390 |
330-390 |
400-500 |
450-550 |
|
Lower Quick Coupler Pin Diameter (mm) |
30 |
35 |
40 |
50 |
60 |
70 |
80 |
|
Lower Quick Coupler Spacing (mm) |
/ |
160 |
200 |
240 |
265 |
325 |
400 |
|
Lower Quick Coupler Center Distance (mm) |
/ |
240 |
305 |
350 |
405 |
425 |
520 |
|
Maximum Tilt Angle (°) |
±45 |
±45 |
±45 |
±45 |
±45 |
±45 |
±45 |
|
Flow Rate (l/min) |
14-28 |
18-38 |
18-38 |
70-90 |
80-100 |
100-120 |
140-180 |
|
Maximum Working Pressure (bar) |
180 |
210 |
220 |
210 |
220 |
220 |
220 |
|
Tilting Torque (KNM) |
3.9 |
10.6 |
15 |
29 |
43 |
62 |
75 |
|
Rotating Torque (KNM) |
2 |
4.9 |
6.5 |
5.4 |
7.8 |
8.8 |
9.8 |
|
Weight (kg) |
65 |
125 |
275 |
350 |
600 |
680 |
819 |
Product Application

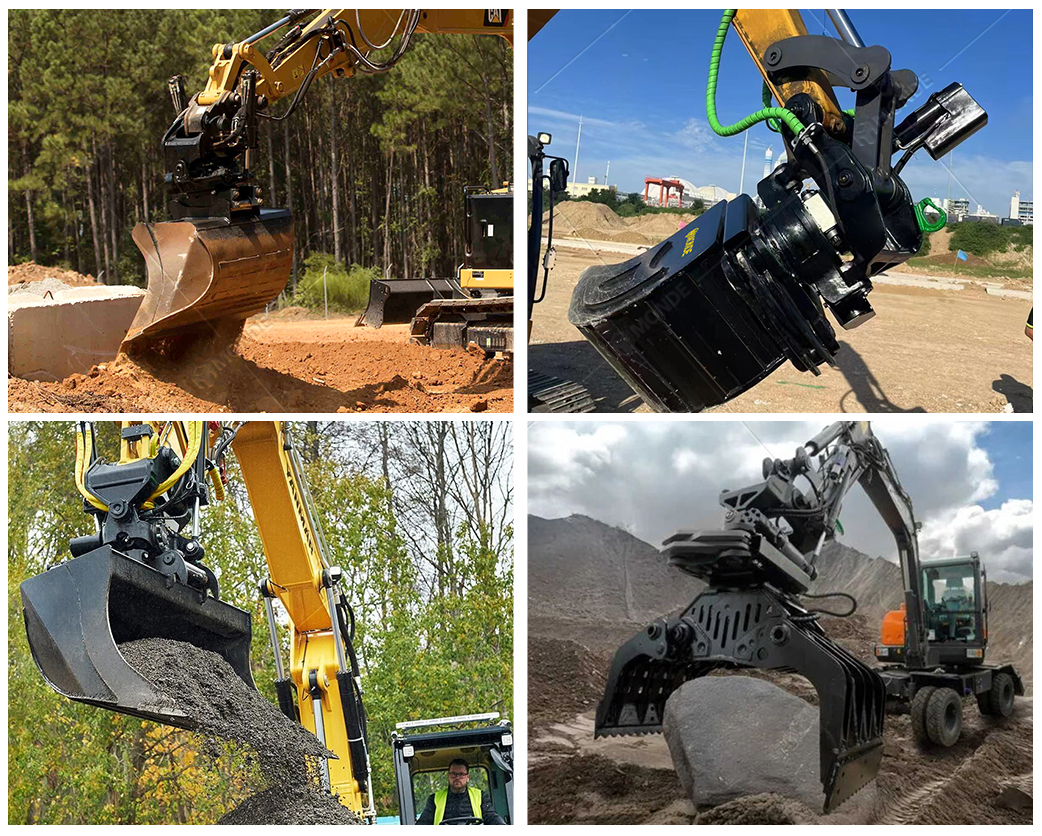

A tiltrotator on the excavator is perfect for a wide range of applications, such as construction sites, road construction, in utility work, cable laying and landscaping. With a 45° tilt angle and 360° rotation the tiltrotator allows the operator to perform numerous tasks without having to change the excavator’s position. The tiltrotator is used to position the work tool by combining a tilting and a rotary movement. Excellent for work in narrow spaces. Experienced tiltrotator operators usually estimate the productivity improvement to between 20 and 35 percent depending on the type of job, truly unlocking the excavator’s efficiency.
Shandong Mingde Machinery Co., Ltd. is a world-renowned enterprise engaged in the research and development, manufacturing, sales and after-sales service of multi-functional attachments, mobile crushers, intelligent robots and other series of products.

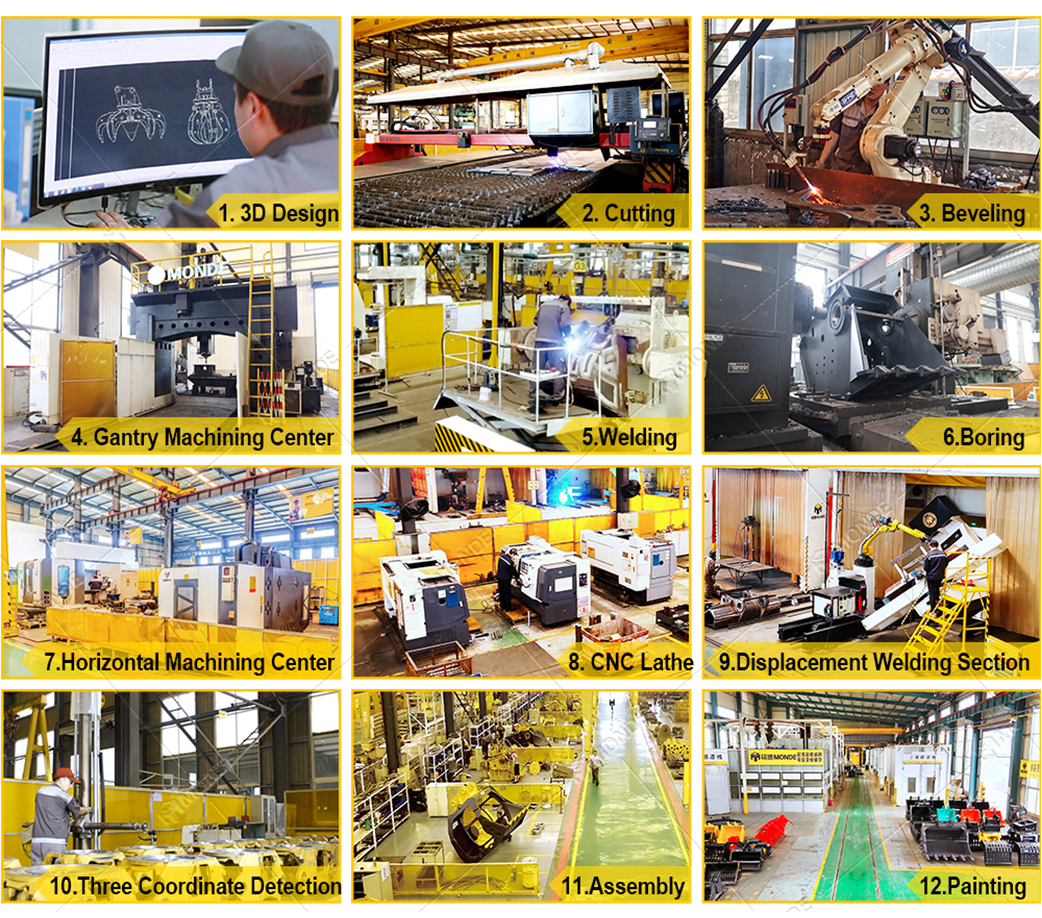

Mingde currently has 500+ employees, 60000+ sq meters workshop, 70+ engineers and 200+ equipments with different functions, and 30+ testing and inspection equipment. biggest dealer of SSAB for HARDOX plate in China, also we are HARDOX WEARPARTS global processing center.

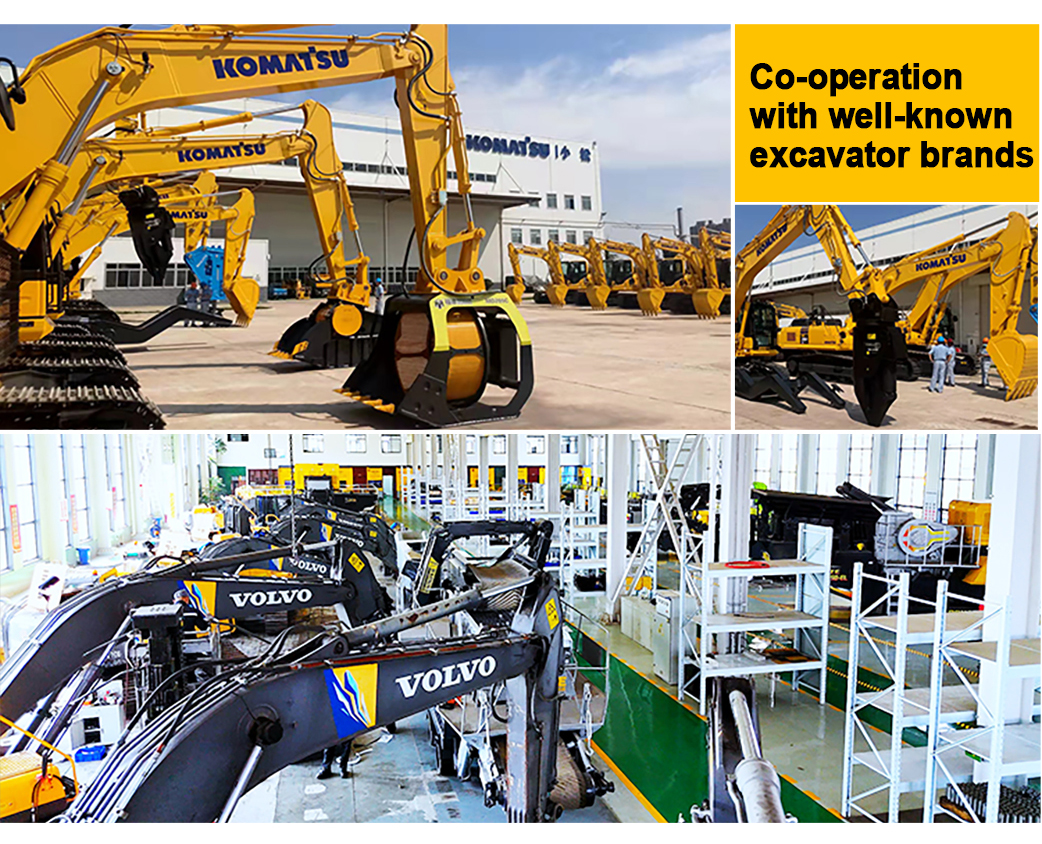

Through years of stable development, Mingde has passed ISO9001 international quality system certification, SGS testing certification, CE European safety certification, ISO14001 environmental management system certification and international welding technology certification. Monde has successfully established close cooperation with several well-know machine equipment companies, such as SHANTUI, Komatsu, JCB, HBXG, SCMMC, etc and supply OEM service for them.
1.We pack the products by simple pallet or case which is seaworthy.
2.Fast delivery time:5-7 days for small quantity, and 20-30 days for container quantity.
3.We have a team specialized in packing and loading container, they have rich experience,and can load the max quantity products,which can help customer save the ocean freight.

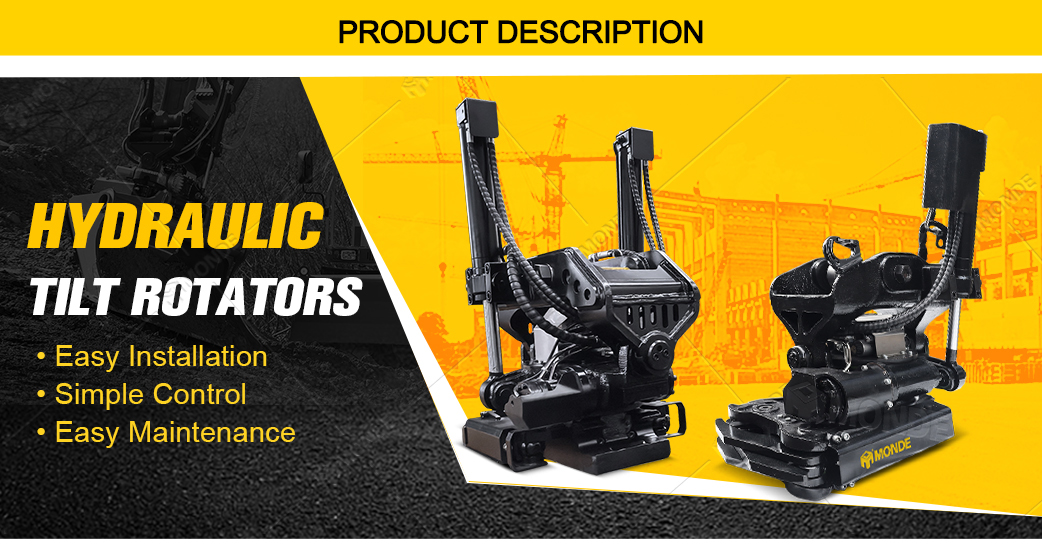

Hydraulic Tilt Rotators
