La desbrozadora de martillos para excavadora es una herramienta mecánica para recortar grandes extensiones de vegetación seca. El eje de salida del motor hidráulico está equipado con una cuchilla. La cuchilla utiliza la rotación del motor hidráulico para cortar, lo que ahorra tiempo a los operarios y reduce considerablemente la mano de obra.
|
Model |
GCJ30 |
GCJ50 |
GCJ120 |
GCJ200 |
|
Apply To (T) |
2-4 |
5-8 |
10-15 |
18-22 |
|
Number of blades |
24/12 |
36/18 |
36/18 |
56/28 |
|
Cutting width (mm) |
631 |
931 |
931 |
1431 |
|
Cutting height (mm) |
460 |
460 |
545 |
547 |
|
Oil flow (L/min) |
15-20 |
20-25 |
55-60 |
50-60 |
|
Working pressure (Mpa) |
18 |
20 |
22 |
25 |
|
Rotating speed (rpm) |
1500 |
1600 |
1800 |
1800 |
|
Size (mm) |
1073*620*631 |
1373*620*631 |
1451*820*676 |
1951*820*676 |
|
Weight(kg) |
270 |
350 |
560 |
660 |
|
Características Eje de corte de precisión El eje de corte equilibrado por láser proporciona una potencia totalmente controlada, garantizando una rotación suave y un corte eficiente. |
Método de corte único: Utiliza cuchillas articuladas en forma de Y o T de alta velocidad. Ideal para limpiar terrenos difíciles con maleza y gran cantidad de escombros. |
|
Mayor seguridad: Las cuchillas son articuladas y el espacio de trabajo suele estar diseñado de forma cerrada. Al girar a alta velocidad, permite controlar eficazmente el material de corte dentro de la cabina. |
Placa de montaje: El soporte utiliza una placa de montaje fijada con pernos para una fácil instalación. |
Shandong Mingde Machinery Co., Ltd. is a world-renowned enterprise engaged in the research and development, manufacturing, sales and after-sales service of multi-functional attachments, mobile crushers, intelligent robots and other series of products.
Mingde currently has 500+ employees, 60000+ sq meters workshop, 70+ engineers and 200+ equipments with different functions, and 30+ testing and inspection equipment. biggest dealer of SSAB for HARDOX plate in China, also we are HARDOX WEARPARTS global processing center.
Through years of stable development, Mingde has passed ISO9001 international quality system certification, SGS testing certification, CE European safety certification, ISO14001 environmental management system certification and international welding technology certification. Monde has successfully established close cooperation with several well-know machine equipment companies, such as SHANTUI, Komatsu, JCB, HBXG, SCMMC, etc and supply OEM service for them.
Packaging & Delivery：
1.We pack the products by simple pallet or case which is seaworthy.
2.Fast delivery time:5-7 days for small quantity, and 20-30 days for container quantity.
3.We have a team specialized in packing and loading container, they have rich experience,and can load the max quantity products,which can help customer save the ocean freight.

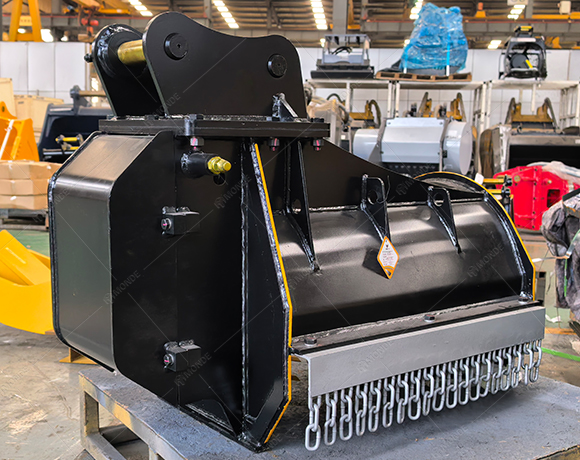

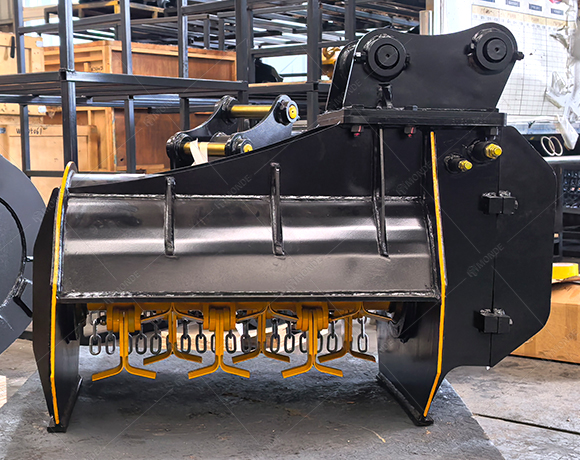

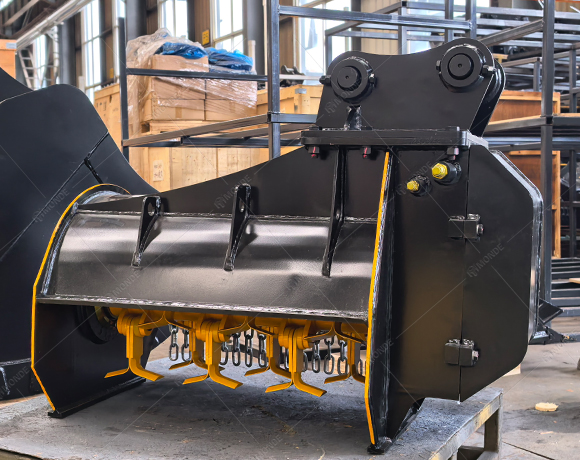

Desbrozadora para excavadora
