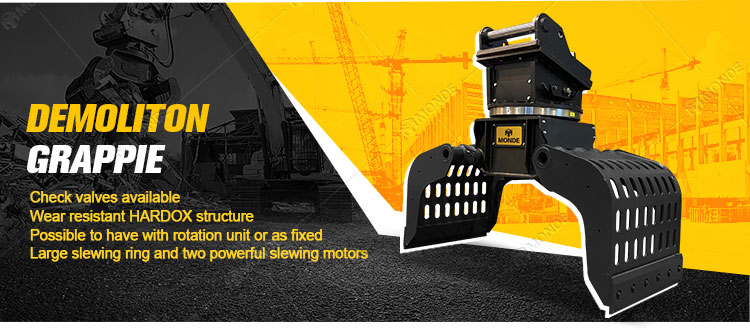

Hydraulic Demolition Grapple

REQUEST A QUOTE

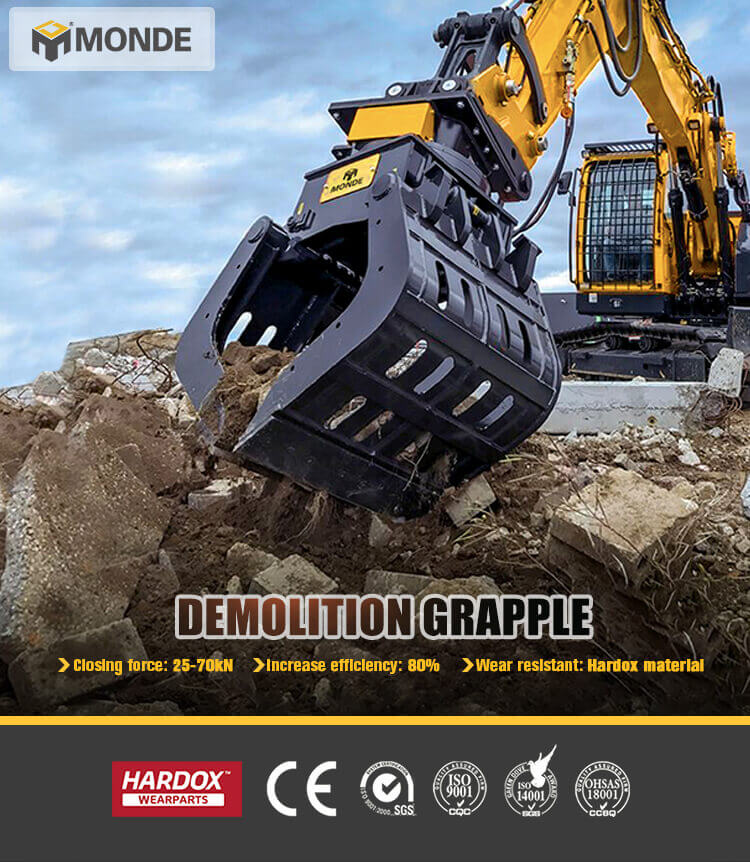

Demolition & Sorting Grapples are designed for fast, productive material handling. Capable of high-volume, production loading and precise sorting, they enhance the productivity and efficiency of your operation. The grapples can handle anything from primary and secondary demolition to recycling to get the job done.
  • PARAMETER

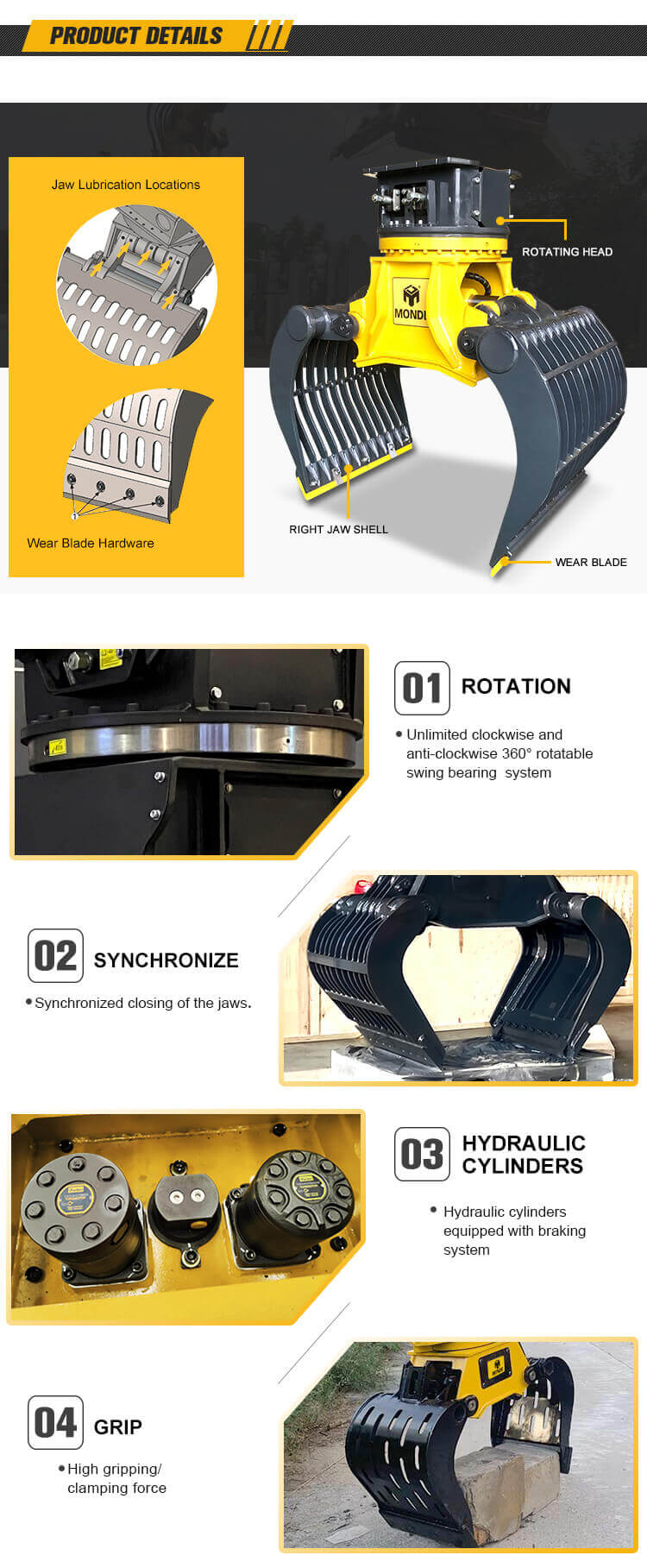

  • DRAWINGS/DETAILS/ADVANTAGES
  • CONSTRUCTION SITE

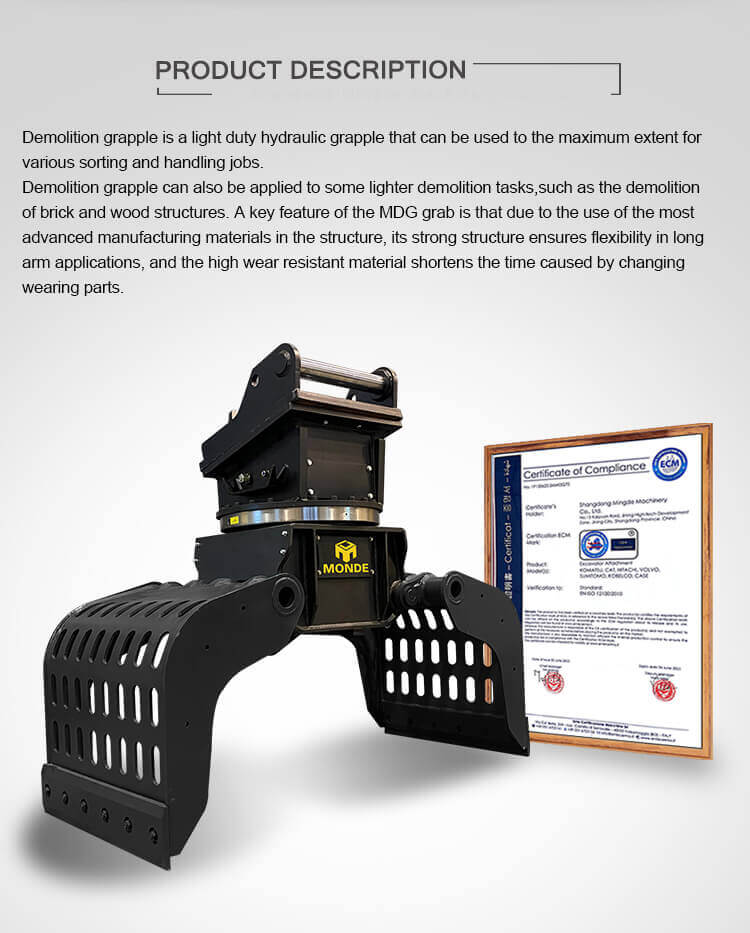

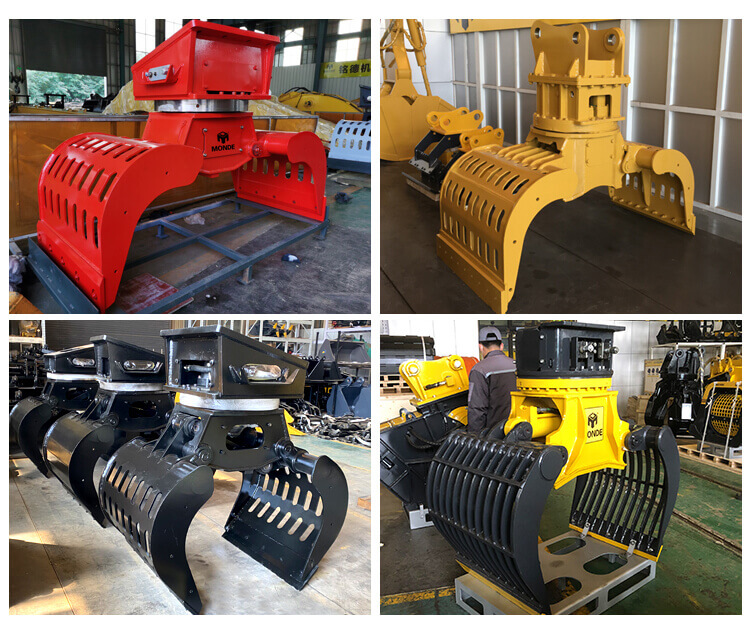

Demolition grapple is a light duty hydraulic grapple that can be used to the maximum extent for various sorting and handling jobs.

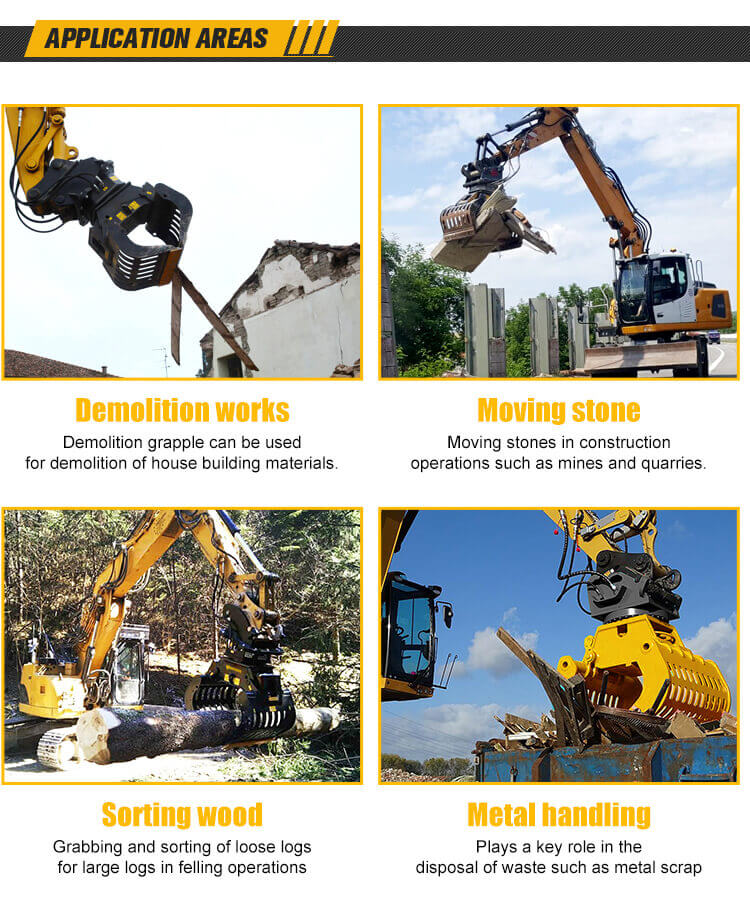

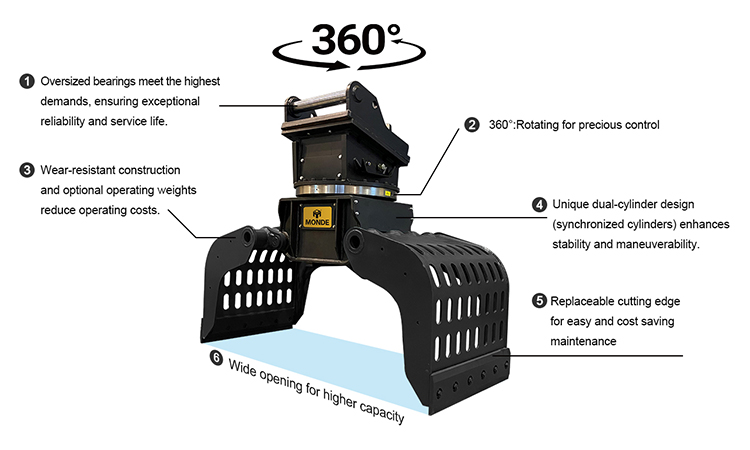

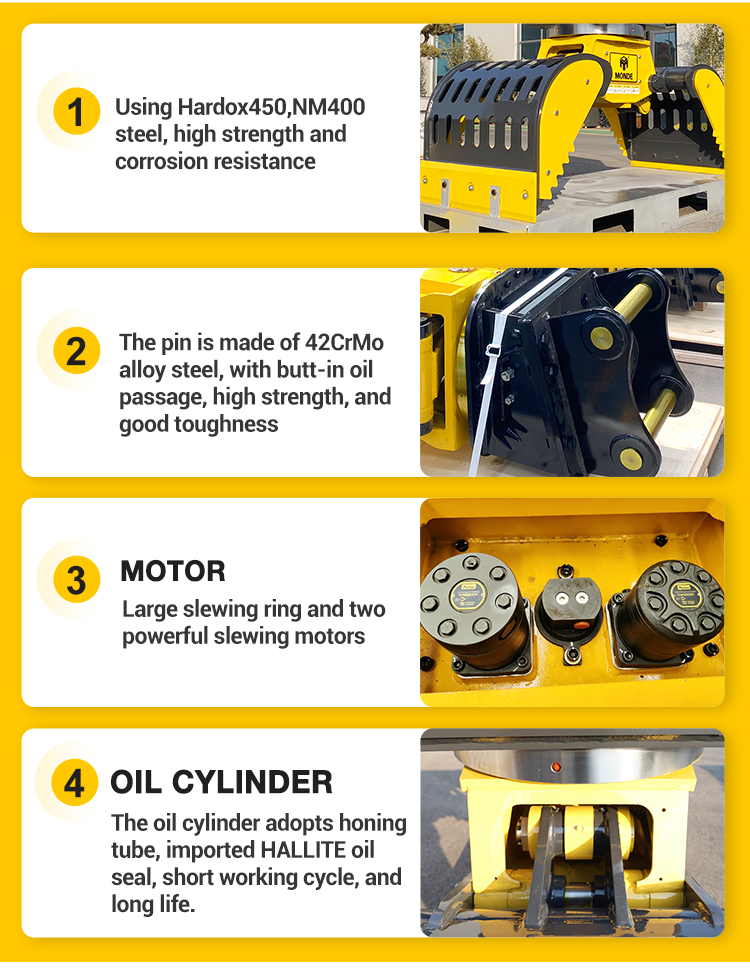

Demolition grapple can also be applied to some lighter demolition tasks,such as the demolition of brick and wood structures. A key feature of the MDG grab is that due to the use of the most advanced manufacturing materials in the structure, its strong structure ensures flexibility in long arm applications, and the high wear resistant material shortens the time caused by changing wearing parts.

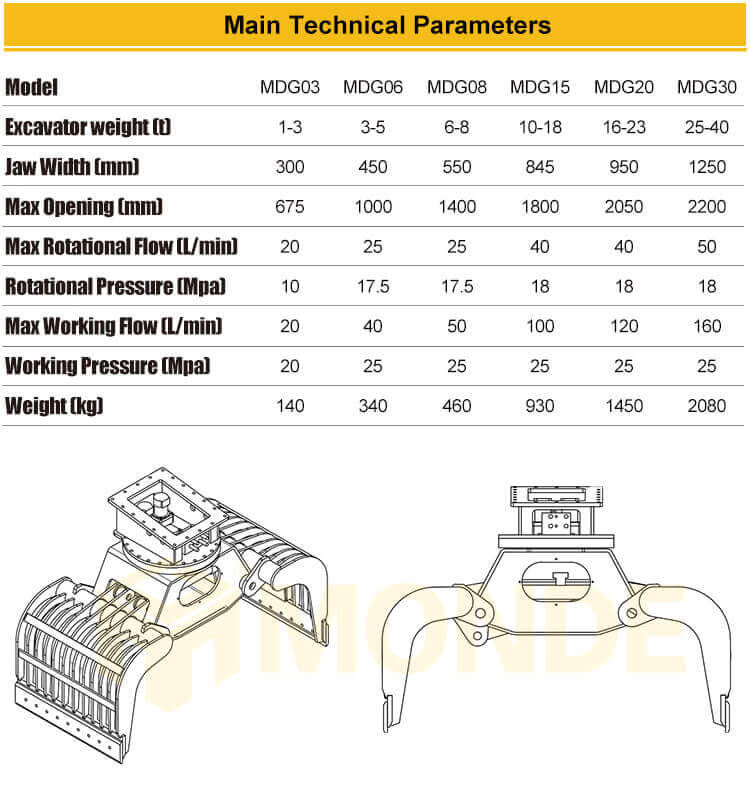

Model

MDG03

MDG06

MDG08

MDG15

MDG20

MDG30

Excavator weight (t)

1-3

3-5

6-8

10-18

16-23

25-40

Jaw Width (mm)

300

450

550

845

940

1250

Max Opening (mm)

675

1007

1427

1880

2125

2255

Rotational Flow (L/min)

15-18

15-19

15-20

25-30

30-45

30-45

Rotational Pressure (Mpa)

10-12

12-14

12-14

10-12

12-14

12-14

Working Flow (L/min)

30-35

35-40

45-50

100-120

160-180

180-200

Working Pressure (Mpa)

16-18

18-20

18-20

18-20

20-22

20-22

Weight (kg)

140

340

460

980

1280

2080






Company Profile：

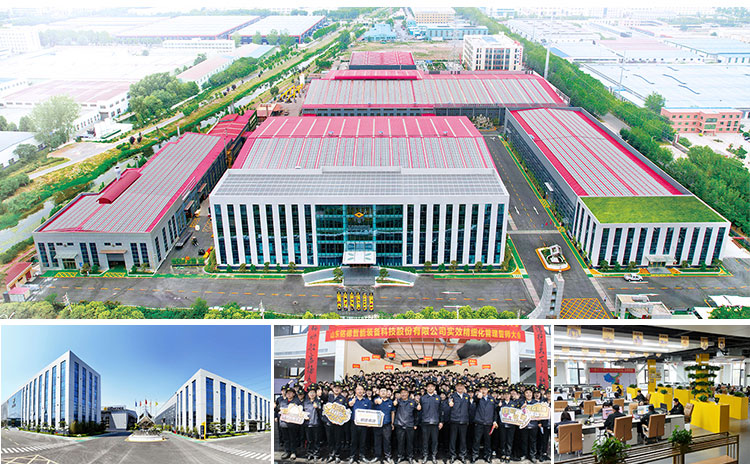

Shandong Mingde Machinery Co., Ltd. is a world-renowned enterprise engaged in the research and development, manufacturing, sales and after-sales service of multi-functional attachments, mobile crushers, intelligent robots and other series of products.



Mingde currently has 500+ employees, 60000+ sq meters workshop, 70+ engineers and 200+ equipments with different functions, and 30+ testing and inspection equipment. biggest dealer of SSAB for HARDOX plate in China, also we are HARDOX WEARPARTS global processing center.



Through years of stable development, Mingde has passed ISO9001 international quality system certification, SGS testing certification, CE European safety certification, ISO14001 environmental management system certification and international welding technology certification. Monde has successfully established close cooperation with several well-know machine equipment companies, such as SHANTUI, Komatsu, JCB, HBXG, SCMMC, etc and supply OEM service for them.



Packaging & Delivery：

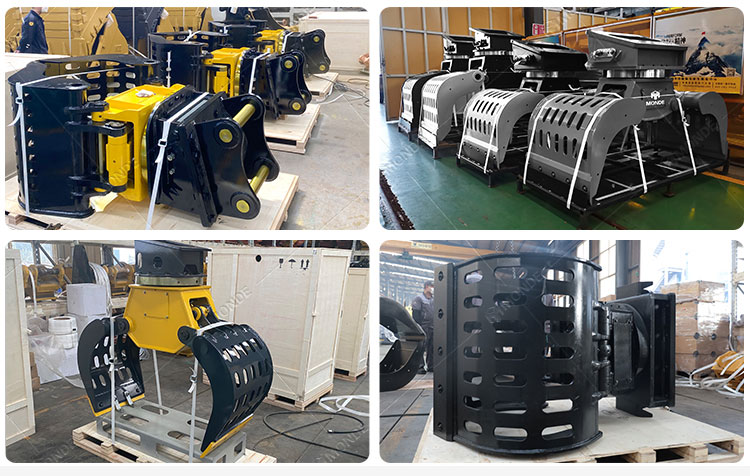

1.We pack the products by simple pallet or case which is seaworthy.

2.Fast delivery time:5-7 days for small quantity, and 20-30 days for container quantity.

3.We have a team specialized in packing and loading container, they have rich experience,and can load the max quantity products,which can help customer save the ocean freight.
